Description

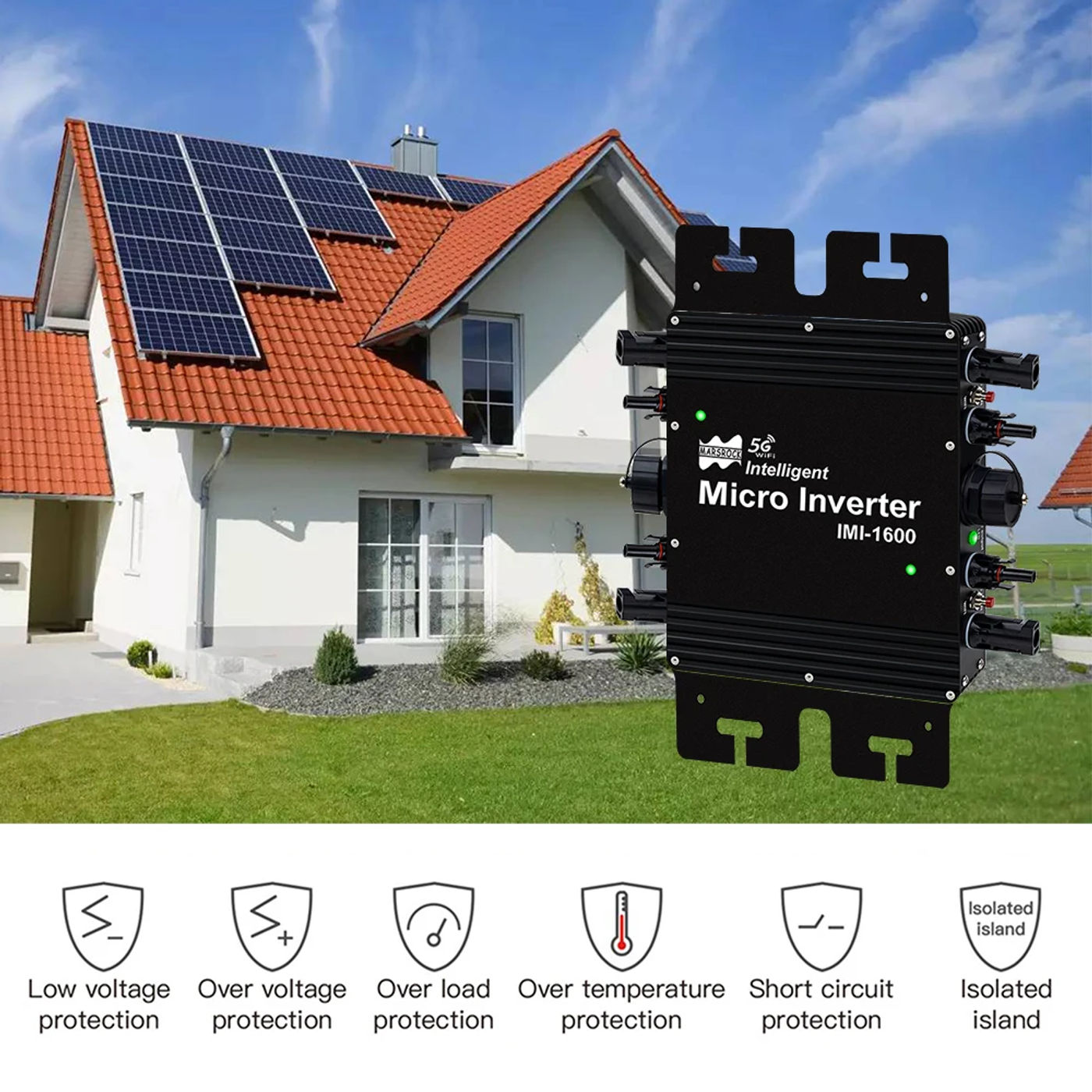

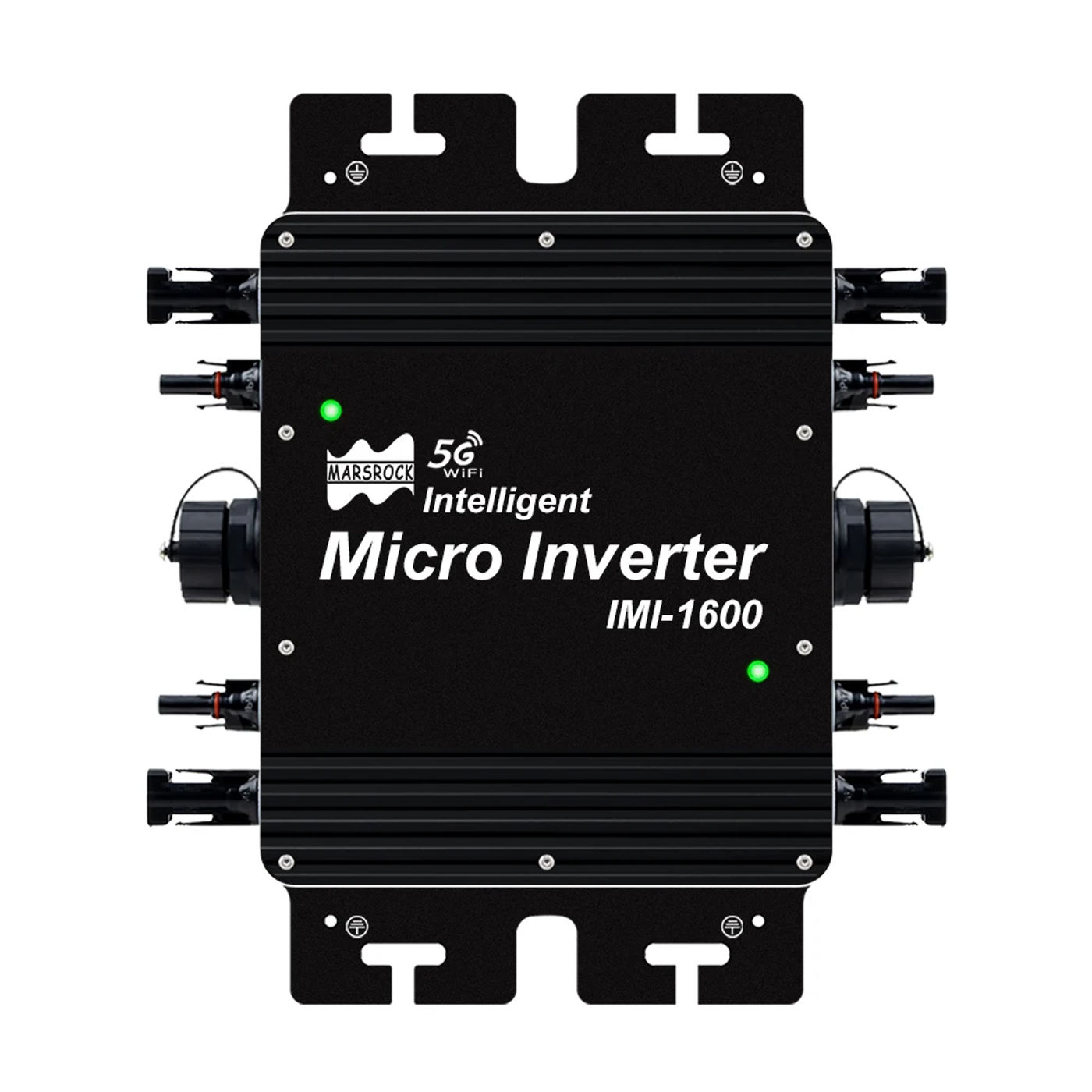

• PRODUCT INTRODUCTION IMI collection inverter Using IP65 water-resistant streamline design which efficiently stop rainwater at the floor erosion, built-in high-perfor_x001F_mance most power level tracking MPPT operate higher ready to track chang_x001F_es in the photo voltaic luminosity and management diverse output power, efficiently capture and collect sunlight AC electrical power transmission using the reverse transmis_x001F_sion technology, The inverter output power can provide load precedence use, extra electricity to the grid, efficient use of the inverter to the ability emitted, electricity transmission charge of up to 99% The convenient way to instantly scan the QR code to connect with the network is a significant feature of it, allowing non-professional customers to watch the flexibility generation system records in real time through a smartphone PRODUCT FEATURES 1 Series adopt scanning the QR code to connect to information superhighway which is straightforward to be operated via Smart Phone APP or PC to monitor power system data 2 inverter utilizing IP65 waterproof streamline design, which can effectively forestall rainwater on surface erosion three high functionality maximum strength point tracking function, can track changes in the solar luminosity and control assorted output power, efficiently capture and assemble daylight and use of the inverter to the power emitted, electricity transmission fee of as much as 99% 4 precision section detection;Over and below voltage protection; Over and beneath frequency protection; Islanding protection five installation The PV enter energy workable from 250-450W DC input 20-50V design can appropriate for 36Cells, 60 cells, 72 cells put into in sequence or in parallel PRODUCT PARAMETER Model 800W 1600W Input Data Recommend PV 250~400W*2 250~400W*4 Operation voltage 20~50V(MPPT:22V~48V) 20~50V(MPPT:22V~48V) Reccommend PV Voc 33-50V 33-50V Star/Max enter voltage 18V/52V 18V/52V Max input current 13A*2 7*4 Output Data Max Output Power 800W 1600W Rated output recent @120VAC 5A;@230VAC 2 @120VAC 5A;@230VAC 2 Rated voltage @120V(80~160VAC); @230V(180~270VAC) @120V(90~160VAC); @230V(190~270VAC) Max items in line with branch @120V: 5PCS;@230V:10PCS @120V: 2PCS;@230V:4PCS Rrequency 50/60Hz(48~61Hz) 50/60Hz(48~61Hz) Output Efficiency Static MPPT zero zero Power component >99% >99% Max output zero zero Self intake <1W <1W THD <5% <5% Exterior Ambient temperature - 40℃to + 85℃ - 40℃to + 85℃ Operating temperature - 40℃to + 65℃ - 40℃to + 65℃ Dimensions（L×W×H) 230x200x40mm 365x230x40mm Weight 2 3 Waterproof Rating IP65 IP65 Max current of AC bus cable 20A 20A Cooling Self-cooling Self-cooling Feature Power transmission mode Reverse transfer, load priority Reverse transfer, load precedence Communication WIFI(QR code scanning, automatic matching internet) WIFI(QR code scanning, computerized matching internet) Design High frequency transformer, Glvanically isolated High frequency transformer, Glvanically remoted Equipment ground is supplied by the PE within the AC cable Protection Electromagnetic compatibility EN50081 EN50081 Grid disturbance EN61000-3-2 Safety EN62109 EN61000-3-2 Safety EN62109 Grid detection DIN VDE 1026 UL1741 DIN VDE 1026 UL1741 Certificate CE，RoHs, FCC CE，RoHs, FCC PRODUCT DETAILS PRODUCT LINE

•
•
•
•
•
