Description

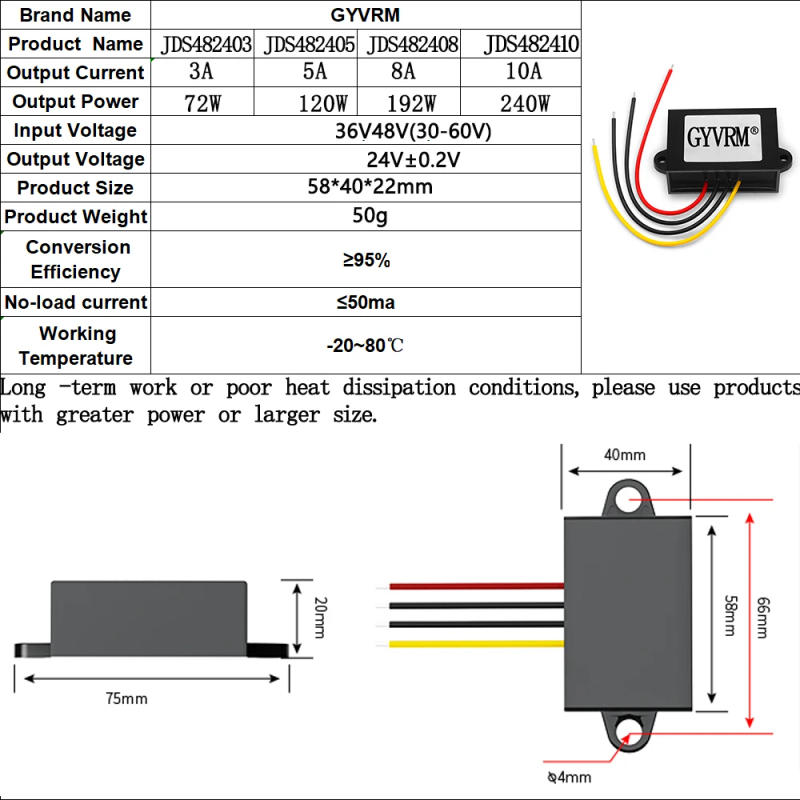

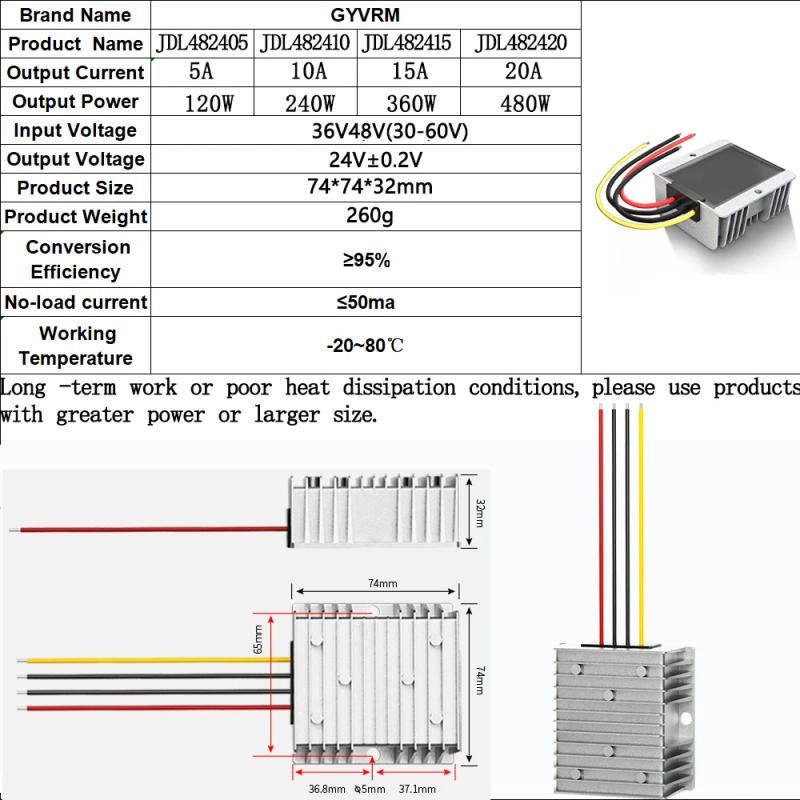

• Product parameters DC-DC 36V48V TO 24V 1-2A DC-DC 36V48V TO 24V 3-8A DC-DC 36V48V TO 24V 5-8A DC-DC 36V48V TO 24V 5-20A DC-DC 36V48V TO 24V 20-30A Instructions ApplicationsWide vary of applications: Industrial automation control Research equipment, LED lighting, business control equipment, car equipment, strength equipment, instrumentation equipment, clinical equipment, refrigeration empty purifier,Electronic refrigerator, liquid crystal display, LED display, audiovisual product, security imported laptop chassis, electronic products and various instruments and different fields。ABOUT USUser&;s ManualThe 36V48V battery voltage is switched over to a 24V DC voltage (Uncertain installations, please touch our corporation earlier than installation)！！！Long-term use can't be completely loaded, please minimize strength or desire more powerful products, best 50% of utmost strength Make yes that all the polarity is correct, and the anti-negative conversion converter (except for enter tape opposite protection)2 Make sure the cable is natural copper wire, the enter and output cables can not exceed 2 meters, and the output will be eliminated by way of greater than 2 meters The voltage can be reflected If the road is extended, you should expand the road diameter in line with the corresponding a number of The cable ought to be connected to the thread, please talk to the wire diameter size and securely related The enter terminal is needed to connect the fuse or air switch, and also you need to select the corresponding fuse or switch] (except the enter belt fuse)5 Make sure the battery potential is massive enough to produce ample calories If the input calories isn't enough, the voltage may be reduced Make sure the installation surroundings is easily ventilated, so as not to preserve over temperature protection, restrict recent output7 Cannot join directly to photo voltaic panels or wind wind turbines8 Non-charged units can't be charged battery and lithium batteries9 When connecting the input examine with DC power supply, the enter shouldn't exceed the voltage differ of the battery, and no overvoltage defense (can be customized) step (four lines or 4 / five terminals)1 Turn off all strength materials and load switches2 Before the wiring, eavesdrop on all fine and unfavourable poles3 Connection (OUTPUT-) to load negative, connection (OUTPUT +) to load positive4 Connect the fuse or air swap to (Input +) input the superb cable, then connect (Input +) to the battery positive, join (Input-) to the battery unfavourable electrode5 Make yes all nice and adverse connections are correct (do not reverse, opposite the burnback converter), activate the ability and cargo switch(Note: If the ACC port is connected, join the ACC to the ignition switch: If you do not need to use the ACC function, connect the ACC to the (Input +) battery "positive)troubleshooting1 Output no voltage, please check if all traces are connected firm, the battery is enough, whether the fuse is burning Output the voltage, verify if the load beginning recent is simply too large, the ventilation is good, whether or not the outer casing is heated, whether or not the cable and the thread are selected and installed, whether it is less than 2 meters, and the enter battery has sufficient calories

•
•
•
•
•
