Description

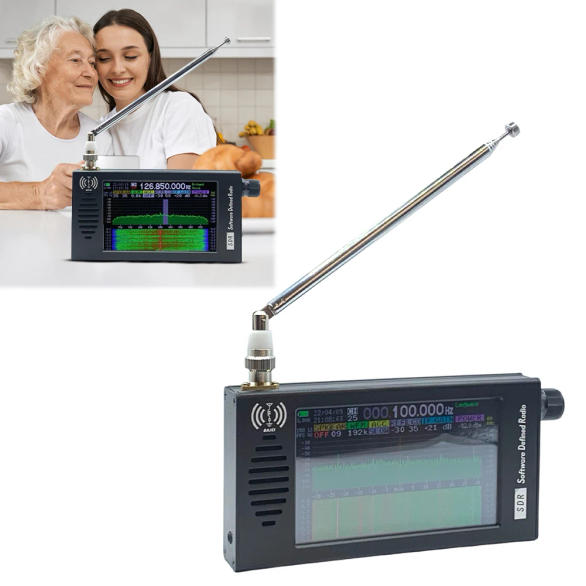

• DSP SDR Radio Receiver Shortwave AM FM DSP Radio 4 Inch Touch Screen Stereo MP3 Player with Headphone Antenna Jack for Outdoor Features: 1 Advanced DSP Technology: This portable DSP SDR radio receiver makes use of a software-defined radio structure with a 192kHz extensive spectrum and waterfall reveal features With 16-bit sampling, it helps CW, AM, SSB, FM, and WFM demodulation, providing flexible listening solutions for radio fans 2 Exceptional Reception Quality: Equipped with a magnificent DSP chip and a long telescopic antenna, this shortwave radio receiver delivers best sign quality It effectively captures a variety of channels with out interference, making certain a clear and reliable listening journey three High-Resolution LCD Display: Housed in a robust aluminum alloy CNC casing, the transportable shortwave radio incorporates a 4 high-brightness IPS LCD exhibit with 800x480 resolution This display gives clear visuals and simple navigation in the course of the radio&;s facets and settings 4 Compact and Headphone-Compatible: With dimensions of 14x7, this shortwave AM FM DSP radio is highly transportable and straightforward to carry It helps standard three headphones or CTIA (US standard) interface headphones, taking into consideration inner most listening anyplace you pass five Long Battery Life: The stereo MP3 player&;s built-in 5000mAh 3 battery gives roughly 10 to twelve hours of usage, reckoning on quantity and brightness settings This ensures extended listening classes with out frequent recharging, very best for on-the-go use Specification: Origin: Mainland China Description: This product is based at the Tayloe orthogonal product detector method to achieve frequency mixing The clock generator Si5351 generates two variable frequency orthogonal sq. wave indicators as excitation, understanding an ultra-low noise ZIF zero intermediate frequency receiver The IQ signal acquired after mixing is output to the CODEC, collected by means of the MCU, and the DSP set of rules completes the sign demodulation and demonstrate Parameters: -Project Type: DSP SDR Radio Receiver -Material: Aluminum Alloy -Display Technology: 4 IPS 800x480 resolution DC dimming high brightness LCD display -Control method: resistive touch screen, rotary encoder -Channel selection: 1-99 -Frequency: 100K to 149MHz, minimum step 1HZ -Speaker quantity (SPK): 0-35dB, 1dB step -Headphone quantity (EAR): 0-35dB, 1dB step -Modulation mode: CW, LSB, USB, AM, WFM, STE (FM stereo), I Q -AGC settings: Off, Slow, Medium, Fast -Reference level (REF): -99 to 99dB, 1dB step -IF gain: -12 to 67dB, 1dB step -Spectrum style settings: Green complementary, Green line, Blue complementary, White line -Spectrum bandwidth: RF spectrum (192kHz, 128kHz, 64kHz); Audio spectrum (64kHz) -Waterfall discipline settings: Waterfall or waveform (amplitude x1 x8 x64) -Five items that can not be chosen through the encoder: A Battery point demonstrate B Date and time settings C Station news display: Preset station name operate D Display current spectrum width E Input (POWER) antenna port POWER display -Working mode: Single sideband CW, AM, SSB (LSB USB), WFM, Stereo FM (headphones required) -Step frequency: 1Hz 10Hz 100Hz 1kHz 10kHz 100kHz 1MHz 10MHz -Spectrum bandwidth: 192kHz, 128kHz, 64kHz, FFT real-time spectrum show -Antenna interface: BNC male, impedance 50Ω, most enter energy -20dBm -Reference crystal oscillator: TCXO 26MHz±0 Audio interface: Supports steady 3 headphone or CTIA (US standard) headphone interface -Speaker power: Maximum 3W, multimedia speaker 4Ω -Charging port: USB Type C, 5 2A -Current consumption: About 250mA at 5V -Battery capacity: 5000mAh 3 (built-in) -Use time: About 10-12 hours, reckoning on the volume and brightness settings of the mechanical device -Channel saving: ninety nine channels can be preset, and the station name, frequency and alignment system would be preset Product size: About 140/ 5 Note: Due to different computer screen settings and lighting fixtures conditions, the particular colour of the object may perhaps fluctuate slightly from the pictures Thanks on your understanding! Please enable a 1-2 cm distinction in measurements thanks to handbook measuring 1x Radio Receiver

•
•
•
•
•
