Description

  • Hantek oscilloscope AC/DC Current Clamp probe CC-65 CC-650 20KHz/400Hz Bandwidth 1mV/10mA 65A/650A with BNC plug AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A; It is a transducer which permits your multimeter to measure current information and allow your oscilloscope to measure the present waveforms Supplied with coil cable with instantly banana plug or BNC plug Feature AC/DC frequency range: Up to twenty kHz Effective Measurement Range: 20mA to 65A DC It is a transducer which allows your multimeter to measure latest information and enable your oscilloscope to measure the present waveforms Its latest transducer is composed by means of permalloy and corridor element, which linearly remodel the AC or DC current to AC or DC recent voltage And if connect with an oscilloscope via BNC sort connector, you&;re able to be aware the current waveforms; If connect to a multimeter by banana sort connector, you may achieve the present information Application Power circuit dimension and malfunction analysis; Motor power of frequency converter (or different electronics) measurement; Power electronics equipments size

  • Description Picture 2 of itemHantek CC65 CC-650 Current Clamp Oscilloscope 20KHz/400Hz Bandwidth BNC Plug AC/DC Current Clamp Probe 1mV/10mA 65A/650A
  • Description Picture 3 of itemHantek CC65 CC-650 Current Clamp Oscilloscope 20KHz/400Hz Bandwidth BNC Plug AC/DC Current Clamp Probe 1mV/10mA 65A/650A

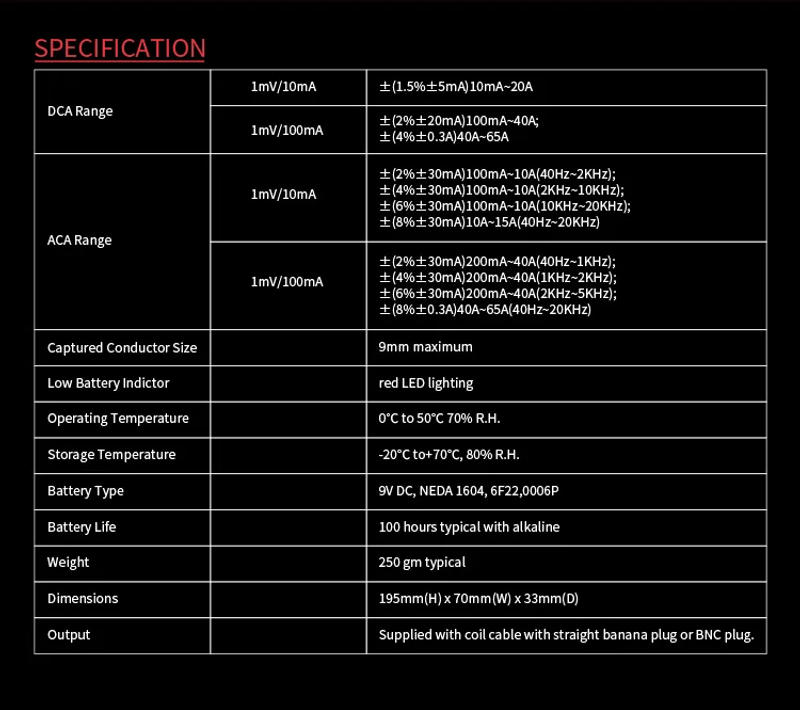

  • Description Picture 4 of itemHantek CC65 CC-650 Current Clamp Oscilloscope 20KHz/400Hz Bandwidth BNC Plug AC/DC Current Clamp Probe 1mV/10mA 65A/650A
  • Description Picture 5 of itemHantek CC65 CC-650 Current Clamp Oscilloscope 20KHz/400Hz Bandwidth BNC Plug AC/DC Current Clamp Probe 1mV/10mA 65A/650A

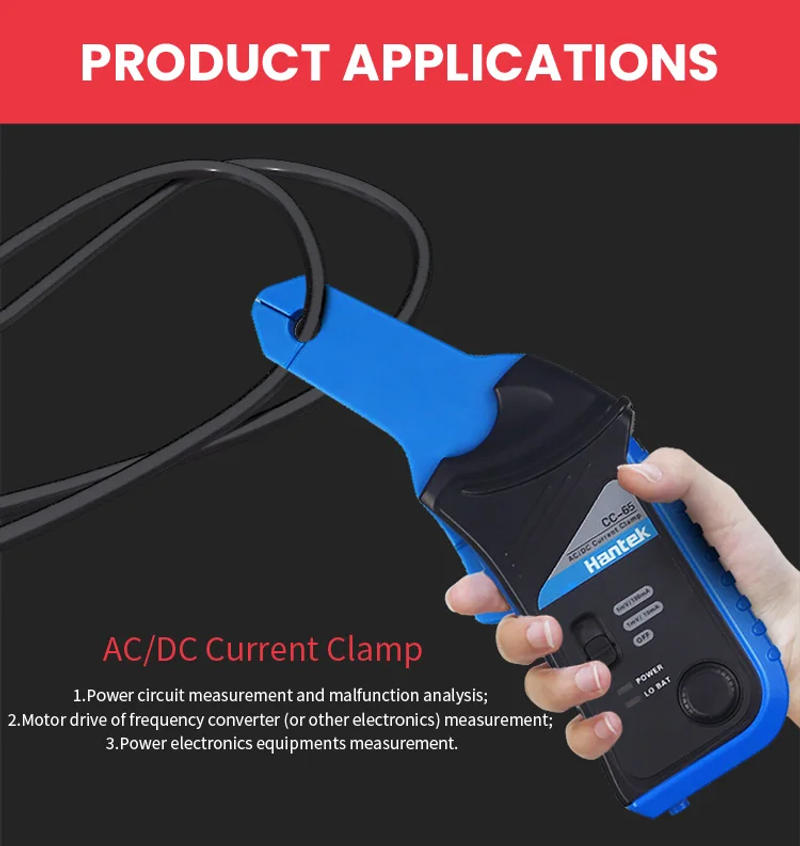

  • Description Picture 6 of itemHantek CC65 CC-650 Current Clamp Oscilloscope 20KHz/400Hz Bandwidth BNC Plug AC/DC Current Clamp Probe 1mV/10mA 65A/650A

Review

0 people rated this product
No reviews
Silver Crest

Silver Crest

Provided by:Silver Crest

Hantek CC65 CC-650 Current Clamp Oscilloscope 20KHz/400Hz Bandwidth BNC Plug AC/DC Current Clamp Probe 1mV/10mA 65A/650A

0.0
-39%$ 71.80$ 109.67
VAT included
Color: CC-65
CC-65
CC-650
Quantity
Only 237 left in stock
Provided by Silver Crest. Ships from BUYDO

Free shipping & returns

Shipping: 5-9 business days
