Preces apraksts

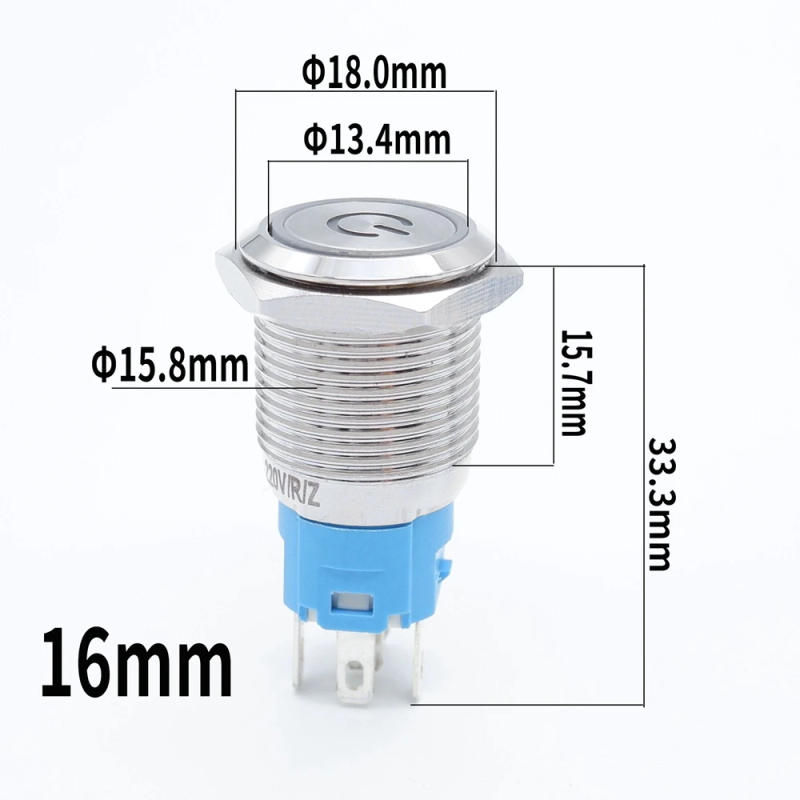

• 1 piece button switch+1 piece connector Switch type:power swap button Hole diameter:16/19/22mm Led color:red/orange/green/blue/white Shell color:silver Operation method:Momentary self-reset/Latching self-locking Led Voltage:3-6V/12-24V/110-220V Maximum current:4A Waterproof level:IP66 Contact type:1NO1NC Manual measurement, there may be a little error Switch push button with rubber sealing ring, water-resistant and dustproof Difference between Momentary self-reset and Latching self-locking: 1/Self-reset: When you press the button, press-key will robotically return(Like a automobile horn change it-power on, launch it-power off) 2/Self-locking: When you press the button, press-key will reside in function till you press again then the press-key return(Like a lightweight switch it-power on, press it again-power off) How to connect? (1) " NO " and " C " : The circuit is alway open until press the button (2) " NC " and " C " : The circuit is alway shut until press the button Certificate authentication Wiring Diagram(16/19/22mm) 1、The button turns the LED gentle on and off，the circuit is alway open except press the button 2、LED lighting are continually on，the circuit is alway open except press the button 3、 The button turns the LED mild on and off，the circuit is alway shut except press the button 4、LED lighting are constantly on，the circuit is alway shut until press the button

•
•
•
•
•
