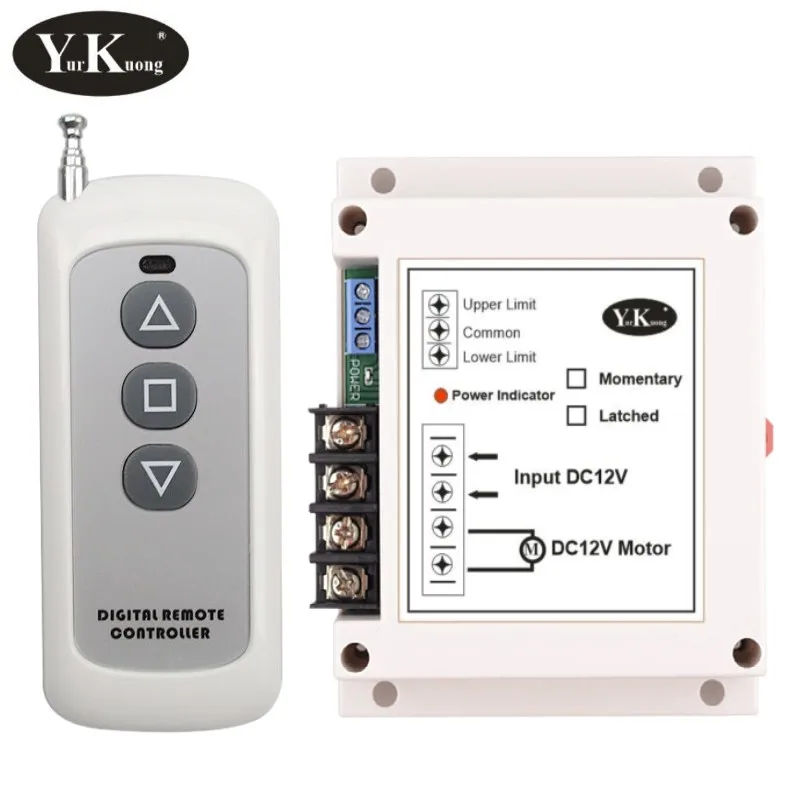

• DC 12V Motor Forwards Reverse Up Down Stop Controller Working Voltage: DC12V Max Load: 40A Relay have larger load lower than 400W Size: 115*95*40mm Control Type: Up Down Button change the receiver Output + - role When motor is stop, the Output is 0V Code Type--------------- Learning Button so as to add Transmitter Power off then Power ON again , the receiver is still off , Receiver with the Power LED indicator Working Mode: Momentary Latched adjusted through Switch “Latched Mode" -----------have the 3s Delay for protection Momentary---------Switch turn to“M" Latched-------------Switch flip to " L"

•
•
