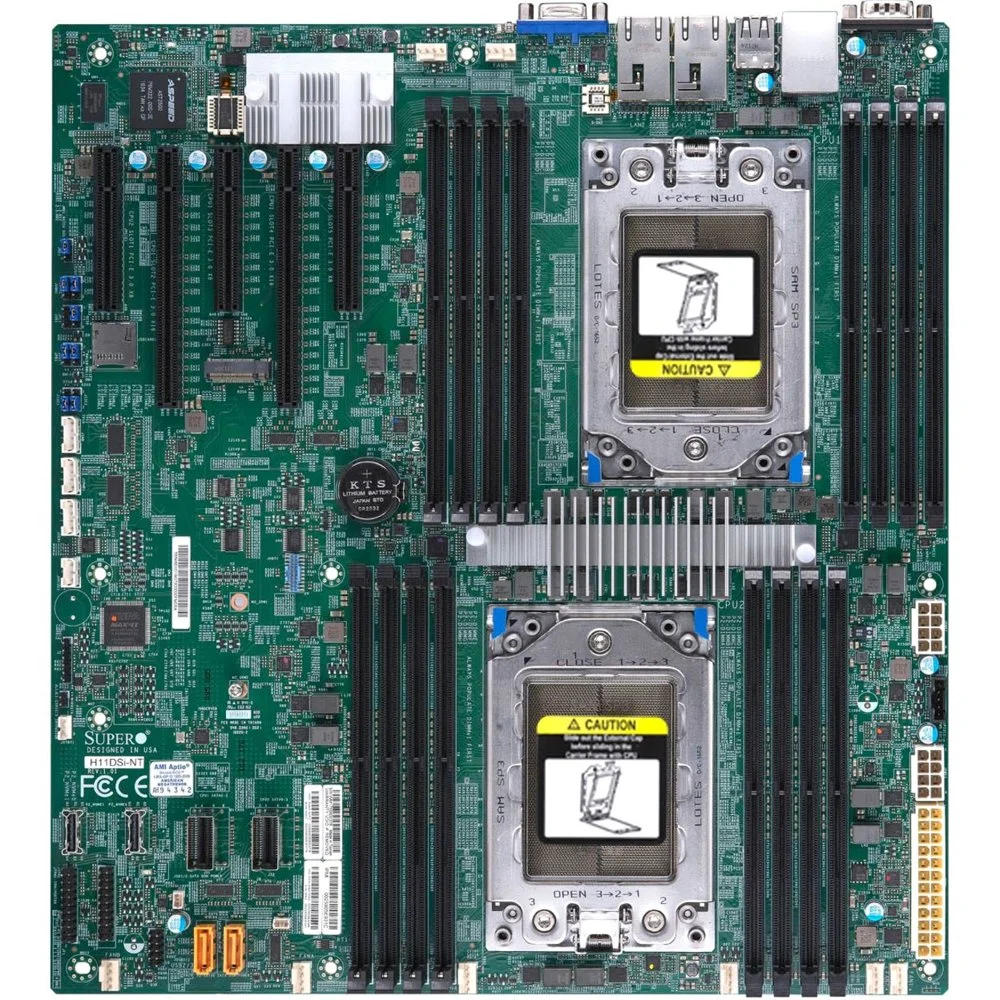

• Product SKUs MBD-H11DSi-NT H11DSi-NT MBD-H11DSi-NT-B H11DSi-NT (Bulk Pack) Physical Stats Form Factor E-ATX Dimensions 12" x 13" (30 x 33) Processor/Chipset CPU Dual AMD EPYC™ 7001/7002* collection Processors (*Board revision 2 required) Socket SP3 Up to 240W TDP Cores Up to 32 Cores Up to 64 Cores (Board revision 2 required) Chipset System on Chip System Memory Memory Capacity sixteen DIMM sockets Supports as much as 2TB Registered ECC DDR4 2666MHz SDRAM Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2 required) 8-channel memory bus Memory Type DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2 required) DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2 required) Memory Voltage 1 Error Detection Corrects single-bit mistakes Detects double-bit mistakes (using ECC memory) On-Board Devices SATA SATA3 (6 Gbps) IPMI Support for Intelligent Platform Management Interface v IPMI 2 with digital media over LAN and KVM-over-LAN support ASPEED AST2500 BMC Network Controllers Intel® X550 10G Base-T Ethernet Controller 1 Realtek RTL8211E PHY (dedicated IPMI) VGA ASPEED AST2500 BMC Input / Output SATA 10 SATA3 (6 Gbps) ports NVMe 2 Internal NVMe Ports (PCI-E three x4) LAN 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port USB 2 USB three ports (rear) four USB 2 ports (2 rear + 2 via header) VGA 1 VGA port Others 1 COM port (rear) 2 SATA DOM strength connectors 1 TPM 2 header Expansion Slots PCI-Express 3 PCI-E 3 x8 2 PCI-E 3 x16 M Interface: 1 SATA/PCI-E three x2 (Platform with EPYC 7002 processor only supports PCI-E form M module) Form factor: 2280, 22110 Key: M-key Chassis ( Optimized for H11DSI-NT ) 2U SC213AC-R1K23LPB SC216BE1C4-R1K23LPB SC825TQC-R802LPB SC826BE1C4-R1K23LPB SC829HE1C4-R1K62LPB 3U SC836BE1C-R1K23B 4U SC745BAC-R1K28B2 SC846BE1C-R1K23B Server(s) ( with H11DSI-NT ) Model(s) AS -4023S-TRT System BIOS BIOS Type AMI 128Mb SPI Flash EEPROM BIOS Features Plug and Play (PnP) DMI 2 PCI 2 ACPI five USB Keyboard Support SMBIOS three Management Software Super Doctor 5 Watch Dog NMI SUM IPMI 2, KVM with dedicated LAN Power Configurations ACPI Power Management Power-on mode management for AC power loss restoration PC Health Monitoring CPU Monitors CPU Core Voltages, +1, +1, +1, +12V, +5V, +5V standby CPU switching voltage regulator FAN Up to 8-fan status tachometer monitoring Up to 8 4-pin fan headers Dual Cooling Zone Status video display for speed management Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis surroundings CPU Thermal Trip Support Thermal control for 8x Fan connectors I2C Temperature Sensing Logic LED CPU / System Overheat LED Other Features Chassis Intrusion Detection Chassis Intrusion Header UID Operating Environment / Compliance Environmental Specifications Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) About the company We had been founded in 2011 and concentrate on server and pc parts and authorized dealers All goods are real Customs clearance: 1 Import duties/charges usually are not integrated in the charge These charges aren't below the seller&;s control If you've got special requirements, please touch us before ordering If you reject and go back the kit for customs reasons, you will likely be liable for all expenses arising therefrom About the product ： (1) The "Specifications" parameter is partially crammed in by way of the formula because the system would not have correct information Therefore, there are inaccuracies If clients cannot accurately decide the product, please touch visitor service(2) "Product Inventory" We have upstream suppliers and purchasing team; meanwhile, we have downstream wholesalers The on-line mall is to extend the sales channels of the corporate Therefore, our product stock and costs are discipline to alter Due to the massive number of products, it may be too overdue to update Customers are welcome to take the initiative to communicate with our customer service staff(3) "Product pictures" include common photos supplied by means of providers and some bodily photos The photographs are only for patrons to identify the products, it would not imply that the products customers acquire must be the exact same as the merchandise within the images This ought to be regular sense, so we don't explain too much(4) "New and Used" Most of our merchandise are disassembled or used merchandise There are also some brand new merchandise Even the used merchandise are different, some are 90% new and some are 80% new If you've got a need for this, please touch visitor service(5) "Item Condition: Used", do not measure by way of the standard of latest The floor of the product may have scratches, yet they will not influence your use We will try our greatest to produce the best provider for you About delivery (1) If you don't get hold of the kit on time, please do not dispute with out contacting us Please contact us first (2) Please ensure your deal with is right Please make sure your deal with is right (3) The shipping phrases for "Logistics" are FOB Shenzhen, we aren't accountable for import fees to the vacation spot country If you've any questions, please contact customer service (4) "Estimated shipping date" is for reference only, please talk over with the delivery time on Buydo (5) "Packaging" We will pack the parcel sturdily (not in original packaging, now not stricken by lengthy distance transportation) Important Pre-purchase Notice (1) "SIGN FOR" Please test the kit earlier than you sign for it If you are not convinced with the thing (e brand, appearance, damage, etc), please refuse to sign for it Once you sign for the package, you agree to the condition of the thing If injury is found after receipt, please present an unboxing video and a whole damage certificate from the logistics corporation If you can't present evidence of damage, you will not be compensated(2) "Product Use" Please don't alter or disassemble the product without our permission Once you modify or disassemble, or the warranty label is damaged, we won't provide any guarantee or refund(3) "Testing" We have a professional shopping group Some products are discipline tested on the time of purchase, so there may not be an opportunity to test and photograph every single product in detail separately We will take pictures of every product that may be shipped as evidence If mandatory or available, we will examine and photograph(4) "Warranty" Our warranty is mostly for 3 months and the product is free of charge, but the customer is liable for the go back transport charge of the product except otherwise agreed(5) "No Reason to Return" Our store does not settle for no motive to come back or refund There is just one valid reason: there is a concern with the function of the product, but the customer needs to present satisfactory respectable evidence(6) "Dispute" We don't settle for full refunds for any reason, yet we additionally settle for no returns The visitor must undergo the price of returning the product Also, the returned product ought to be within the identical situation as when we despatched it to the client If we find any damage attributable to the customer after receiving the goods, the client can be liable for it

•
•
