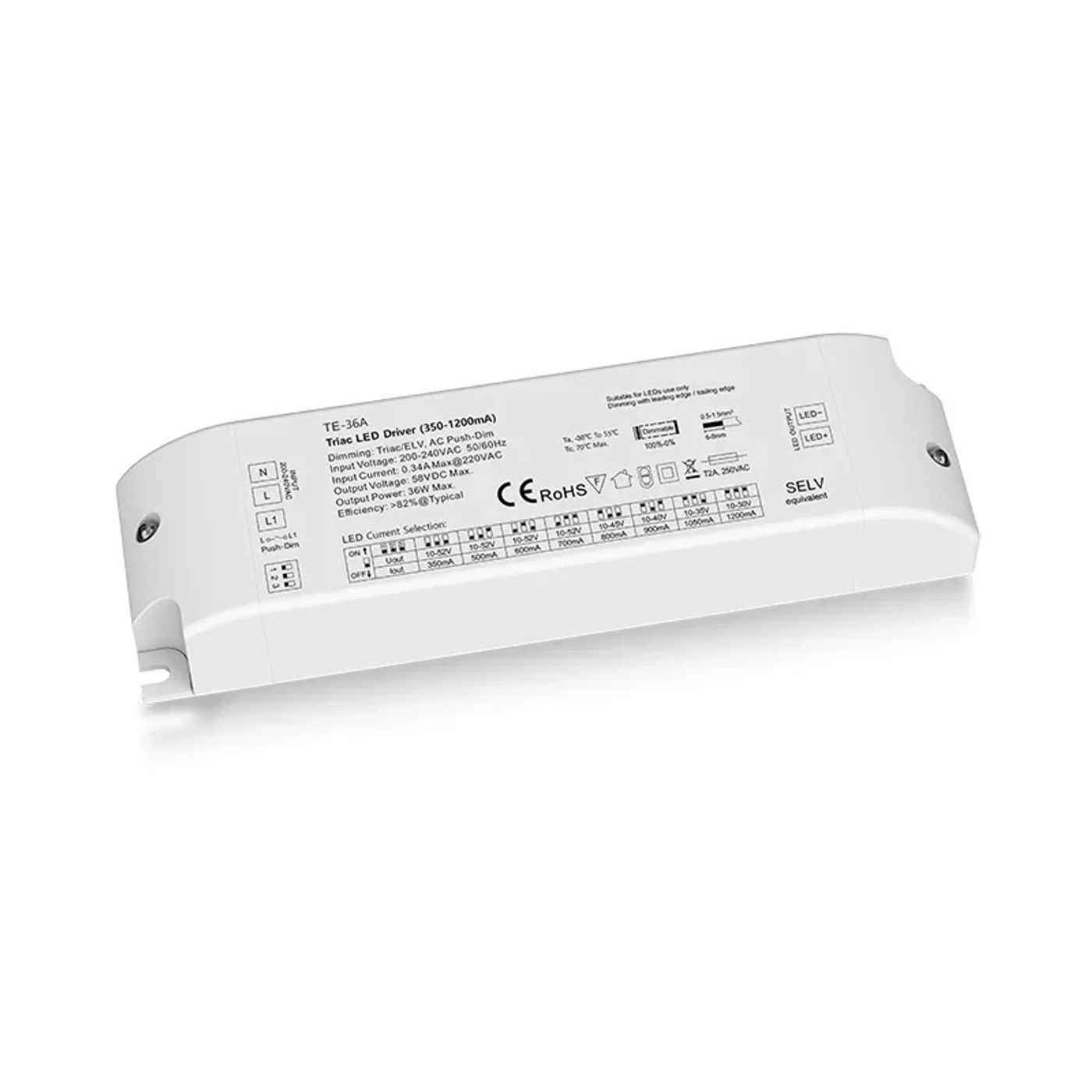

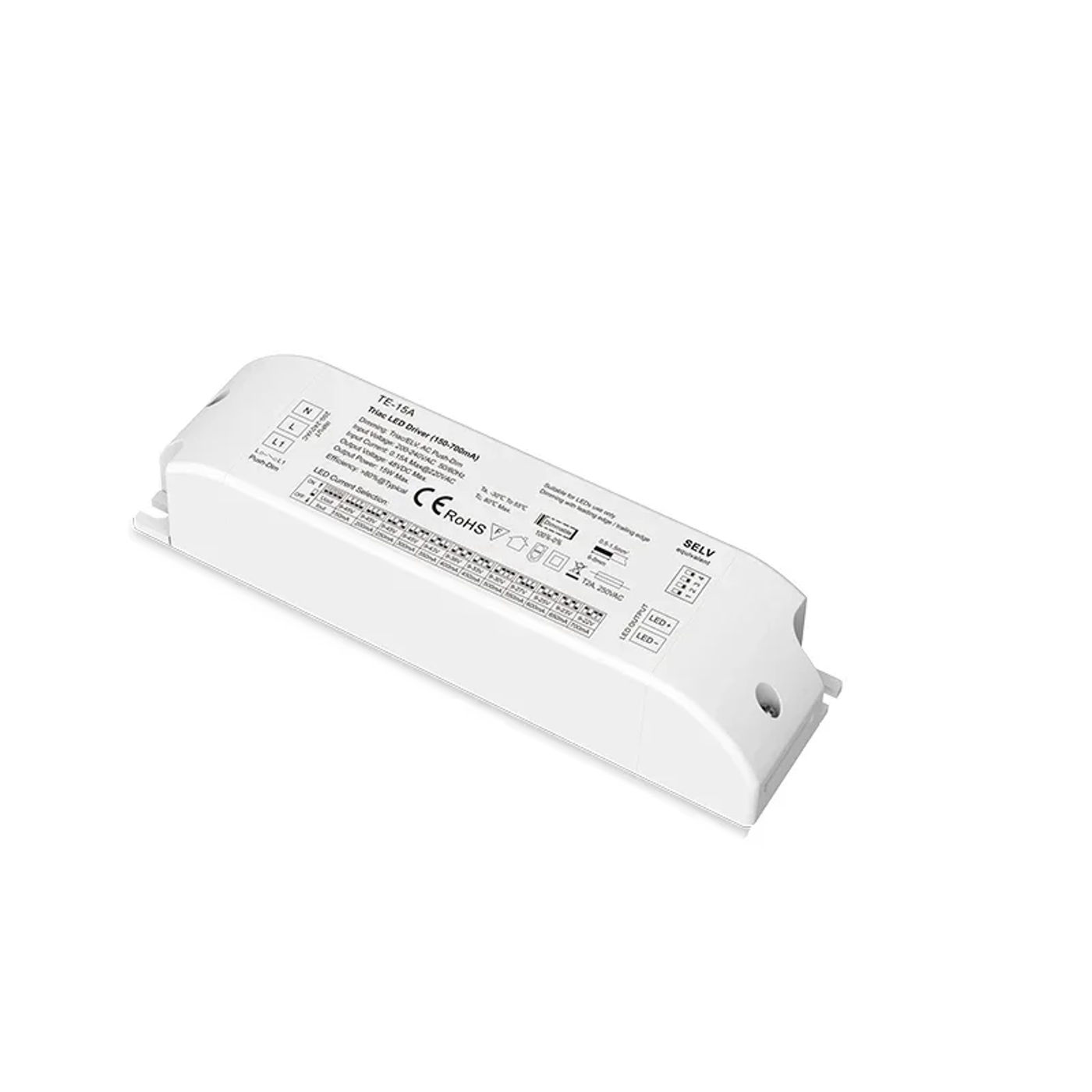

• Triac Constant Current LED Driver Model No.: TE-15A / TE-25A / TE-36A Features ● Dimming interface: Triac/ELV, AC Push-Dim ● Apply to leading edge/trailing edge Triac dimmers and dimming components ● PWM digital dimming, no adjust LED color rending index ● 1 channel constant latest output, configurable current through means of DIP swap ● Over-heat / Over-load / Short circuit protection, recuperate routinely ● Full keeping plastic case ● Suitable for indoor LED lighting application. Applications ● Suitable for downlight, spotlight and ornamental applications. ● Office / Commercial / Domestic Lighting, Hotels, Classrooms, Warehouse, Health care, Retail and Display. ● Use for retrofit upgrades new luminaire designs. Model:TE-15A Input voltage (AC):200-240V±10% Output Power(P):15W Max Output voltage (DC):10-45V Output current(I):150mA/200mA/350mA/400mA/450mA/500mA/650mA/700mA 8-Gear current, dial code elective Model:TE-25A Input voltage (AC):200-240V±10% Output Power(P):25W Max Output voltage (DC):10-52V 8-Gear current, dial code optionalOutput current(I):250mA/300mA/350mA/400mA/500mA/600mA/700mA/900mA Model:TE-36A Input voltage (AC):200-240V±10% Output Power(P):36W Max Output voltage (DC):10-52V Output current(I):350mA/500mA/600mA/700mA/800mA/900mA/1050mA/1200mA 8-Gear current, dial code non-compulsory Package Included:1 piece* TE-15A / TE-25A / TE-36ATriac Constant Current LED Driver (as your choose) Applications ● Suitable for downlight, highlight and ornamental applications. ● Office / Commercial / Domestic Lighting, Hotels, Classrooms, Warehouse, Health care, Retail and Display. ● Use for retrofit upgrades new luminaire designs. Triac Dimming Input While connected with a Triac dimmer, similar to Lutrom, Clipsal, Dynalite dimmer, diversified Triac dimmers from various suppliers may have varied minimum dimming levels which the driver can't be dimmed below. To dim to 1%, please make sure the dimmer helps 1% minimum dimming level. AC Push-Dim input The provided AC Push-Dim interface permits for an easy dimming components utilizing commercially accessible non-latching (momentary) wall switchs. ● Short press: Turn on or off light. ● Long press (1-6s): Press and keep to step-less dimming, With another lengthy press, the sunshine point goes to the opposite direction. ● Dimming memory: Light returns to the former dimming point when switched off and on again, even at calories failure. ● Synchronization: If a few LED driving force are related to the same push switch, do a long press for more than 10s, then the strategy is synchronized and all light fixtures within the organization dim as much as 100%. This potential there isn't any want for any more synchrony cord in bigger installations. We put forward the variety of LED drivers related to a push change doesn't exceed 25 pieces, The most length of the wires from push to LED driver must be not more than 20 meters.

•
•
•
•
•
