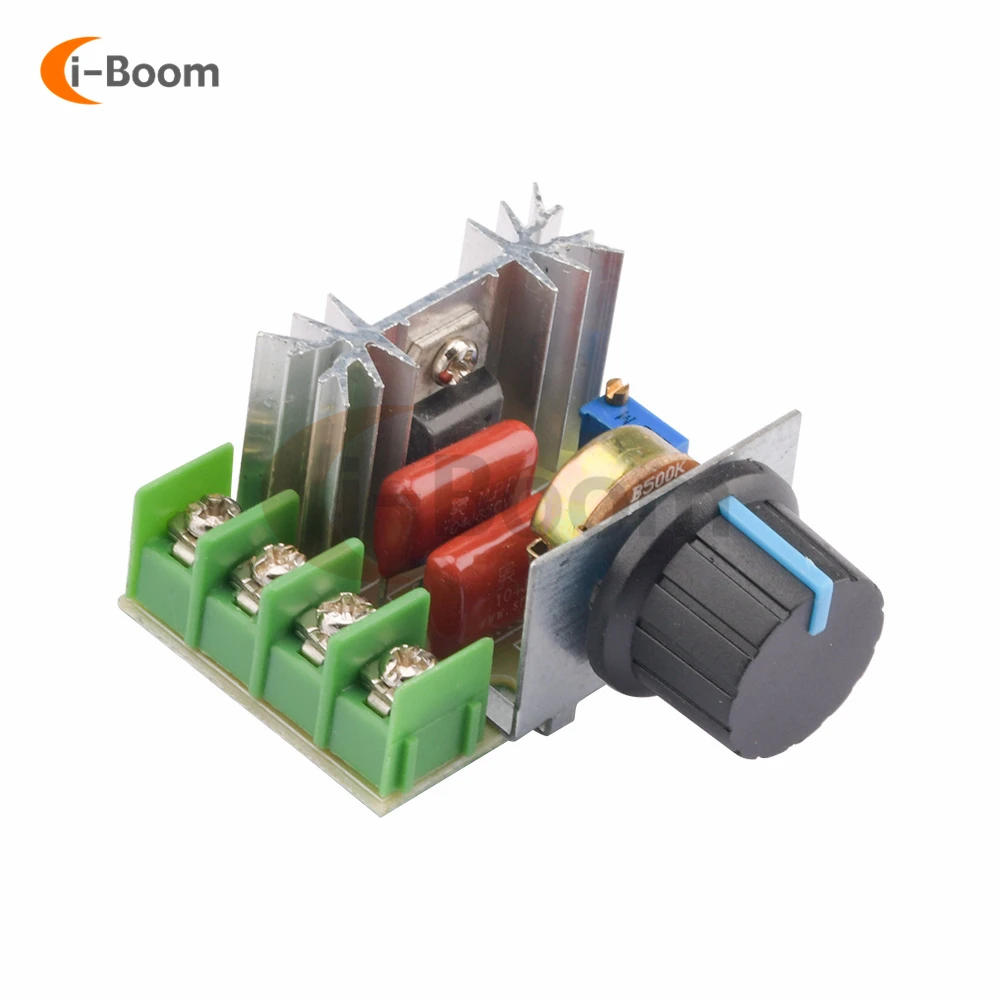

• Parameters: Operating voltage: AC 220V High power: 2000W Voltage regulation: AC 50-220V Specifications and dimensions: hot temperature resistant FR-4 circuit board about 36MM * 48MM External dimension: 48MM * 60MM (knob direction) * 28MM (height) Silicon management face up to voltage up to 1200V/current 25A 1 thick epoxy copper clad plate The voltage regulator with wave height voltage absorption circuit can efficiently preserve high-power silicon controlled rectifier, with longer carrier life and sturdiness Usage method: Connect the product in series within the circuit of the table lamp or electrical equipment (that is, disconnect any of the dwell or zero wires of the table lamp or electrical appliance, and attach the 2 wires of the "product") Rotate the potentiometer rotary lever to regulate the sunshine and dark, speed, voltage and temperature; It is terribly convenient to use This product is relevant to the use of new two-way high-power silicon controlled rectifier Because the current can attain 25A, it is going to solve the overcurrent difficulty attributable to the small resistance of the electrical furnace cord when it's cooled; It is very convenient to regulate the output voltage of mains power, which can be arbitrarily adjusted between 90 -- 220 volts for electrical home equipment Such as: warmth adjustment of electric furnace and water heater, light adjustment of lamps, speed adjustment of small motor, temperature adjustment of electrical soldering iron, and so forth So as to achieve the effect of light, temperature and voltage legislation It can be used for large home equipment with energy consumption lower than 2000 watts Because the power is already very large, overall household home equipment or small factories are enough (The strength of inductive or capacitive load should be diminished This voltage regulator is supplied with two-way high-power thyristor, and the potentiometers are geared up with nuts It can be utilized with out adding any components, which is very convenient and practical)

•
•
•
•
•
