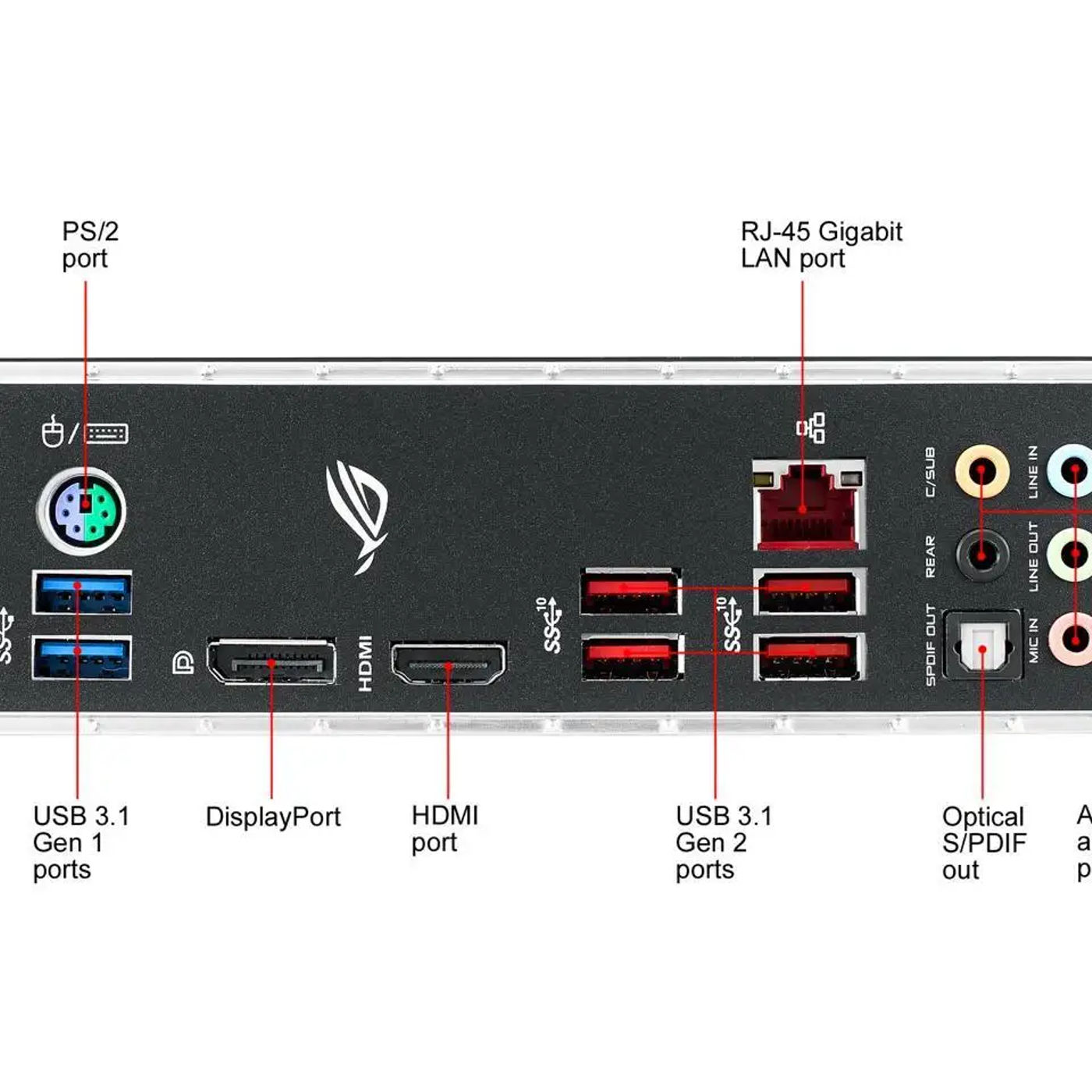

• Model Brand ASUS Series ROG Model Strix Z390-H Gaming Supported CPU CPU Socket Type LGA 1151 (300 Series) CPU Type Intel Socket 1151 for Intel Core 9000 series, 8th Generation Core i7/i5/i3, Pentium and Celeron processors * Not backward like minded with older technology of LGA 1151 CPUs ** Refer to www for Intel CPU help checklist Supported CPU Technologies Supports Intel Turbo Boost Technology 2* * Intel Turbo Boost Technology 2 help is determined by the CPU variety Chipsets Chipset Intel Z390 Onboard Video Onboard Video Chipset Integrated Graphics Processor - Intel UHD Graphics help Multi-VGA output support: HDMI/DisplayPort - Supports DisplayPort 1 with max resolution 4096 x 2304 @ 60 Hz - Supports HDMI 1 withUHD, max decision 4096 x 2304 @ 24 Hz, 24 bpp or 3840 x 2160 @ 30 Hz, 24 bpp Memory Number of Memory Slots 4x288pin (DDR4) Memory Standard DDR4 4133+(OC)*/ 4000(OC)*/ 3866(OC)*/ 3733(OC)*/ 3600(OC)*/ 3466(OC)*/ 3400(OC)*/ 3333(OC)*/ 3300(OC)*/ 3200(OC)*/ 3000(OC)*/ 2800(OC)*/ 2666/ 2400/ 2133 * Hyper DIMM assist is area to the bodily characteristics of individual CPUs Maximum Memory Supported 64GB Channel Supported Dual Channel Expansion Slots PCI Express three x16 eighth Gen Intel Core Processors 2 x PCIe three x16 slots (support x16, x8/x8) Intel Z390 Chipset 1 x PCIe 3 x16 slot (max at x2 mode) PCI Express x1 3 x PCIe three x1 slots Storage Devices SATA 6Gb/s 6 x SATA 6Gb/s M 1 x M Socket 3 with M Key, type 2242/2260/2280 (supports PCIe three x4 and SATA modes) 1 x M Socket three with M Key, type 2242/2260/2280/22110 (supports PCIe three x4 mode) SATA RAID 0/1/5/10 Onboard Audio Audio Chipset ROG SupremeFX S1220A High Definition Audio CODEC Audio Channels 8 Channels * Due to boundaries in HDA bandwidth, 32-Bit / 192 kHz isn't always supported for 8-Channel audio Onboard LAN LAN Chipset Intel I219-V Max LAN Speed 10/100/1000Mbps Rear Panel Ports PS/2 1 x PS/2 keyboard/mouse port HDMI 1 x HDMI RJ45 1 x Anti-surge LAN (RJ45) port DisplayPort 1 x DisplayPort USB 3 2 x USB 3 Gen1 ports [blue] four x USB3 Gen2 ports (4 x Type-A [red]) S/PDIF Out 1 x Optical Audio Ports five Ports Internal I/O Connectors Onboard USB 2 x USB three Gen 1 header helps further four USB 3 Gen 1 ports 2 x USB 2 header supports extra four USB 2 ports Other Connectors 1 x 4-Pin CPU_FAN connector 1 x 4-Pin CPU_OPT fan connector 2 x 4-Pin Chassis fan connectors 1 x 4-Pin AIO_PUMP connector 1 x CPU_OV 1 x Thermal sensor connector 1 x Aura RGB headers 1 x MemOK!_II switch 1 x COM port 1 x TPM connector 1 x Front panel audio connector (AAFP) 1 x System panel connector 1 x Clear CMOS jumper Physical Spec Form Factor ATX LED Lighting RGB Dimensions (W x L) 12" x 9" Power Pin 1 x 24-pin EATX energy connector 1 x 8-pin EATX 12V energy connector Features Features Multi-GPU Support: Supports NVIDIA 2-Way/Quad-GPU SLI Technology Supports AMD 3-Way/Quad-GPU CrossFireX Technology ROG Exclusive Features: ROG RAMCache III ROG GameFirst V ROG CPU-Z ROG Overwolf Special Feature: AURA - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with like minded ASUS ROG devices ASUS Dual Intelligent Processors 5-Way Optimization via Dual Intelligent Processors five - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer&;s Guardian - Procool - SafeSlot - DIGI+ VRM - DRAM Overcurrent Protection - ESD Guards on LAN, Audio and USB3/2 ports - Highly Durable Components ASUS Exclusive Features - Armoury Crate - Pre-mounted I/O Shield - OptiMem II - 3-D Printing Friendly design - AI Suite three - MemOK! II - AI Charger ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design - Q-LED (CPU, DRAM, VGA, Boot Device LED) - Q-Slot - Q-DIMM BIOS: 1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3, SM BIOS 3, ACPI 6 Manageability: WOL, PXE Support DVD: Drivers ASUS Utilities EZ Update Anti-virus application (OEM version) Operating System Support: Windows 10 64-bit

•
•
