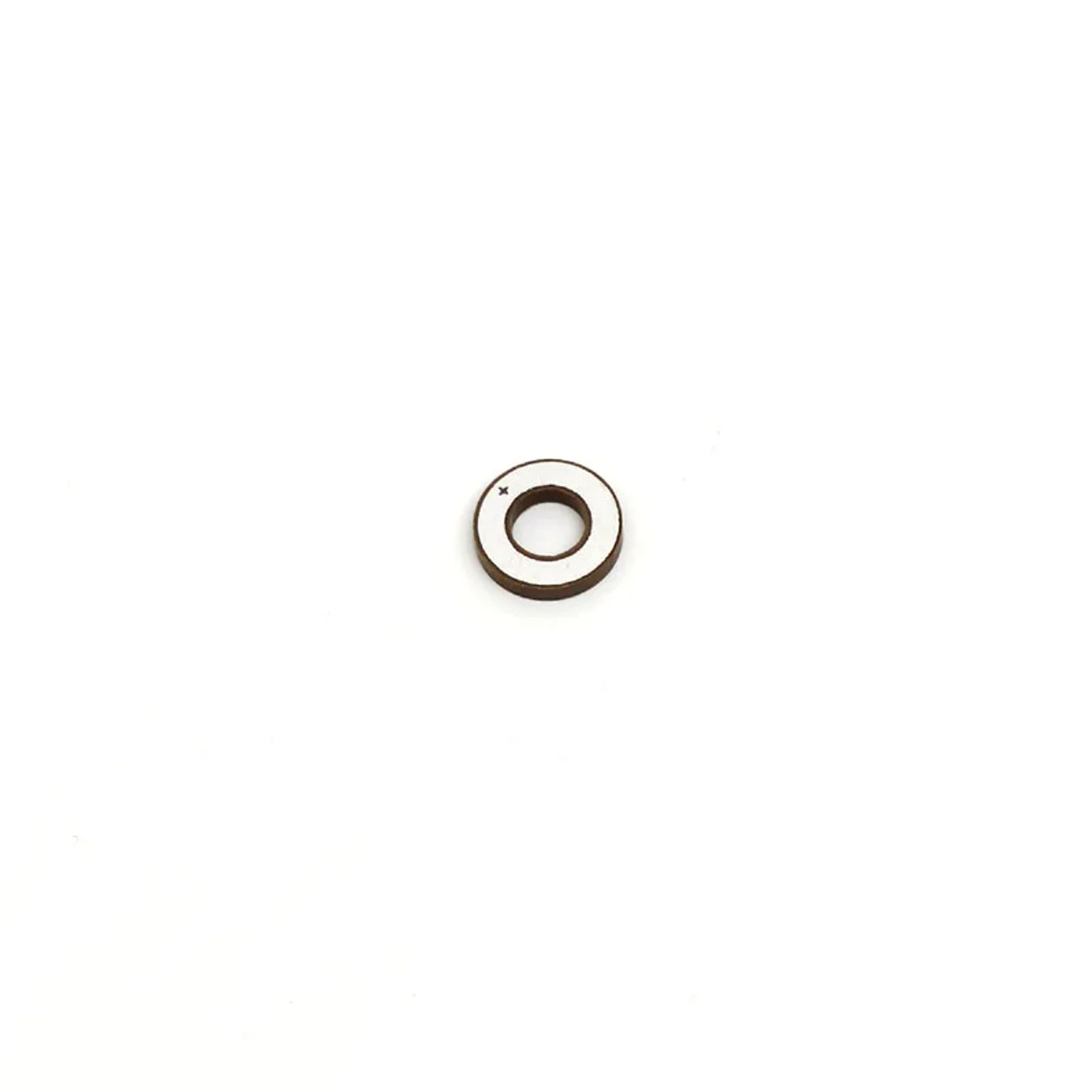

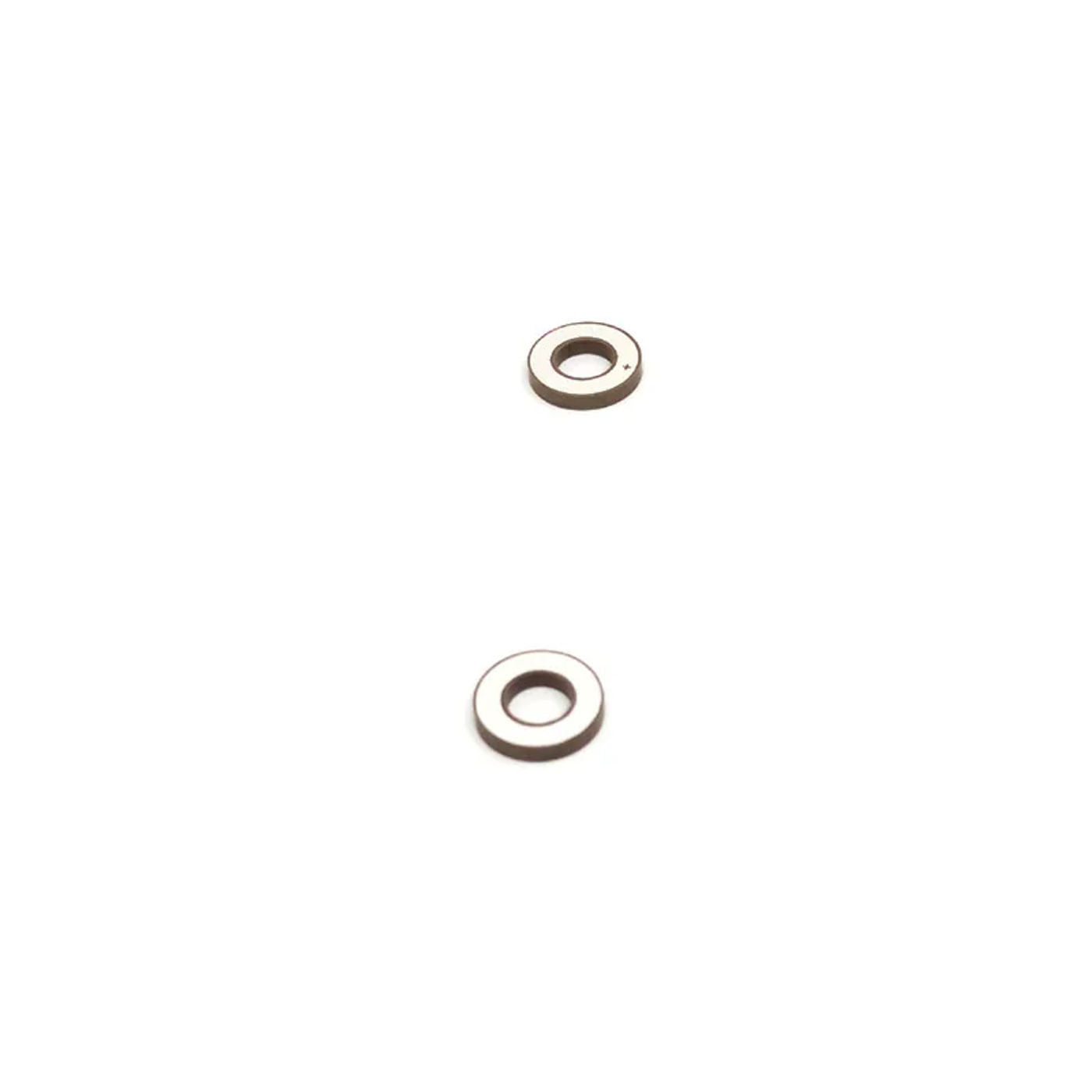

• is_customized: Yes,you might inform me the scale ,material or parameters you needed,we&;ll verify whether or not it is out there or need to produce,the transport date and price could be checked with the company Customer Service, Thank you! Model Number:OD12*ID6*T2-PZT8Item:PZT RINGSize : 12*6*2 Piezoelectric Ceramic Ring with Silver electrodes on both sides Mode: Radial mode vibration applicationStatic capacitance Cs: 330pF±10%@1kHzTest Condition: 25±3 °C 40~70% R. fa, Qm, Kp => Thickness mode vibration utility Cs => LCR meter at 1KHz 1Vrms Applications: ultrasonic reception and ultrasonic burst transmission,Bolt-clamped ultrasonic transducer, Ultrasonic Sensor,Vibration Sensor, Pressure sensor, Vibration generation, Biodiesel mixing transducer, Piezo enlargement sensor, compression sensor, Piezo Welding, Tonpilz Transducer and others. Notes: Keff = ≥35%. Keff is calculated by means of technique of the formula, ((fa2-fr2)/fa2), and fa is the anti-resonant frequency of the hoop mode

•
•
•
•
•
