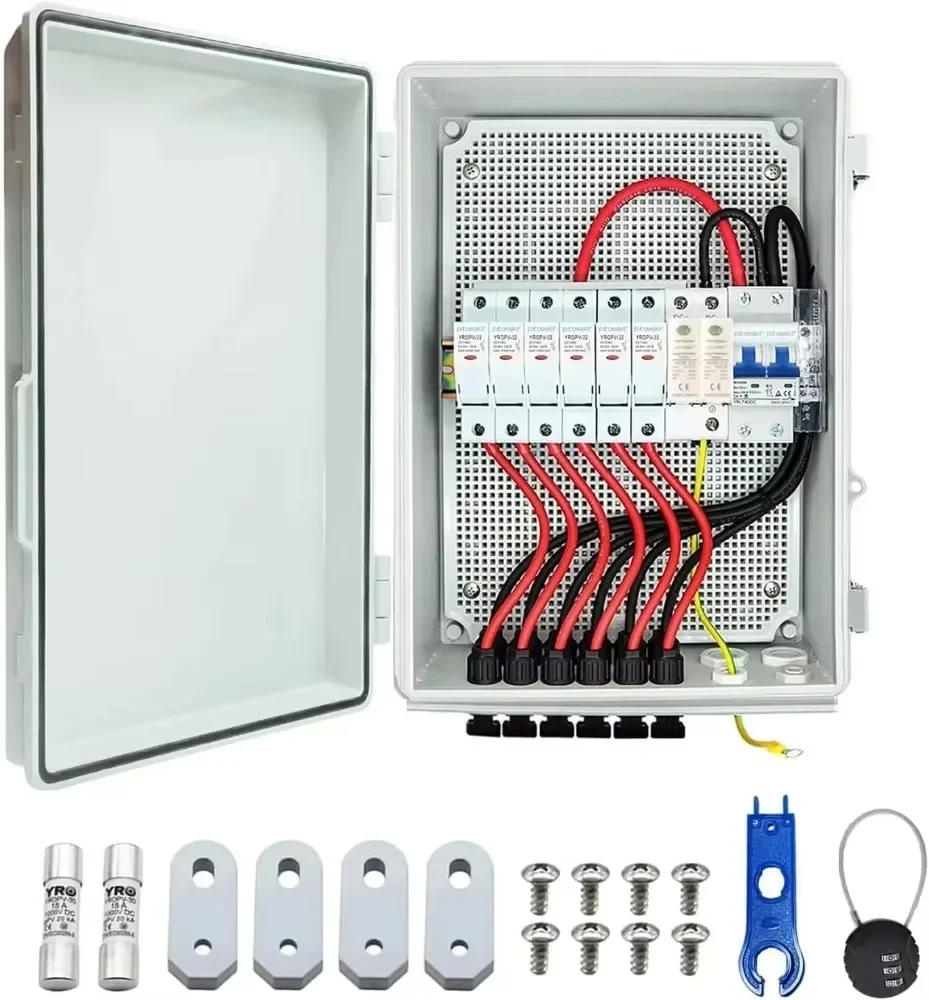

• *(6 String)PV Combiner Box has 6 String for photo voltaic panel enter which may has greater means than four string combiner field Support with Max 1080W in 12V system, 2160W in 24V, 4320W in 48V formulation * (Reliable LED Fuse) Solar Combiner field construct in 6psc replace LED 15A fuse The fuse has a led indicator It will mild on when the fuse burns out Helpful to remind update fuse *(Full protection) This Combiner field also include a 63A circuit breaker and 600V surge lightning protector, more 2pcs substitute 15A fuse IP65 Waterproof box design supply good water resistant and dustproof *(Easy Install & Wiring) A plug & play and pre-connected cable provides a straightforward connection for photo voltaic panel combiner field The photovoltaic combiner field could be mounted on any regular surface with provided mounting buckles And open and close box is easy handle with locker *(Wildly Application) The PV combiner box is a perfect device for outside Suitable for photovoltaic on-grid/off-grid solar energy technology systems, solar panel system, PV array, RV solar power, solar energy lit, home photo voltaic panel techniques Package Content 1 x PV Combiner Box 1 x Solar Connector Tool four x Mounting Buckles eight x Screws 2 x Extra Fuses 1 x Password Lock(Initial password:0-0-0) High Quality &Simple Installation PIKASOLA 6 String Solar PV Combiner Box IP65 Protection Grade & Surge Lightning Protection & Premium ABS Material Rated Voltage: 600V Operation: 15A Input: 6 strings Output: 1 string DC Circuit Breaker: 2P 63A 550Vdc DC SPD: 2P 20-40KA 600Vdc DC Fuse: 15A 1000Vdc 10*38mm ✔ On-Grid/Off-Grid solar formula ✔ 1080W (12V system)/2160W (24V system)/4320W (48V system) Product Details Fuses 6 replaceable 15A self reliant fuses for over-current protection Surge Lightning Protection 600V lightning protection to prevent the wear and tear in typhoon Circuit Breaker 63A leading breaker to hold the output latest Input Port 6 String for photo voltaic panel input which might has bigger potential than four string combiner box Both On-Grid/Off-Grid photo voltaic components could be chosen Solar Combine Box Instruction: 1 Box input: Connect the panel connectors (solar panel output and combiner box input) make sure the destructive twine of photo voltaic panel output linked to the -input(as the picture instructed); the fine wire of photo voltaic panel output connected to the +input (as the picture instructed) Pls don't reverse superb and adverse twine 2 Box Output: Connect wires to the output terminals of DC circuit breaker(both and because the picture instructed), connect the floor twine to the ground terminal of DC arrester All the output wires separately go through the cable glands, ensure all of the cable glands correctly tight finish Notice: 1 All connections needs to be implemented beneath the state of strength failure 2 Let the professional electric engineer carry on connecting line three The flammable and explosive are forbidden within the putting in concourse

•
•
•
•
•
