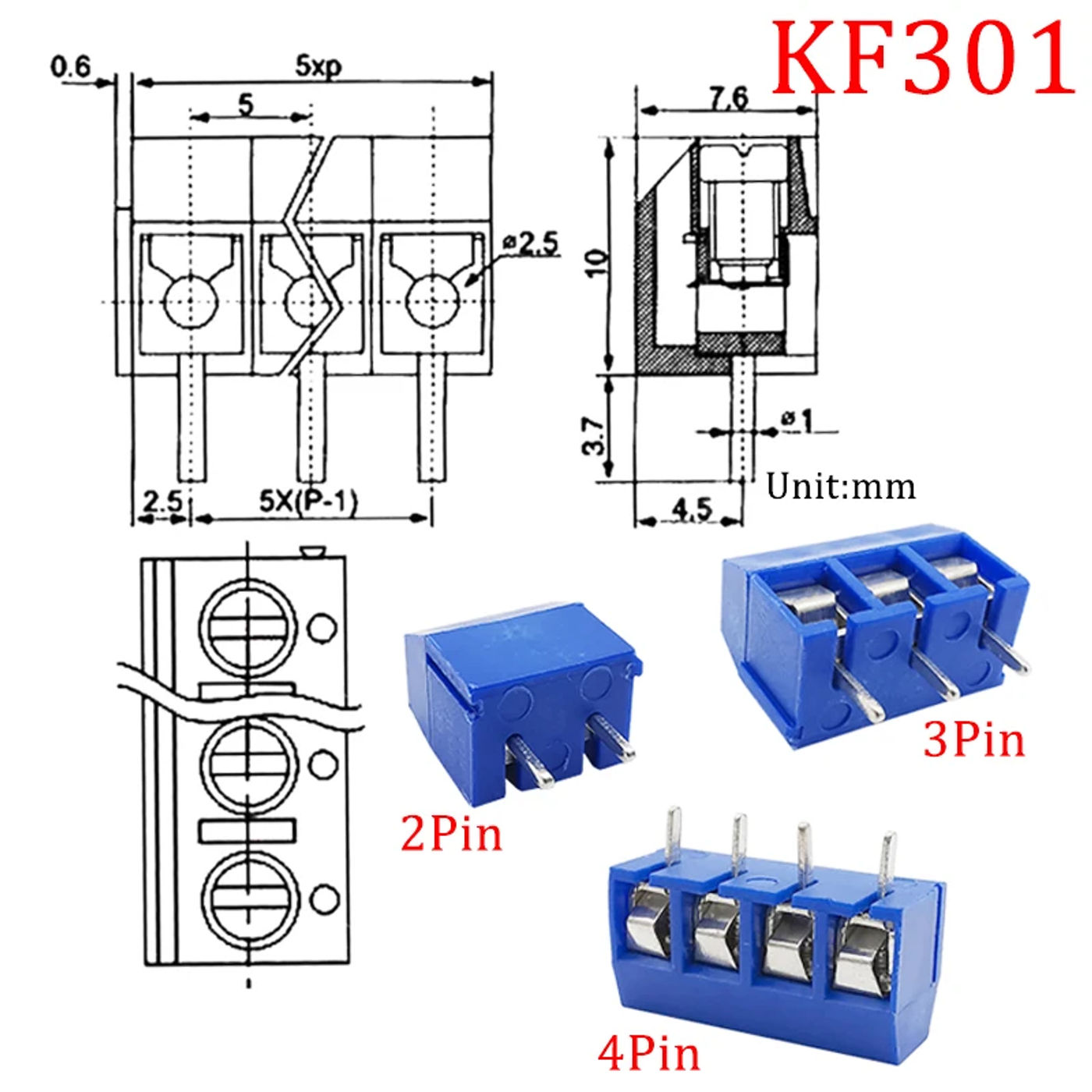

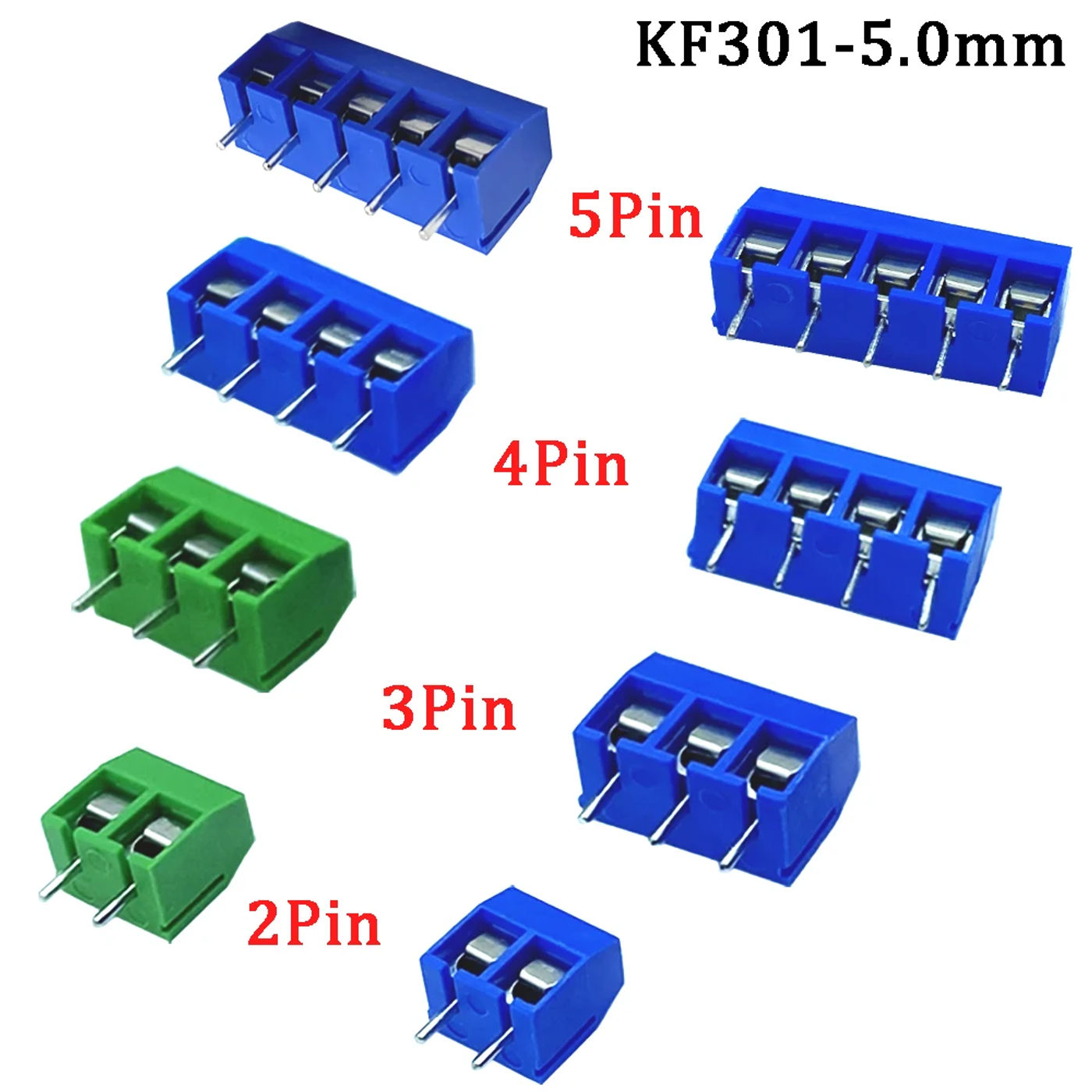

• 10Pcs KF301 2/3/4Pin Spliceable Plug-in Screw Wire Terminal Block KF301-2P KF301-3/4P Pitch 5 Straight PCB Mount Connector Features: There are concave and convex grooves on either sides, which are freely spliced PCB screw terminal block connectors can be utilized as substitute merchandise for electronic initiatives Application: IC Socket, Buzzer, Power Module, DIY PCB Universal Board, Connector Kit etc Describle: Material: Plastic Pitch: 5 Poles: 2Pin,3Pin,4Pin,5Pin Screws: M2 metallic Zinc plated Contact: phosphor bronze Ni plated or chrome steel Style:Flat Needle,Roud Needle Pin header: Copper,Tin plated Housing: PBT,UL94V-0 Electrical Rated voltage: 300V Rated current: 15A Contact resistance: 20mΩ Insulation resistance: 5000MΩ/1000V Withstanding Voltage: AC1500V/1Min Wire range: 22-14AWG/2⊃2; Mechanical Temp: -30°C~+120°C MAX Soldering: +250°C for five Sec Torque: 0(3) Strip length: 4 Package Lsit: 10PCS/Lot x KF301 2Pin PCB Screw Terminal Block 10PCS/Lot x KF301 3Pin PCB Screw Terminal Block 10PCS/Lot x KF301 4Pin PCB Screw Terminal Block 10PCS/Lot x KF301 5Pin PCB Screw Terminal Block

•
•
•
•
•
