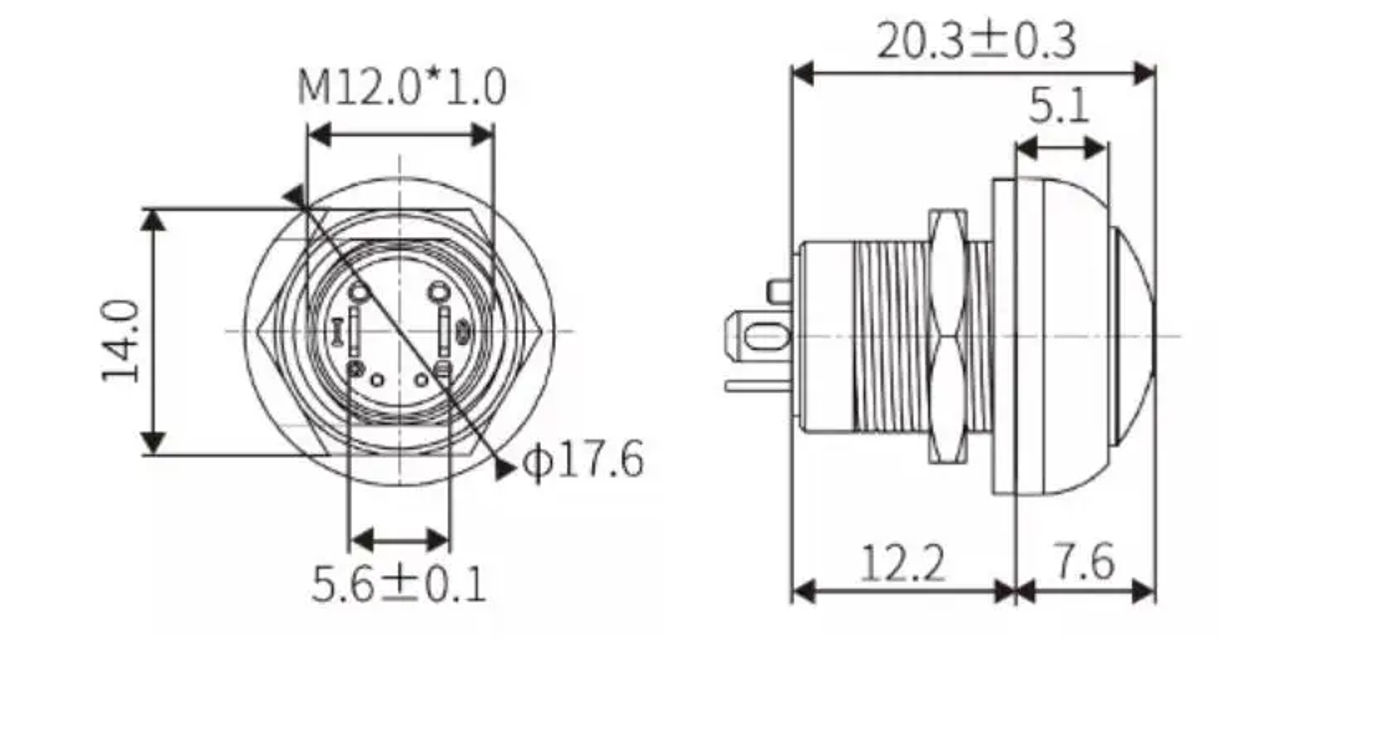

• 12mm Momentary and latching traditional open Waterproof IP67 Types Special Symbol Printed Push Button Switches A4126 series water-resistant push button change , defense degree reach IP67 ,installation length is 12mm According to the material , it has steel push button swap and plastic push button change All the switches has self-locking and short-term two different kinds If equip with LED gentle , color would be customised in keeping with the customer&;s request It broadly utilized in beauty equipment , small yacht, lamps, scientific kit , army communique intelligent community equipment and the alternative instruments Function Momentary: Means that once you push switch and then movement your finger, the actuator will again to the original role Latching: Means that after you push change once it will change state and dwell on this pushed-down role and will not come again to fashioned role except you push it back Note Resistor not within ,should soldering resistor outdoors when operation LED voltage 2 would not desire the outside resistor no cable solely change Technical Paremeters 1 Operating drive ≤6Nf, ideal differ is 5Nf~6Nf , Maximum persistence 5kgf 2 Contact resistance ≤50m Ω three Rated current 3A , rated voltage 250VAC four Insulation resistance ≥100m Ω/min five Withstand voltage: AC 1000V(50~60hz)/min 6 Solderability: soldering iron 340°±5°/1-2s 7 Solder resistance: soldering iron 340°±5°/3-5s eight Durability : Electrical existence 50000 times, Mechanical lifestyles one hundred thousand times 9 Protection degree: IP67 10 Material: Dupont Nylon PA66+20% glass fiber 11 Installation size: 12mm

•
•
•
•
•
