विवरण

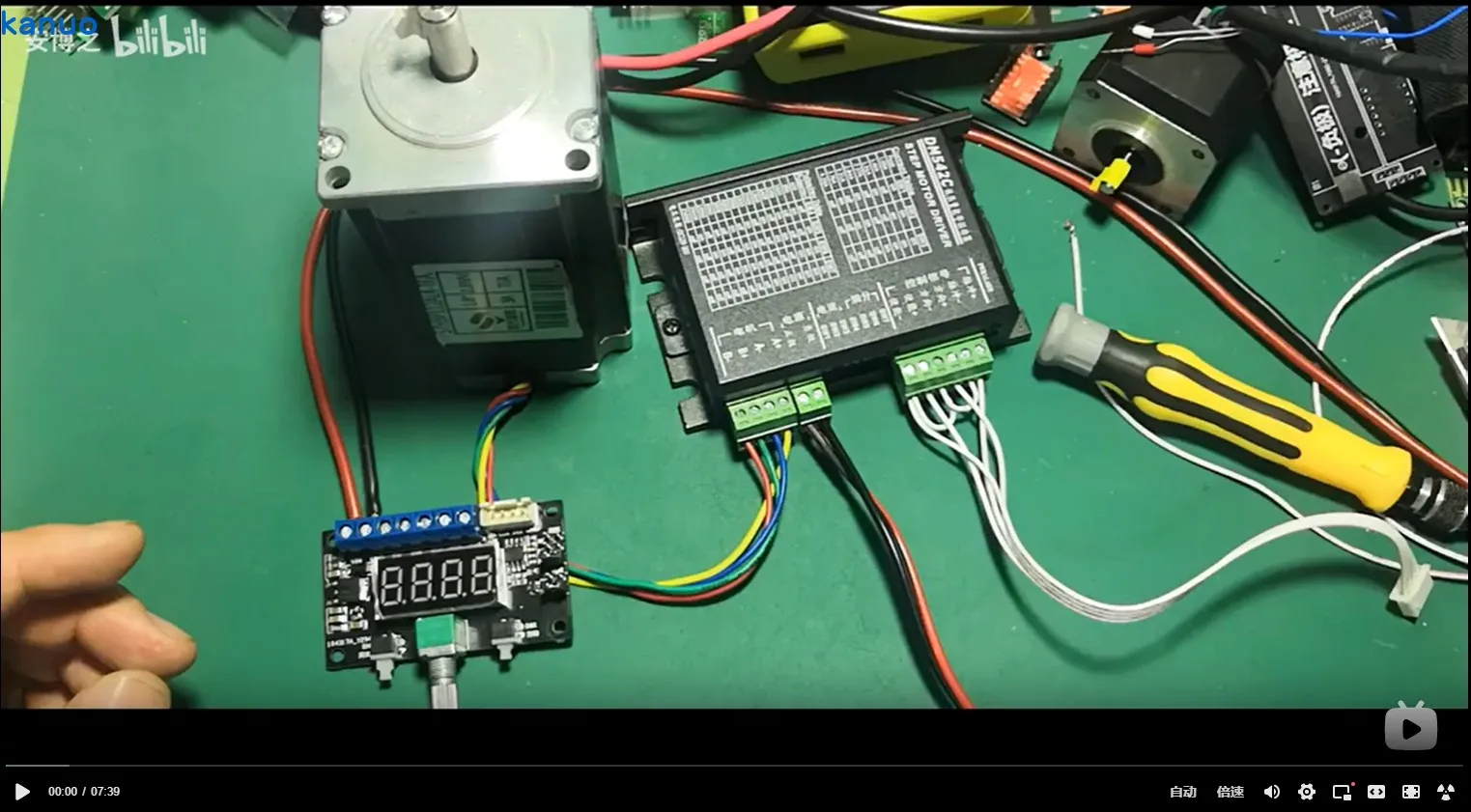

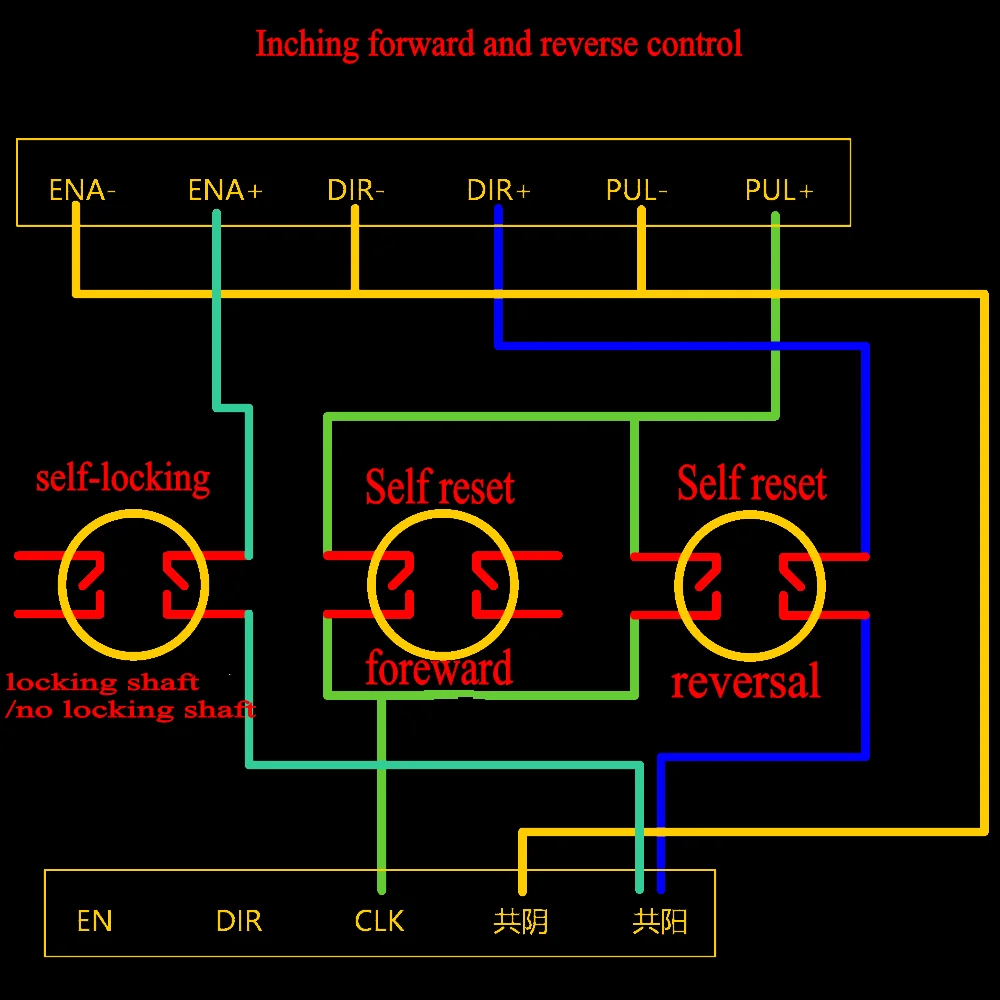

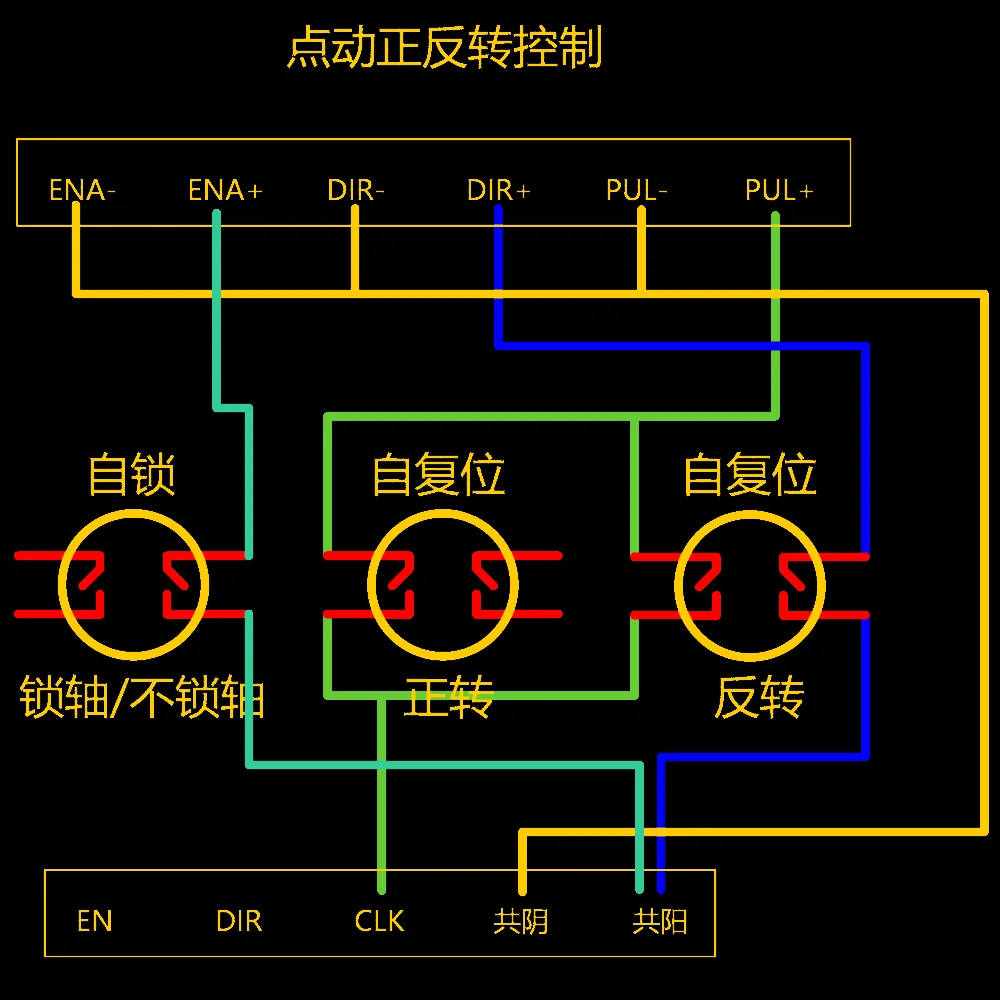

1 This module is a pulse technology module that offers control alerts to the stepper driving force In order to manage the stepper motor, a driving force needs to be equipped 2 This uncomplicated controller+stepper motor drive+stepper motor+DC energy delivery can form an easy control platform three The controller has 3 low-frequency signals: high 5, middle 540-16, and occasional 80-2, which might be used to select jumpers 4 It can generate pulse indicators or PWM signals, and can favor jumpers 5 Measurement frequency: PUL and customary cathode Different stepper drives could also be labeled with assorted names EN=ENA=FREE enabled PUL=PULS=CLK pulse DIR=CW=CWW course Common anode connection formula (A) EN+PUL+DIR+connected to the average fantastic terminal EN - Connection EN PUL - Connect CLK DIR - Connect DIR Common cathode connection formulation (B) EN - PUL - DIR - related to typical female terminal EN+Connection EN PUL+Connection CLK DIR+Connect DIR
समीक्षा
0 people rated this product
12V 24V Stepper Motor Driver Controller Stepper Motor Pulse Pwm Signal Generate Module Motor Speed Frequency Direction Control
