Note: the connector needs to be purchased separately
Difference between auto-recovery button and auto-lock button:
1 Self-recovery button: press this button to show at the power (light on);
Release your hand, the power will seem and turn off robotically (the light goes out)
2 Self-locking button: press the ability button, release your hand, and hold the button desk bound (lit);
Press the button back to display and turn off the power (the gentle goes out)

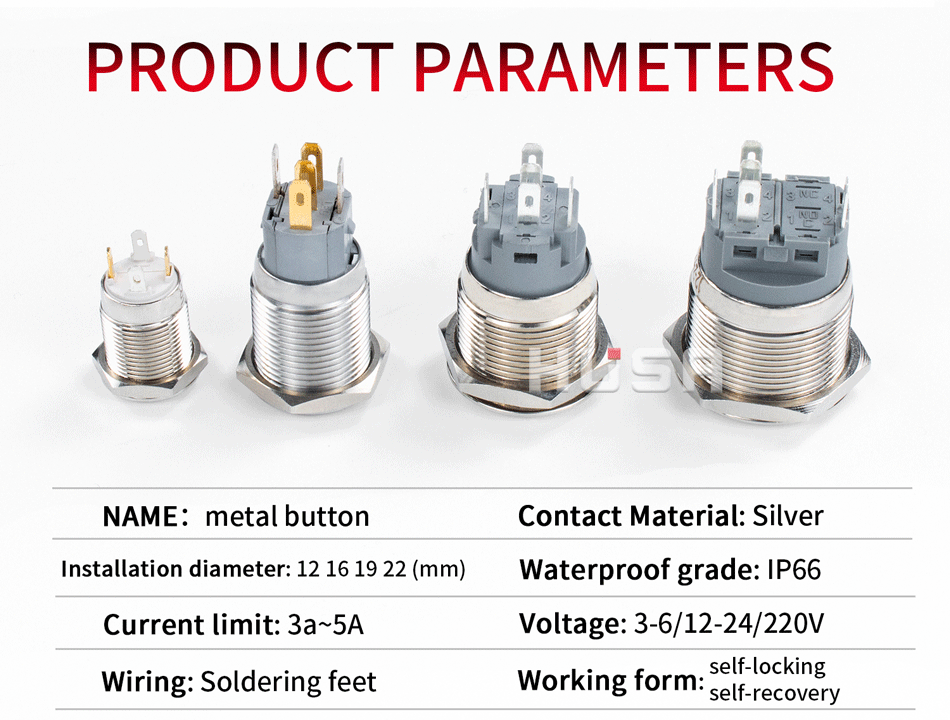

Product parameters
Head type: around head

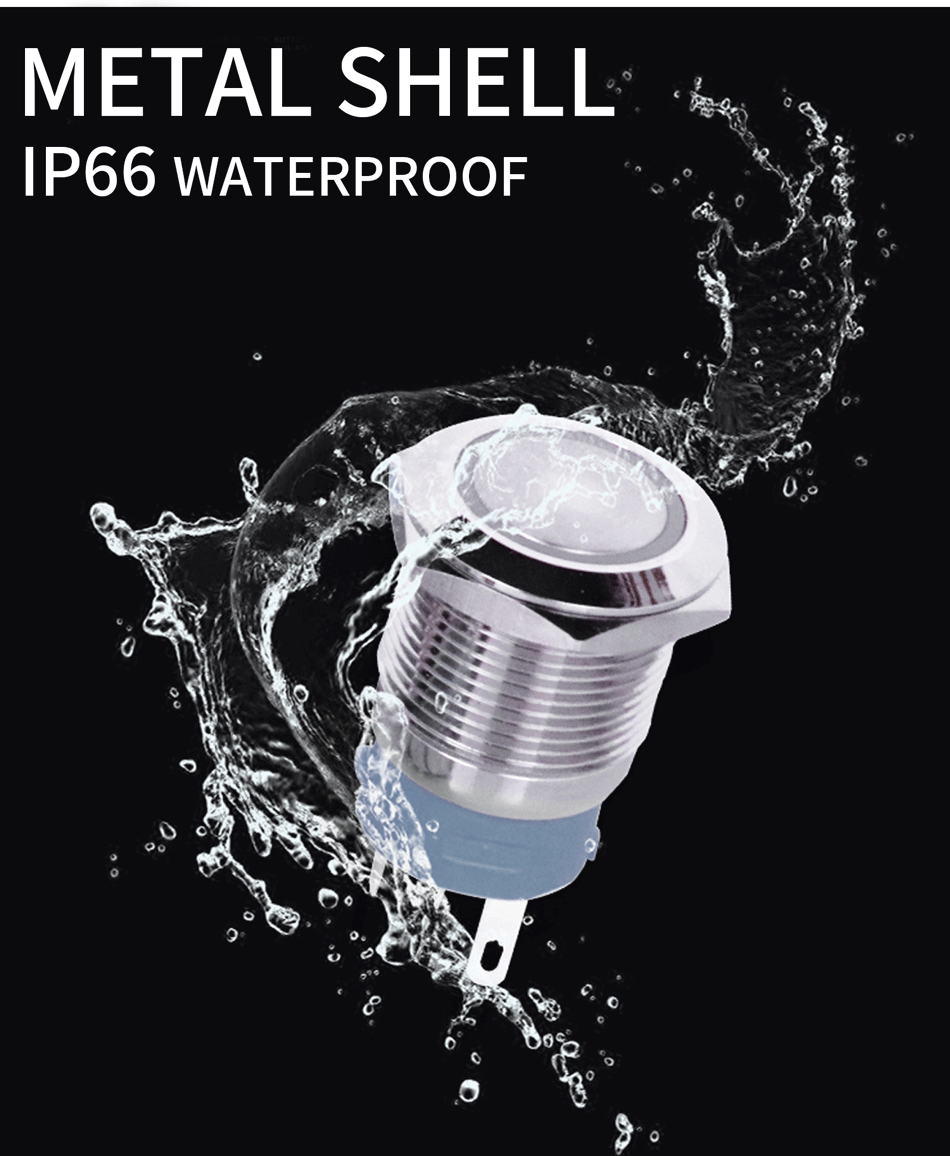

Housing material: steel
Operation type: Momentary self-reset/fixed self-locking

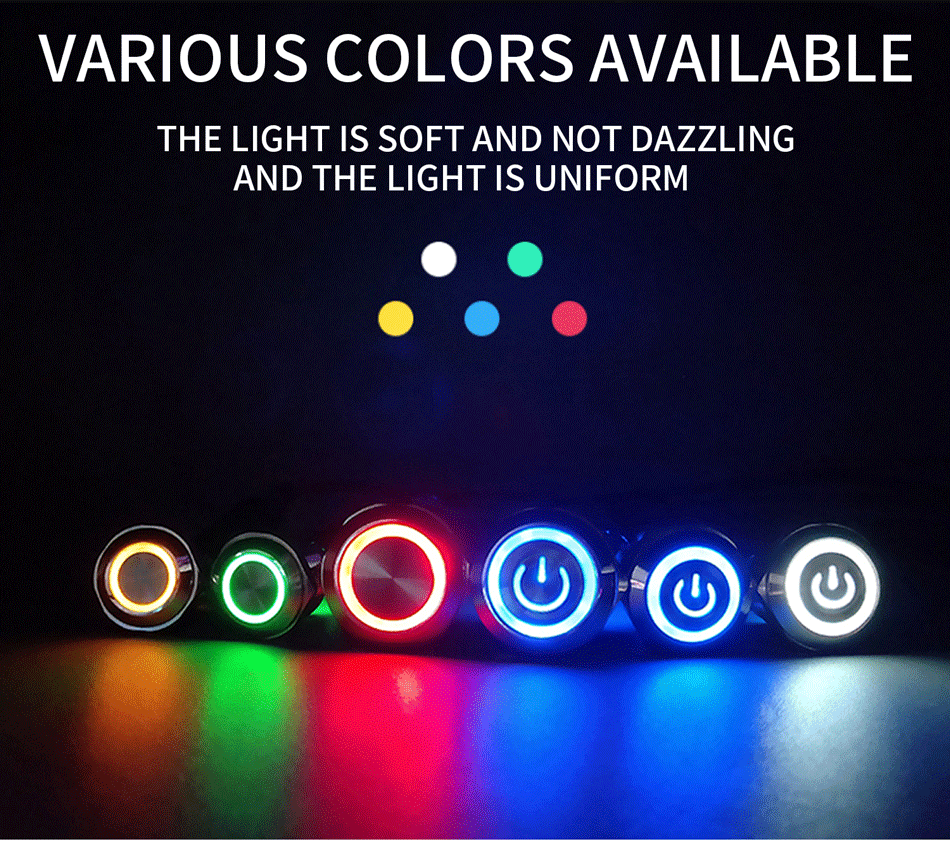

Emitting color: red / yellow / blue / green / white

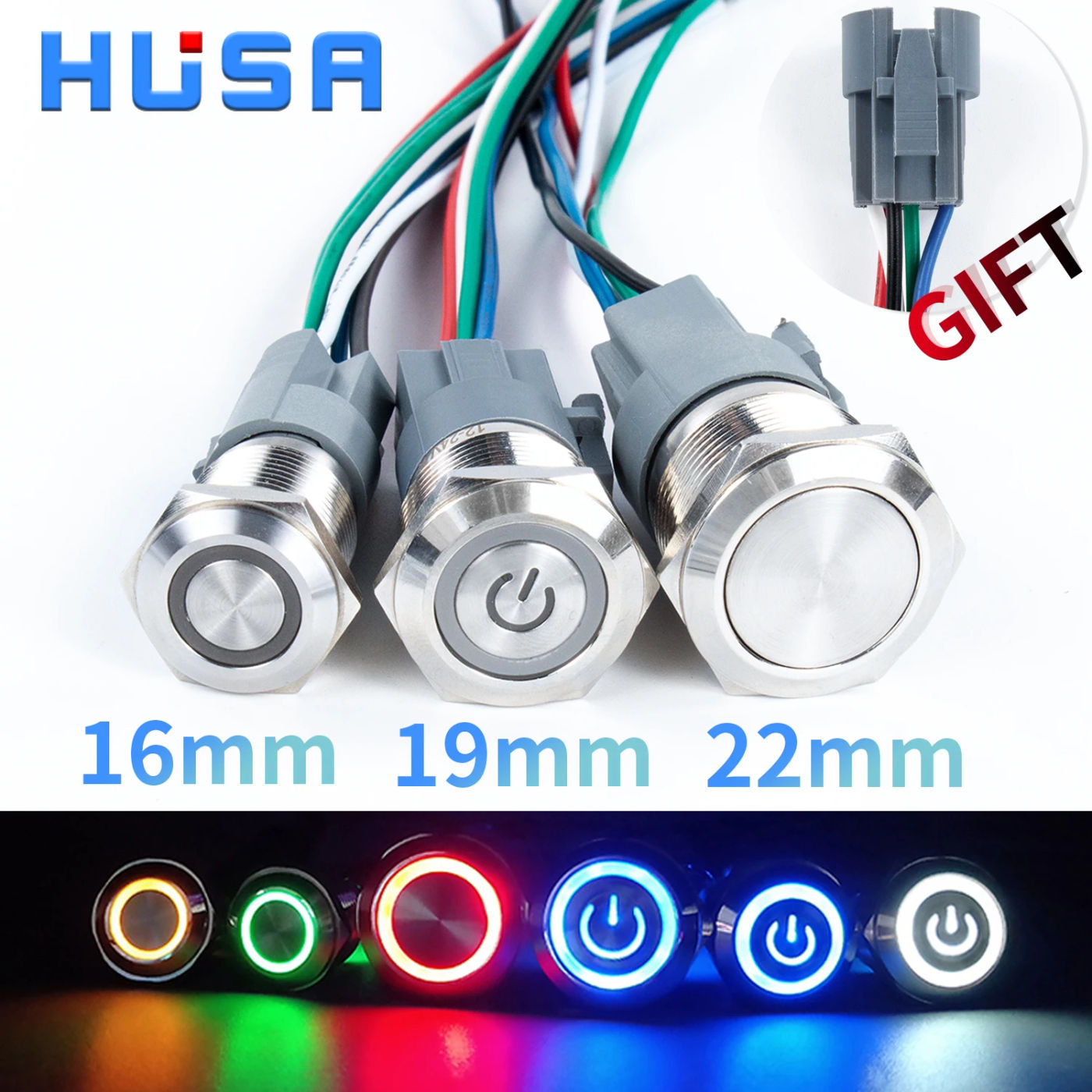

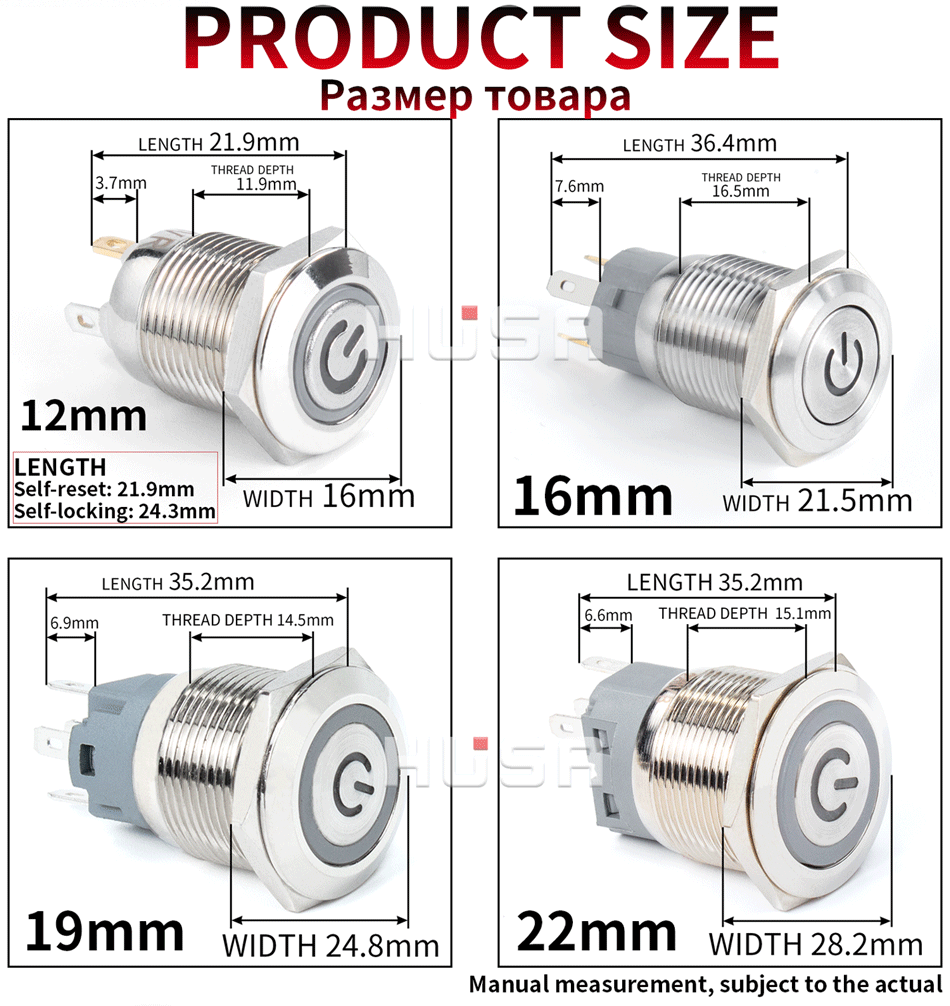

Opening size: 12mm/16mm/19mm/22mm
Very important: Because of the virus,the Economic transport is slow,If you would like buttons hurry,please prefer Alistandard delivery
1 does the sign "NC" and "NO" means?
"A" "+": wonderful pole of the led
"LED" " - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C " : Common

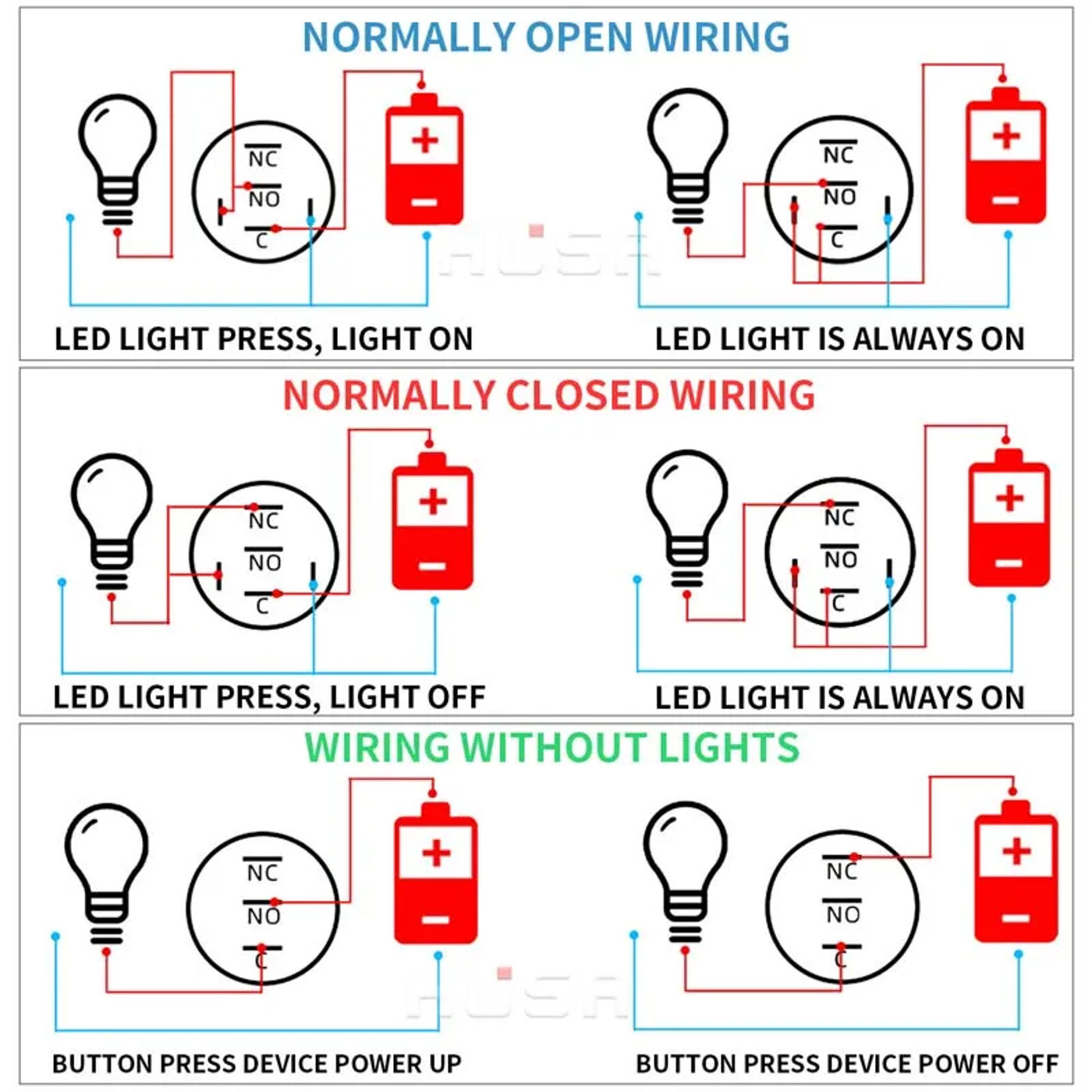

2 to connect?
1 " NO " and " C " : The circuit is alway open except press the button
2 " NC " and " C " : The circuit is alway shut unless press the button
