विवरण

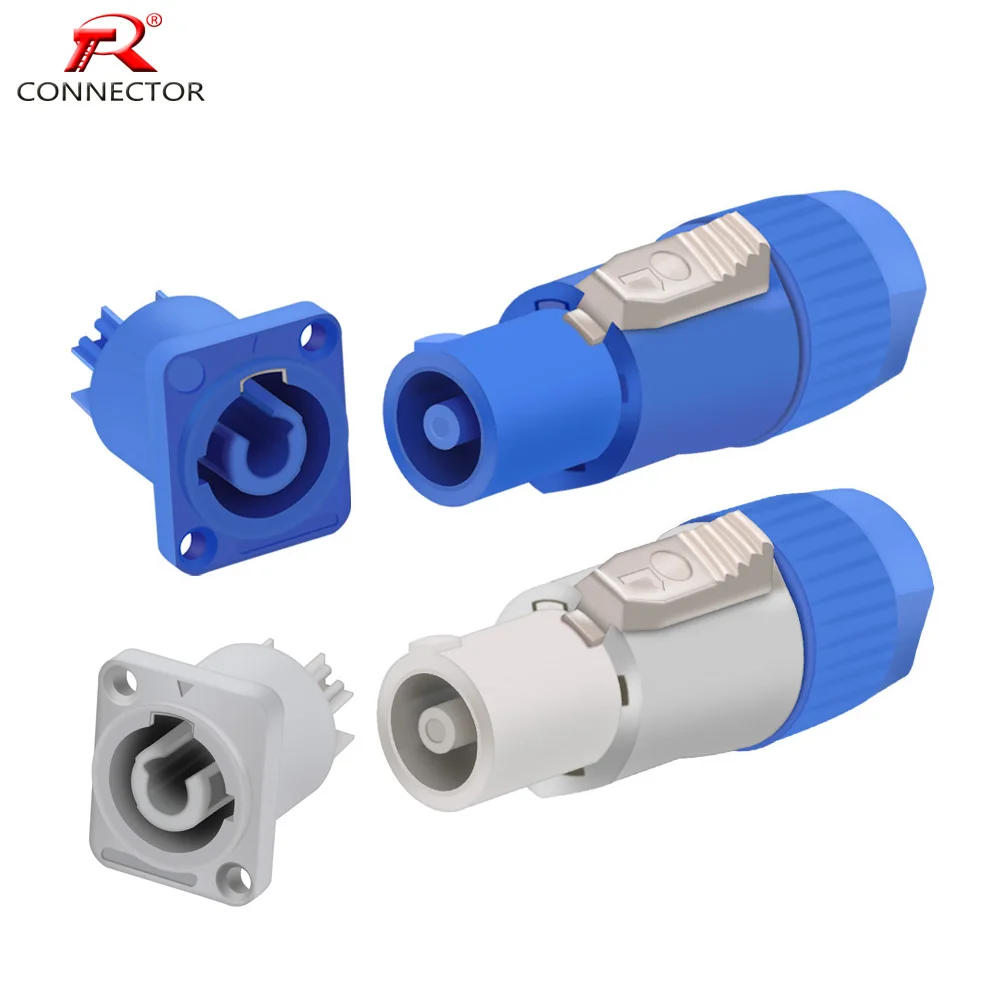

• Powercon Connector Lockable Cable Connector + Chassis Socket for Electric Drill LED Screen Stage Lighting Power Connecting Fireproof, flame retardant Power plug, safety is the key!*Name: Power set connector*Material:pure copper + ABS materials*PA66 grade, environmentally friendly*Color: Power-in(NAC3FCA+NAC3MPA-1, Blue) / Power-out(NAC3FCB+NAC3MPB-1, Light Grey)Available*WithCE/RoHSCertificate Electrical parameters:*Contact resistance (internal): <=3m ohms*Dielectric strength (external): 4/2 Kvac*Insulation resistance: >0 ohm*Electronic contact: 2P+E*Rated current:20A*Rated voltage:250VMechanical parameters:*Cable diameter: 5-12 (mm)*Service life: >1000 (based at the variety of connections) Product advantages: Its locking method is advanced to the conventional non-lockable MAIN connector Features and characteristics: *Lockable 20A/250V AC gadget coupler *Linear, uncharged and pre-grounded 3 contacts *Power input (blue) and gear output (white) have assorted lock keys to bypass quick circuit *Fast and handy rotary locking system *Ergonomic design

•
•
•
•
•
