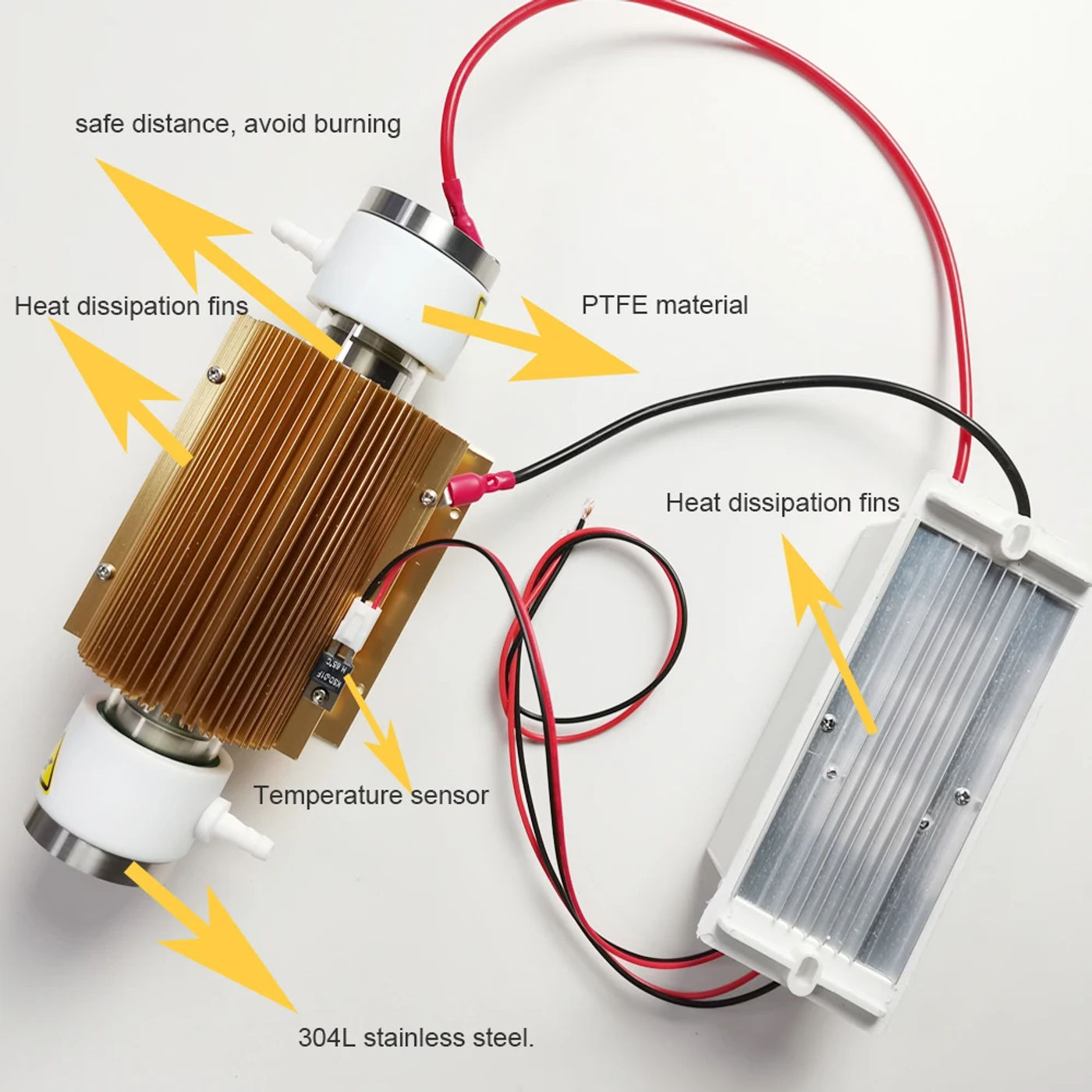

• 2023 Global Unique 10G Silica Tube Ozone Generator Prevent From Burning For Air & Water Sterilization Over Heat Protection Data sheet: Model: AW-GF-10G Input voltage:220V 50/60HZ Output voltage: 3KV Ozone output: 10g/hr If oxygen input: oxygen circulation should be lower than 2L/min If ambient air input: air flow should lower than 30L/min Power consumption: 65W Over heat protection: when tube temperature>65 degree, the mechanical device turns off robotically Over current, short circuit, open circuit defense Cooling style: air cooled At least one 120*120*38mm fan to cool down both the ability supply and the tube Gas pressure: <100kpa (1bar/ 0) Gas temperature: < 30℃ Surrounding humidity: < 70% Surrounding temperature: 5-20℃ Feature: 1 With secure distance 12mm between the edge of exterior electrode and the white PTFE terminal, it won’t collect moisture in between, easy to dry up, thus avoid burning efficiently On the opposite hand, this design makes the working situation transparent We can note the crimson corona obviously 2 Seal the internal electrode and the PTFE terminal by means of thread, no screw used Thus, it makes the inner electrode faraway from the exterior electrode, keep away from burning efficiently 3 The supporter edge is 6mm wider than the sealing edge, which makes the installation much simpler than the ancient design 4 The terminal sealing ring with thread is product of 304L stainless steel, similar to the internal electrode, which can forestall electrochemical reaction when the encircling surroundings RH more than 60% 5 The white terminal and gas nozzles are made of Pure PTFE, which is durable, anti-oxidization 6 The Internal silica tube thickness is 1, vastly save strength consumption, expand ozone output Installation: a Keeping distances: (1) Ozone tube and power pack needs to be at least5cm far from metallic box Recommend to put in them on plastic board (2) When install it within a box, the excessive voltage cables must be at the very least 5cm faraway from floor of the metallic box (3) The two high voltage cables shouldn’t be merged, crossed together, not less than 5cm away from one another (4) Other non-high voltage cables needs to be no less than 5 cmaway from the high voltage cable Other meter instruments should be at least 5cmaway from high voltage When go away factory, we preserve the high cables cable lengthy enough, when install them, please cut it as short as possible to prevent it from touching different gadgets b Ventilations: The field must have two ventilation openings One opening is subsequent to fan (the fan is to cool down the ozone tube), the other opening is to move hot air out So the two fans are blow to a similar route fan must be at least 15050 fan with air flow 130CFM c Gas nozzles: For two fuel nozzles at the tube, you possibly can take either one as air inlet or ozone outlet, no difference You can use oxygen or dry and clear ambient air as the gas source Also you may add a dry filter device, it is going to enlarge ozone tube existence span and increase ozone focus d Anti-back stream device obligatory Strictly stop water back-flow to internal ozone tube Install an anti-back stream gadget to forestall one of these situation e The high voltage cable connection Please talk over with the below Wiring photograph The purple cable connects to the terminal of the tube, whereas the black cable to connect to the gold heat dissipation fins FAQ 1 life span: 20000hrs 2 Necessary accent needed: a When air input, air pump counseled is 16-30L/min When air humdity is greater than 60%, you would like an air dryer When lower than 60%, no need air dryer When oxygen input, oxygen stream counseled is 3L/min oxygen purity recommended is more than 90% 3 Need two fans, the scale needs to be 12038 or 15050, one for the tube, the opposite for the flexibility supply four it doesn&;t need upkeep 5 when do water purification, put this machine in a higher function than the water level, and if mix ozone with water by way of venturi, set up an efficient anti-back flow machine to forestall water back circulation Can we are living within the room when ozone generator is on A: this machine ozone focus is high, so never stay within the room when it's on, whatever people or animal, shut the room, and 30mins after the purification come back, to benefit from the brand new air Brand Story We have been in ozone industry ever since 2010, Research grow and manufacturing ozone generator to satisfy the needs of environment We will not be only promoting the ozone generators, but in addition teach very closely to customers about the way to use it Because maximum clients know the function of the ozone generator, yet not very familiar about methods to function it correctly We practice an Electronic edition guide for each product we sell So we strain that visitor should learn the guide closely before putting in it, to bypass any loss and hazard

•
•
•
•
•
