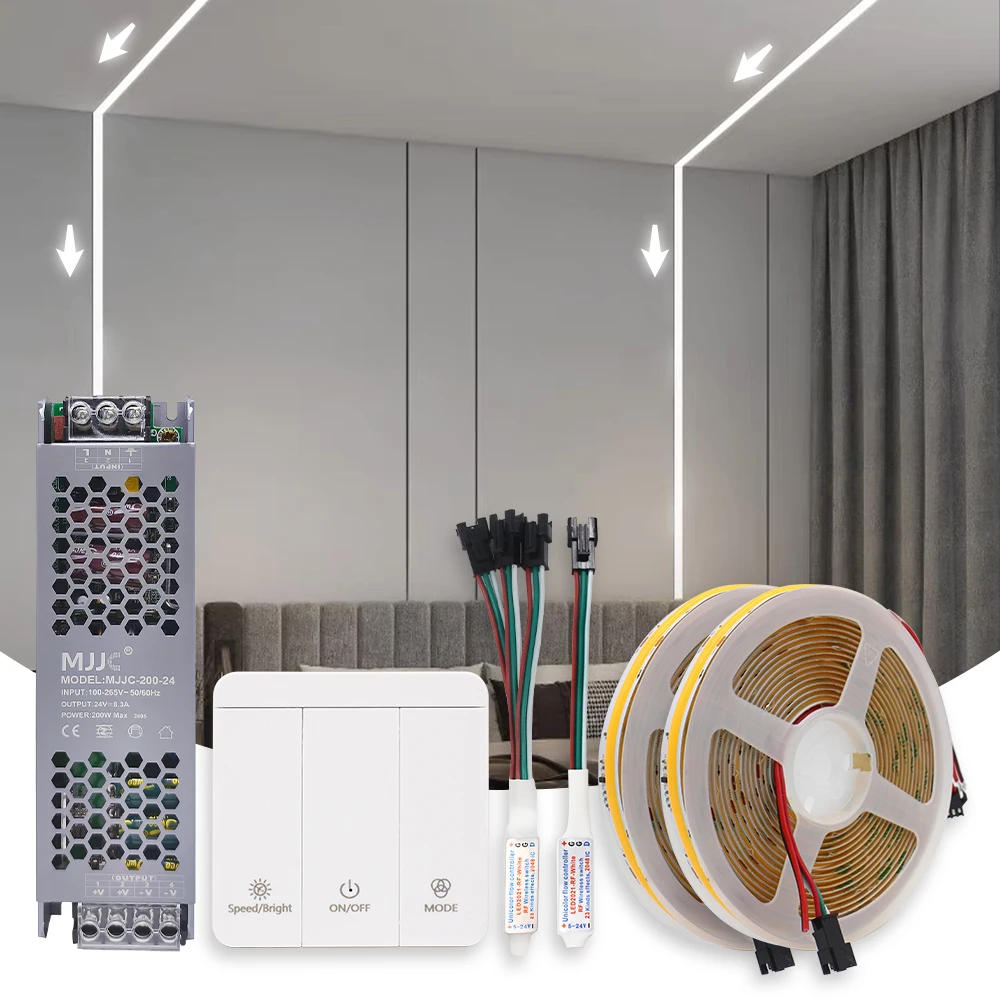

• Product Name: WS2811 IC COB Horse Race Led Strip LED Type: COB LED Diodes LED Qty: 360LEDs/M PCB width:10mm Max Power: 10-12W/M Working Voltage: DC 24V Color: Cool White / Warm White / Natural White Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K IP Rate: IP20 Non-waterproof Connector: three Pin Male Female Connector Package: 5M/Roll Connection: Red Wire: +24V Green Wire:DI/DATA White/Black wire: GND / -24V Wireless RF Controller with 3-Keys Panel Remote: Working Voltage: DC 24V Max Control Pixels: 3200 Pixels Effects Mode:Up to 23 Kinds effects. Speed and Brightness adjustable Remote: 3 Buttons, Speed/Brightness - ON/OFF - MODE Battery Powered via CR2032 Button Cell ( Battery now not included) Our controller has short-circuit protection function *** How to atmosphere pixels number? Step 1: Turn OFF the lights Step 2: Long press "Mode" keys 5 seconds,press "Speed" keys to extend the pixels quantity, Press "Mode" keys to decrease the pixels quantity. Step 3: Press " ON/OFF" to save, Exit. Default factory environment is 80pixels,max as much as 3200pixels. If you came upon some led strip isn't light, please kindly do pixel surroundings as above steps. *** How to pair Remote to the Receiver,make them working 1 to at least one independently ? Step 1: Turn OFF the power supply. Step 2: Long press "Mode"keys 3 seconds inside 2seconds after powering ON. Step 3: Sucessfully if the led strip brief flash 3 times. 1pc receiver would be managed by way of max 6pcs panel remote. *** DC 24V Power Supply: Input Voltage: 110V / 220V AC Output Votage: 24V DC Output Power: 200W /100W Features: No Noise, Real energy output, lengthy life-span. Advise: 1pc 24V 200W strength transport to strength max 15m 24v COB 360leds/m working water mild strips. if any large initiatives for longer strips, want add more 24V 100W power transport each 5m. When you chanced on the led strip gentle is flickering, please kindly upload power supply, That&;s NOT effective discipline !!!

•
•
•
•
•
