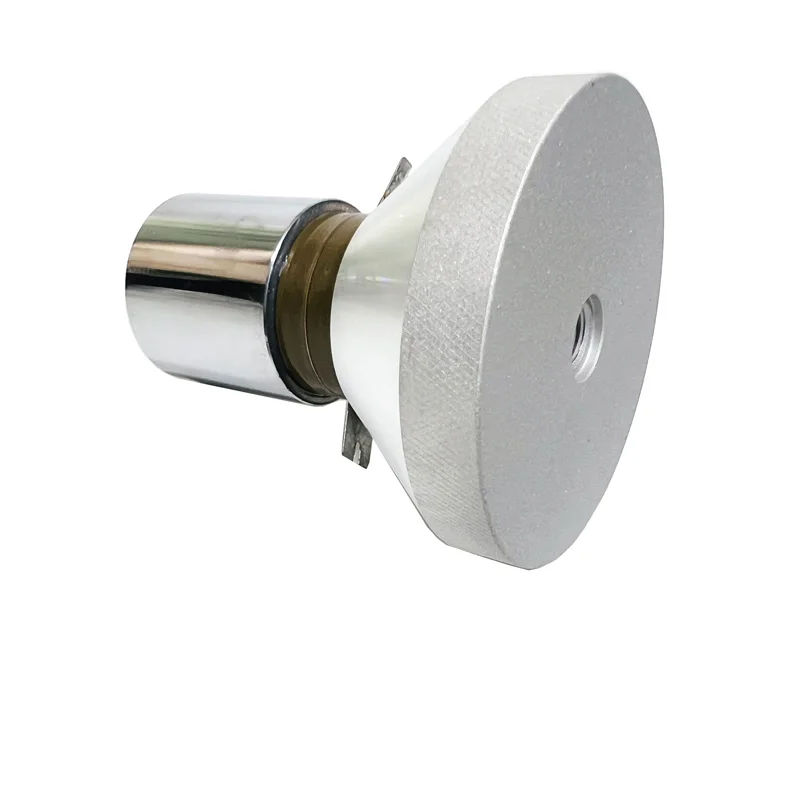

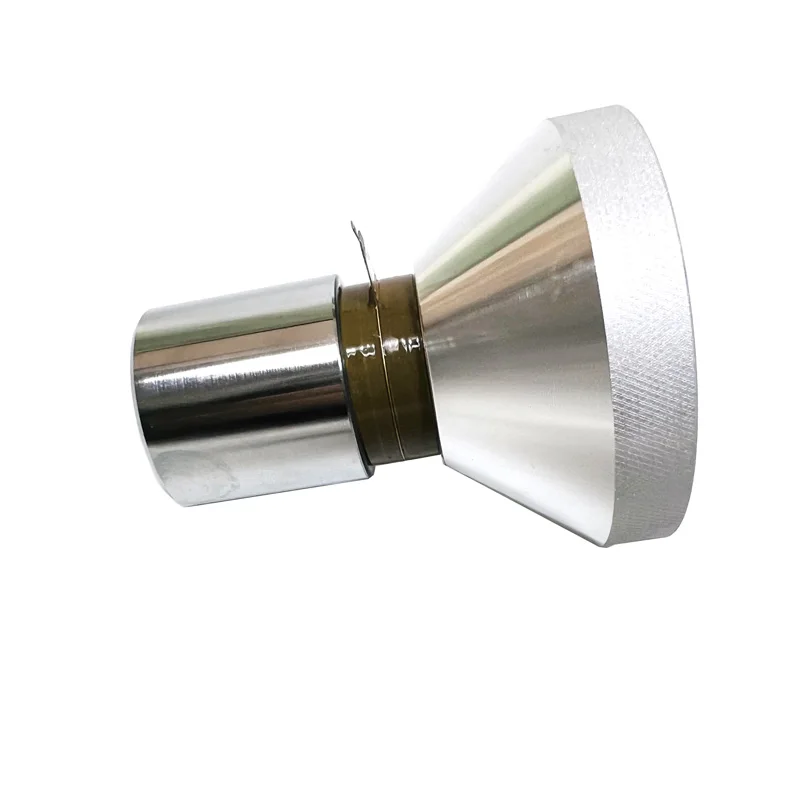

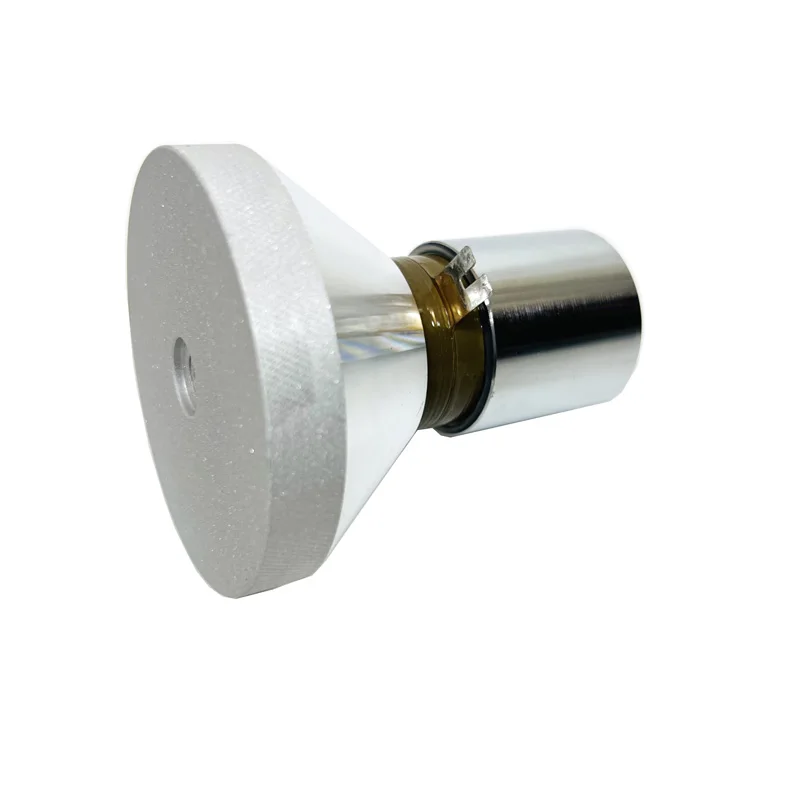

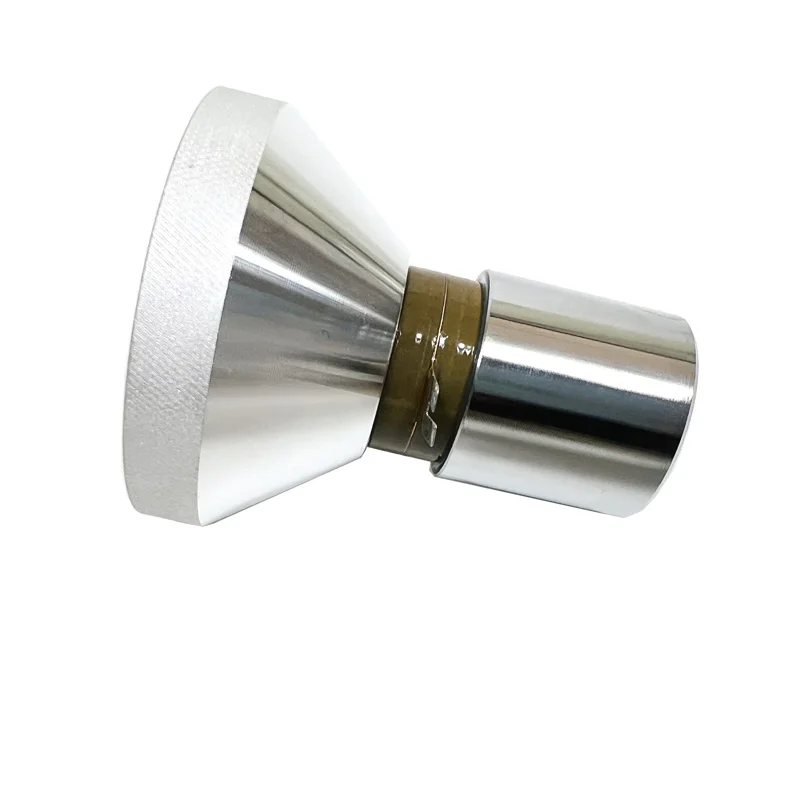

• Ultrasonic Transducer For Industrial Cleaning Machine Introduction to ultrasonic transducer: Ultrasonic vibrator, also referred to as ultrasonic vibrator, is one of those ultrasonic transducer and the core aspect of ultrasonic cleaning mechanical device Industry regular name: ultrasonic transducer, which belongs to piezoelectric ceramic material and one of the main accessories of ultrasonic cleaning mechanical device In terms of power, a single ultrasonic vibrator is 60W and 100W Frequency: 20kHz, 25kHz, 28kHz, 33khz, 40KHz, 54khz, 68KHz, 80kHz, 100kHz, 120kHz, 135KHz or higher; There are differences in shape: instantly column, horn, and so on Features of ultrasonic transducer: 1 High performance: excessive mechanical Q value, high conversion efficiency and good quality; 2 Ultrasonic vibrator transducer has large amplitude and advanced performance; three Heat resistance of ultrasonic vibrator transducer: Piezoelectric ceramic material has nice warmth resistance, can develop the temperature fluctuate of use, at the same time, the Q cost is high, the resonance impedance is small, and the warmth era is small; four The look of the ultrasonic vibrator transducer is clean, free of rust, no obvious dents and scratches The mechanism of ultrasonic cleansing transducer is to make use of the bodily results resembling cavitation, radiation stress and sound move within the cleaning liquid It can exfoliate the machinery produced via the dust at the cleansing parts, and might additionally sell the chemical reaction between the cleansing liquid and the dirt, in an effort to obtain the point of cleansing the item The frequency of the ultrasonic cleaning mechanical device could be chosen through 10~500 kHz per the scale and objective of the cleaning material, generally greater than 20~50 kHz With the increase of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used In the miniaturization aspect, radial vibration and flexural vibration are also followed Ultrasonic cleansing has grow to be extra and extra widely utilized in different industries, agriculture, household equipment, electronics, automobile, rubber, printing, aircraft, food, hospital and clinical examine Keywords of ultrasonic transducer:ultrasonic cleaning transducer,ultrasonic washing transducer,ultrasonic cleaner transducer,piezoelectric ultrasonic transducer,low frequency ultrasonic transducer,ultrasonic piezo transducer,ultrasonic bathtub transducer,piezo ultrasonic transducer,dual frequency ultrasonic transducer,multi frequency ultrasonic transducer,ultrasonic sensor,ultrasonic vibrator,ultrasonic oscillator,ultrasonic converter,ultrasonic translator,ultrasonic adopter Any adjustments within the look or inside structure of the equipment caused by upgrades or optimizations can be in line with the particular product Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance (Ω) Static Capacity (pF)±10% Input Power(W) PLS-QXHNQ20100 ninety four 900 20 10-20 5200 100 PLS-QXHNQ25100 77 710 25 10-20 6600 one hundred PLS-QXHNQ28100 66 624 28 10-20 6600 one hundred PLS-QXHNQ2560 seventy seven 530 25 10-20 5400 60 PLS-QXHNQ2860 68 470 28 10-20 3800 60 PLS-QXHNQ2850 eighty two 425 28 10-20 4100 50 PLS-QXHNQ3360 fifty eight 420 33 10-20 3800 60 PLS-QXHNQ4060 fifty six 310 forty 10-20 5400 60 PLS-QXHNQ4050 57 three hundred 40 10-20 4100 50 PLS-QXHNQ5435 36 a hundred thirty five 54 10-20 3200 35 PLS-QXHNQ6860 80 460 sixty eight 10-20 3800 60 PLS-QXHNQ68120 sixty seven 588 sixty eight 10-20 7800 120 PLS-QXHNQ8060 60 325 eighty 10-20 5400 60 PLS-QXHNQ12060 56 260 120 10-20 5400 60 PLS-QXHNQ13550 fifty four 215 135 10-20 4200 50

•
•
