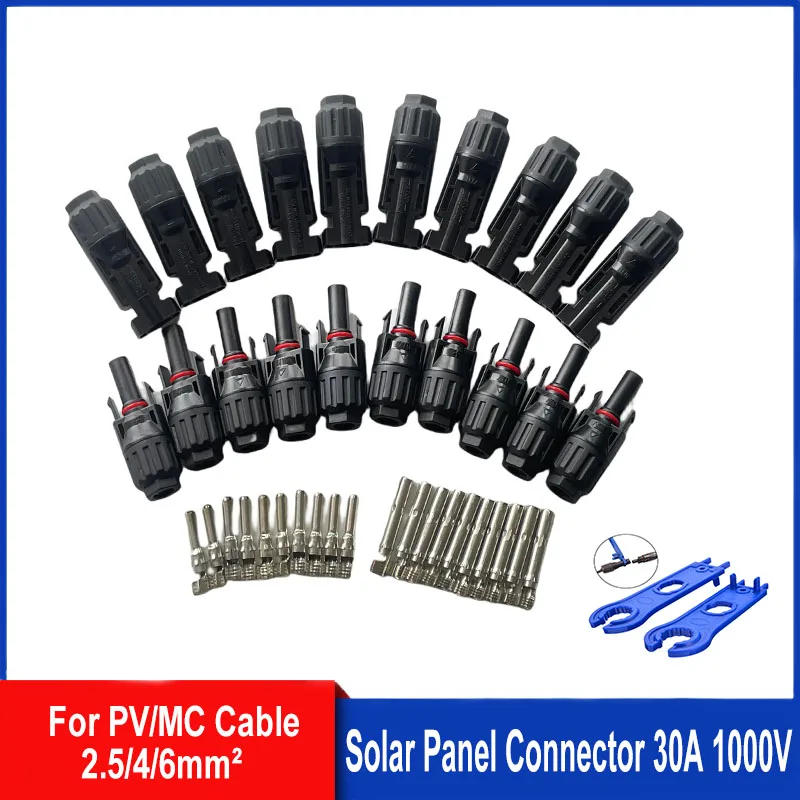

• 5/10 Pairs Solar Connectors PV Plugs 1000V 30A Solar Panel Connector Kit Available for PV/MC Cables 2/4/6mm² Product features: High Quality Material The water resistant ring on the connection completely seals out water and dust to prevent corrosion, and the PPO insulation has excellent ageing and UV resistance and has withstood more than two decades of rain, high winds and snow! Widely Compatible with Solar Cables Compatible with PV cables with diverse insulation diameters (2㎡ - 6m㎡) EASY INSTALLATION Fast and simple meeting processing and plug removal with none additional instruments IP67 Professional Waterproof Good waterproof performance for outdoor use Specification Rated current: 30A (2 - 6m m) Rated voltage: 1000V DC Connector contact resistance: ≤0Ω Waterproof rating Waterproof rating: IP67 Flammability Grade: UL94-V0 Flammability Grade: UL94-V0 Safety Grade II Applicable cable: 2㎡-6m㎡ (including AWG13, AWG12, AWG11, AWG10 wires) Adapter wire: Outside diameter: five mm - 7 mm Connector conductor material: copper, tin Connector insulation material: PPO/PPE Insertion force: lower than or equivalent to 50N Pull-out force: greater than or equal to 50N Operating temperature range: -40℃～ +85 Connection: Clamp

•
•
•
•
•
