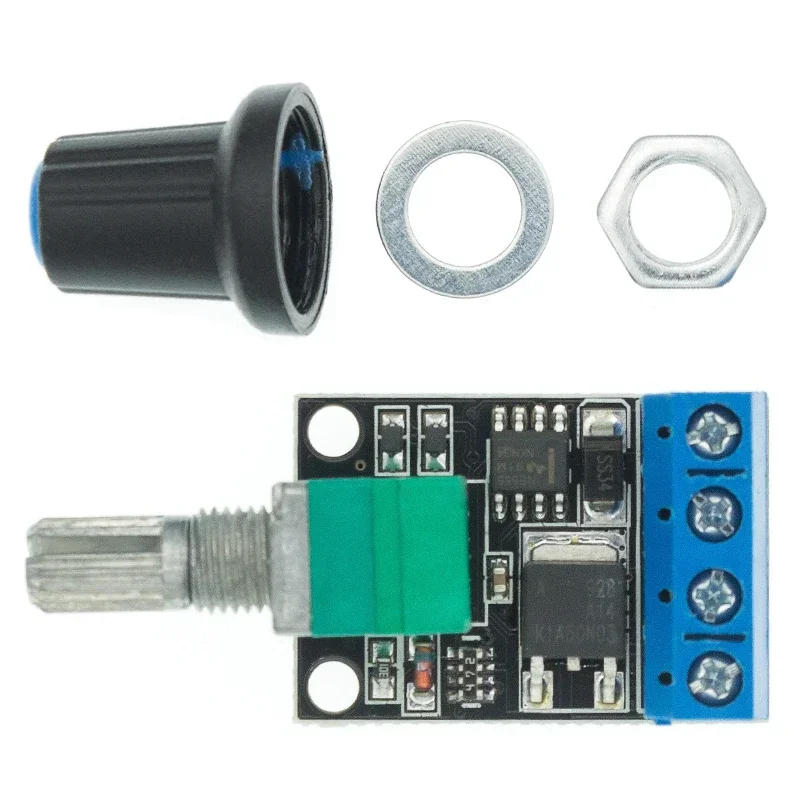

• Description: Max voltage: 16V Minimum voltage: 5V Continuous current: 10A Short maximum current: 20A (less than 10 seconds) Speed control mode: PWM stepless pace regulation, can also be used to adjust the light Control mode: pace management potentiometer (clockwise clicked open, proceed to rotate clockwise from 1% to 99% speed) Duty cycle: 0%-99% (0% function is the state of the change off when the potentiometer is maximum at the left) When the present is switched on, the zero (long time no use to change off the governor is no current) Efficiency: the utmost efficiency is as high as 98% Volume: lengthy 3cm (excluding potentiometer), broad 2cm, excessive 1 If you are utilizing the speed management (dimming) to do the product, the store can give loose Custom service, can be in response to the requirements of the shopper to modify the shape of the circuit board, installation Mode, current and voltage parameters, upload different functions, and many others Note that the governor is especially used in motor speed control, while you're used to LED dimming, should ensure that the LED also can work in direct energy supply, the dimming differ of the speed governor is from LED to LED straight linked to the power delivery is absolutely extinguished between dimming, if LED is directly linked with an influence which will burn through dimmer the dimming is burned, which generally requires a chain recent restricting resistor, once you don&;t know how much resistance can contact customer support

•
•
•
•
