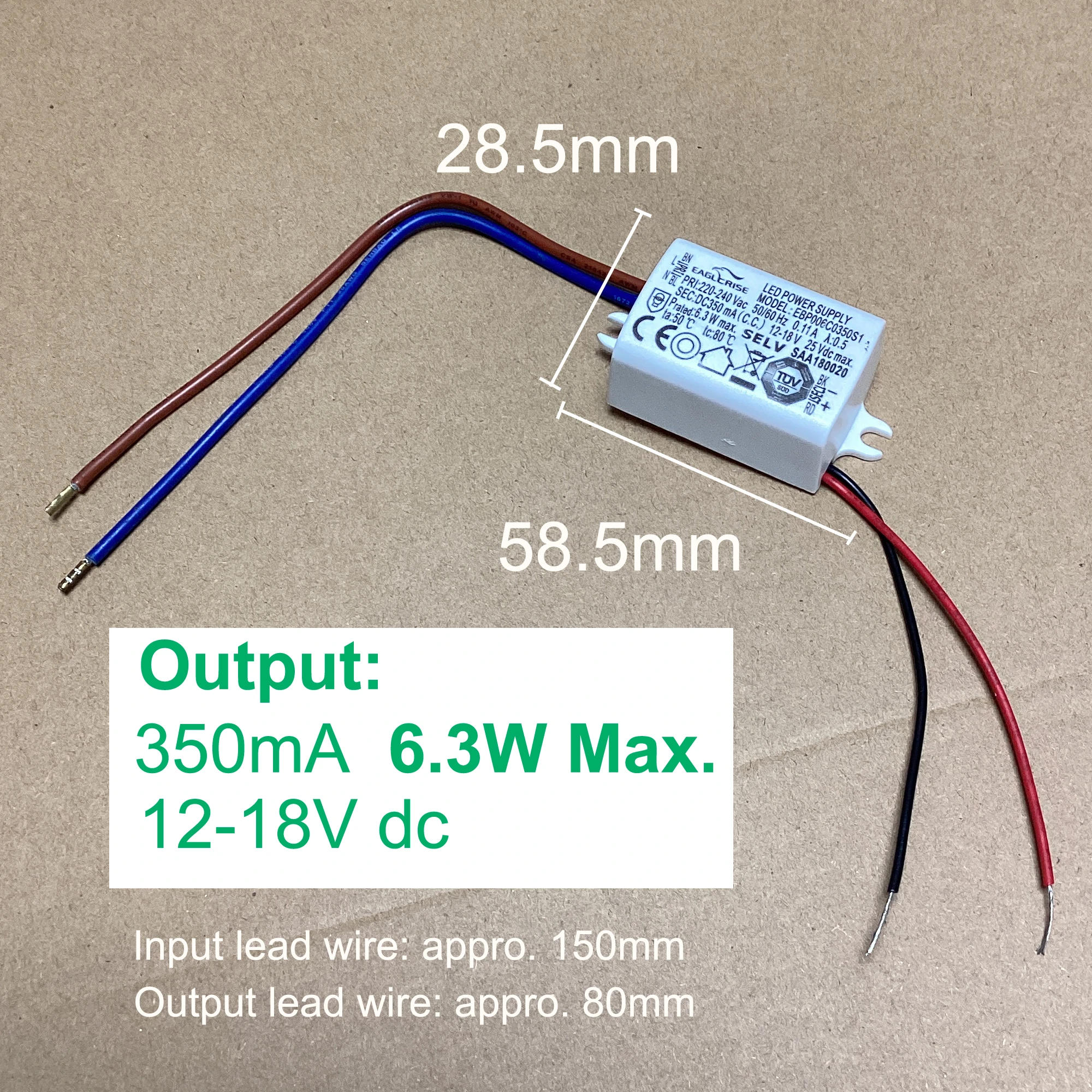

• Feature CE or SEMKO SAA safety common authorised 2 mini sizes led driver for option, appropriate for extra compact area Small size, clean to install and hide into the lamp inside Widely used for Cabinet Lights, indoor stair step lights, ceiling spotlights, small light for show Model list: 1) EBP006C0350S1 PF: ≥0: 78%Current output: 350mAVoltage output: 12-18VNo load voltage: ≤25VPower output range: four 2) EBP006C0500SS PF: ≥0: 78%Current output: 500mAVoltage output: 6V-12VNo load voltage: ≤18VPower output range: 3W-6W Specification Input voltage range 220-240V ACFrequency vary 50-60HzPower aspect >0 recommendations NoneInrush Current ≤ 16A/100us (230VAC, Full-load)Current Accuracy ±5%Started Delay Time ≤0 Ripple ±5%（Imax-Imin）/（Imax+Imin）Protection Short Circuit / Overload / No-load Insulation voltage I/P to O/P , 3KVac/1minInsulation resistance >100M ohm @ 500VDCUnit weight 25gTHD ≥15%Ta /Operation Temperature -25…+50℃Tc /Enclosure Temperature 80℃Connection Method Direct LeadInstallation Build-inLife Time 50000h @ Ta/Tc More particulars Class Ⅱ Driver◆ safety compliance, electromagnetic compatibility (EMC)◆ lengthy life design, five years warranty What is the standard for the ability element of LED lamps? At present, there is not any particular common for LED According to industry regulations, the power aspect of lamps beneath 5W isn't always required, and if it exceeds 5W, it must reach more than 70% The current lamps are made in keeping with visitor requirements, for example, the flexibility ingredient required by way of the power supply department of the customer’s location Specifically, lamps with low power have a lower energy element and have little influence at the strength grid Because the flexibility is small, it'll not cause any harm If the ability factor of high-power lamps is low, the affect at the strength grid might be large Because of the high power, it might cause vast kit loss, overload of power equipment, risky power grid, harmonic pollution, and so on Usually, the ability of an LED lamp isn't instantly associated with its energy component The energy element of the LED lamp depends upon the structure of the using circuit of the lamp With diverse circuit structures, the using strength could be the same, however the strength element is different

•
•
•
