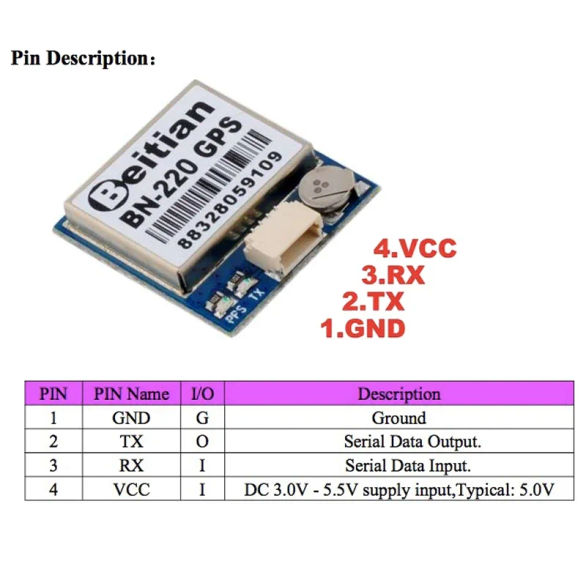

• Beitian GPS Module BN-180 BN-220 BN-280 BN-880 GLONASS with Antenna for Pixhawk Flight Controller Package Includes Bundle 1 1 x BN-180 GPS Module 2 x 15cm Cable OR Bundle 2 1 x BN-220 GPS Module 2 x 15cm Cable OR Bundle3 1 X BN-280 GPS module 1 X Cable OR Bundle four 1x BN-880 GPS Module 1x 15cm Cable OR Bundle5 1 X 6 in 1 CP2102 Serial Module 1 X 4P female to feminine dupond cable Description BN-180 GPS Module Specification Electrical Characteristics Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1 Channels : 72 Searching Channel Sensitivity Tracking : -167dBm Reacquisition : -160dBm Cold delivery : -148dBm Hot delivery : -156dBm Accuracy Position Horizontal : 2 m CEP 2D RMS SBAS Enable (Typical Open Sky) Velocity : 0/sec 95% (SA off) Timing : 1us synchronized to GPS time Acquisition Time Cold Start : 26s Warm start : 25s Hot birth : 1s Data and Update Rate Support Rate : 4800bps to 921600bps,Default 9600bps Data Level : TTL or RS-232,Default TTL point Data Protocol : NMEA-0183 or UBX, Default NMEA-0183 Single GNSS : 1Hz-18Hz Concurrent GNSS : 1Hz-10Hz,Default 1Hz Operational Limits Altitude : 50,000m Max Velocity : 515m/s Max Acceleration : Less than 4g Power intake VCC : DC Voltage 3,Typical: 5 Current : Capture 50mA/5 Operating temp : -40 °C ~ +85°C Storage Temp : -40°C ~ +105°C Indicator : TX LED:blue records output, TX LED flashing PPS LED:red LED no longer vibrant when GPS not fixed,flashing when constant Wiring: GND,TX output,RX input,VCC(3) BN-220 GPS Module Dimension : 22mm*20mm*6mm Module Weight : five Connector : 1 spacing between the 4pins patch seat Specification Electrical Characteristics Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1 Channels : seventy two Searching Channel Sensitivity Tracking : -167dBm Reacquisition : -160dBm Cold beginning : -148dBm Hot beginning : -156dBm Accuracy Position Horizontal : 2 m CEP 2D RMS SBAS Enable (Typical Open Sky) Velocity : 0/sec 95% (SA off) Timing : 1us synchronized to GPS time Acquisition Time Cold Start : 26s Warm delivery : 25s Hot beginning : 1s Data and Update Rate Support Rate : 4800bps to 921600bps,Default 9600bps Data Level : TTL or RS-232,Default TTL point Data Protocol : NMEA-0183 or UBX, Default NMEA-0183 Single GNSS : 1Hz-18Hz Concurrent GNSS : 1Hz-10Hz,Default 1Hz Operational Limits Altitude : 50,000m Max Velocity : 515m/s Max Acceleration : Less than 4g Power consumption VCC : DC Voltage 3,Typical: five Current : Capture 50mA/5 Operating temp : -40 °C ~ +85°C Storage Temp : -40°C ~ +105°C Indicator : TX LED:blue data output, TX LED flashing PPS LED:red LED not vivid when GPS now not fixed,flashing when constant Wiring: GND,TX output,RX input,VCC(3) BN-280 GPS module Description: Receiver mode:GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS Frequency:GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1 seventy two search channel Baud rate :4800bps-921600bps, 9600bps via default Output level :TTL or RS-232,TTL through default Output settlement :NMEA-0183 or UBX,NMEA-0183 by means of default Single :GNSS:1Hz-18Hz Standard :GNSS:1Hz-10Hz,1Hz by way of default Size :28*28*10 mm Module pin 1,Sec pulse will output after positioning, pulse era is 1s, excessive level persists 100 ms, used for formulation synchronization 2 ,connect to the floor three data output of module four information input of module 5, 3,recommend five 6 BN-880 GPS Module Power Supply:DC Voltage 2~6,Typical:3 or five Consumption:Capture 50mA@5V Receiving Format: GPS, GLONASS,Galileo,BeiDou,QZSS and SBAS Receiving Channel:72 Searching Channel Receiving Sensitivity:Trace -167dBm , Capture-148dBm Positioning Time:Cold Start: avg26s , Warm Start: avg25s, Hot Start: avg3s Level Positioning Precision: 2m At Open Wind Output Frequency:1Hz-10Hz,Default 1Hz Speed Precision: 0 m/s (Without Aid) Acceleration Precision :0 m/s (Without Aid) Dynamic Characteristics:Max Height:18000m, Max Speed:5153m/s,Max Acceleration:4G UART Interface:UART Port:TXDA and RXDA Support Rate:4800bps to 115200bps,Default 38400dps Working Temperature:-40℃-+85℃ Storage Temperature:-40℃-+85℃ Size:28mm x 28mm x 10mm Weight:10g The Module's Pins:SDA,GND,TX,RX,VCC,SCL Features: GPS Module,Dual Module Compass With electronic compass IC HMC5883L 1 spacing between the 6pins patch seat Note:Can now not use for flight management with SCM, nevertheless it is acceptable for Open supply flight controller GPS Program Set up documents and instructions:Please click here BN-880 GPS Configuration information 6 in 1 CP2102 Serial Module USB to TTL 485 three 5V Description: Core chip: CP2102 Small size:3 X 1,8CM Compatible with 3 and 5V Power suppy output Overcurrent defense TTL point interface RS232 point interface RS485 level interface Four point can replace freely High-speed conversation DTR,RTS sign

•
•
•
•
•
