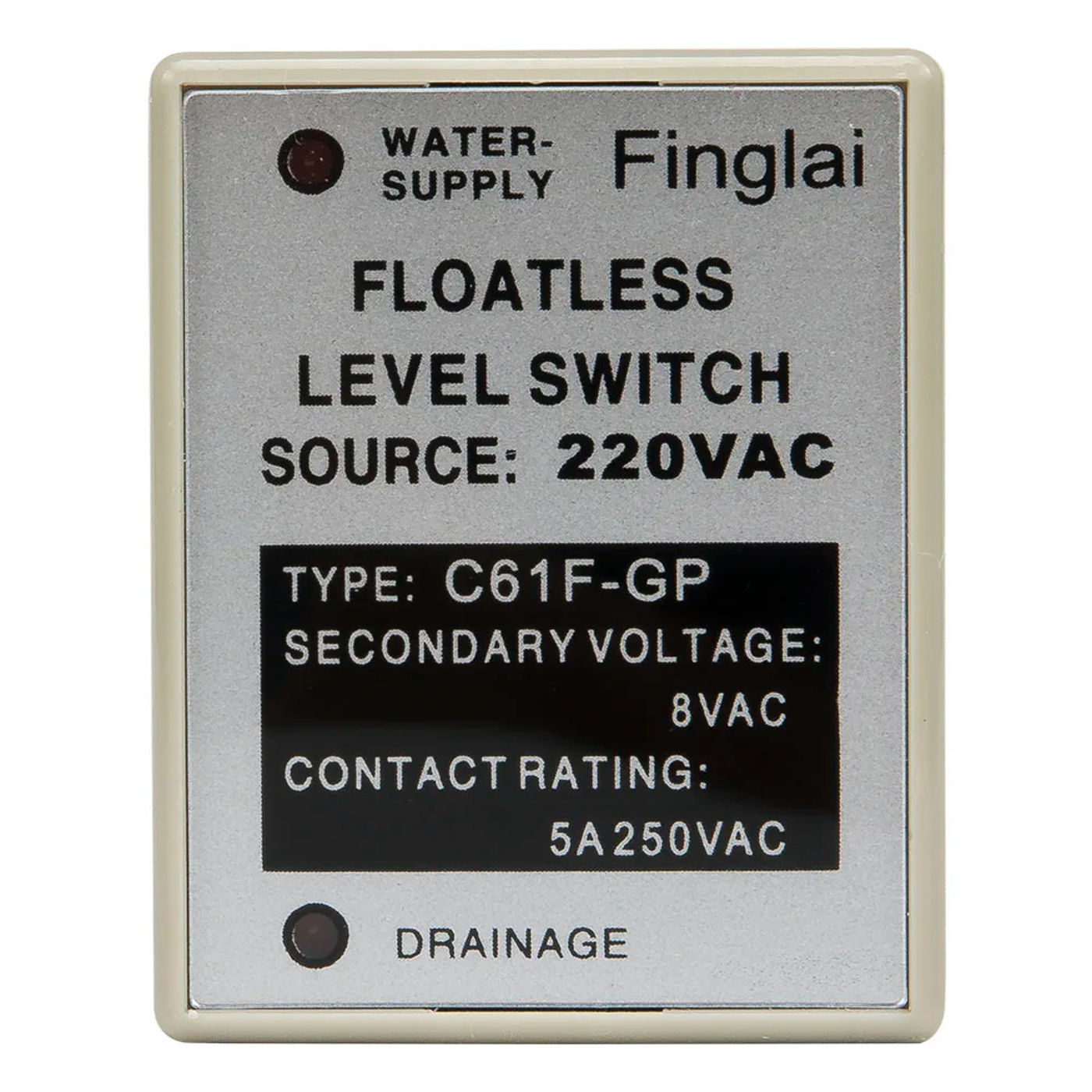

• C61F-GP floatless level relay▇ Model quantity and sensing mode Model quantity Sensing mode Related product C61F-GP General Visiting ▇ C61F-GP floatless point relay mannequin quantity legendC61F-GPParent Model Number-NSocket-N: Without socket-S: With socket-P: Without socket and case220VACSupply voltage220VAC: 220VAC110VAC: 110VAC12VDC: 12VDC▇ General Model quantity C61F-GP Rated supply voltage 110, 220Vac, 50/60Hz; 12Vdc Operational voltage fluctuate 85% to 110% of rated voltage Interelectrode voltage 8Vac Interelectrode function resistance zero to approx 4kΩ Interelectrode release resistance Approx 15 ok to ∞Ω Response time Operate: 80 ms max; Release: 160 ms max Contact rating 5A at 250Vac Matched socket PF083A Matched probe FFRA01 Life expectancy Mechanical—5x106; Electrical—1x105 Insulation resistance 100 MΩ min (at 500 Vdc) Dielectric strength 1500Vac, 50/60 Hz for 1 min Power intake Approx three VA max Cable length 1Km max External dimensions (HxWxD) 61x49x70mm Operational Temperature -10 to +55°C Operational humidity 85% RH max Alias name C61F-GP floatless level controller ▇ C61F-GP floatless level relay connected products No Model Number Socket Supply Voltage Related Product 1 C61F-GP-N220VAC Without socket 220VAC Visiting 2 C61F-GP-N110VAC Without socket 110VAC Order three C61F-GP-N12VDC Without socket 12VDC Order four C61F-GP-S220VAC With socket 220VAC Order 5 C61F-GP-S110VAC With socket 110VAC Order 6 C61F-GP-S12VDC With socket 12VDC Order 7 C61F-GP-P220VAC Without socket and case 220VAC Order Product manual: C61F-GP floatless point relay manual: www/att/comp/fl-en/relays/floatless-level-relays/C61F-GP/C61F-GP:If you are convinced to our product and service, please depart a 5 superstar nice feedback, we very recognize it If not, please contact us first, we are able to try to remedy your issue
