विवरण

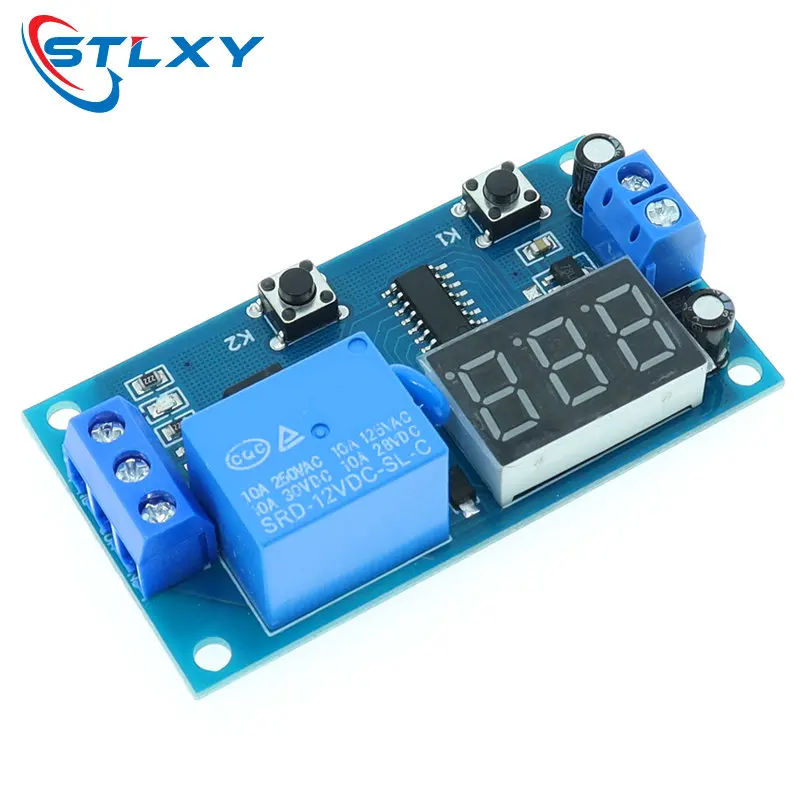

• Features: 1: Size: 65mm*36mm*18mm 2: Output capacity: DC DC 5~30V AC 220V10A 3: Quiescent current: 20mA Operating current: 50mA 4: Working voltage: DC12V (the fluctuation between 10V and 15V are usually not affected) There is one other 5V optional,please depart a message for 5V 5: Service life: more than 100,000 instances Working temperature: -40~85&;C 6: The output adopts optocoupler isolation to reinforce the anti-interference means strength consumption,ensure stability,industrial grade circuit board,PLC-like,set parameters can be remembered all the time after strength off Setting the time method is also very simple: K1 is divided into six cycles,the first three times are the time to set the connection,and the final three times are the time to set the disconnection 1/The first time you press K1,the digital tube begins to flash At this time,press K2,the hundred digits change,and set the value you need; 2/ The second time K1 ten electronic tube begins to flash,press K2 at this time,the ten digits change,set the value you need; 3/The 1/3 time,press the K1 digit electronic tube to start flashing At this time,press K2,the digit price changes,and set the worth you need; Thus the time atmosphere of the 1st group is finished 4/The fourth time,press the K1 hundred digit electronic tube to start flashing At this time,press K2,the hundred digits change,and set the worth you need; 5/The fifth time,press K1 ten digital tube to begin flashing At this time,press K2,ten digits change,set the price you need; 6/The sixth time,press the K1 digit electronic tube to start flashing At this time,press K2,the digit value changes,and set the value you need Then the second set of time settings is done 7/The 7th time K1 is pressed,the digital tube is not flashing,and the setting is done When the electronic tube is not flashing,press K2 to shift the decimal point; Xxx After the decimal place,the unit of time is: minute Xxx has no decimal level display,representing the time unit: seconds Xx After the decimal level is ten,the unit of time is: zero second Press and keep K2 to turn the electronic tube on or off to reduce power intake

•
•
•
•
•
