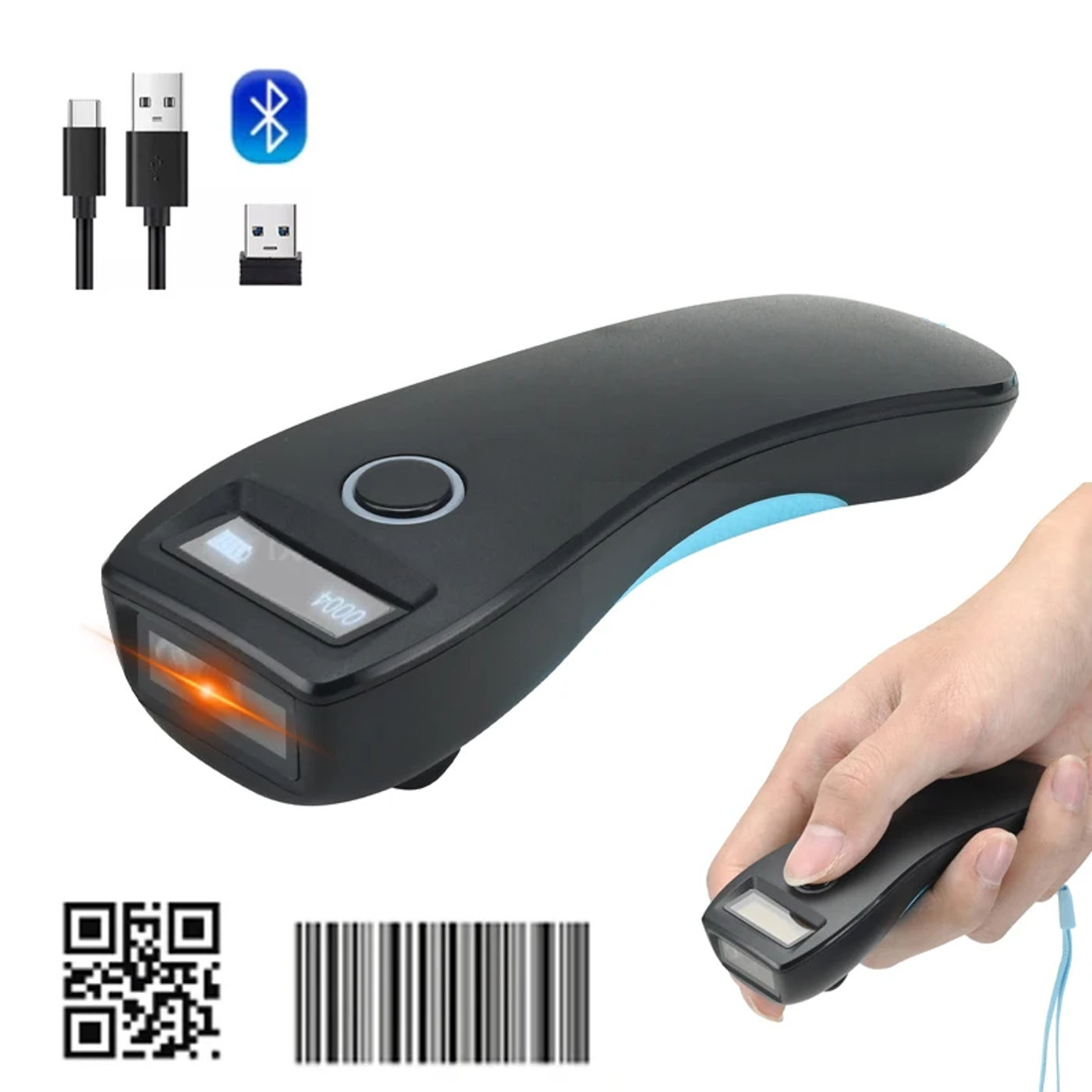

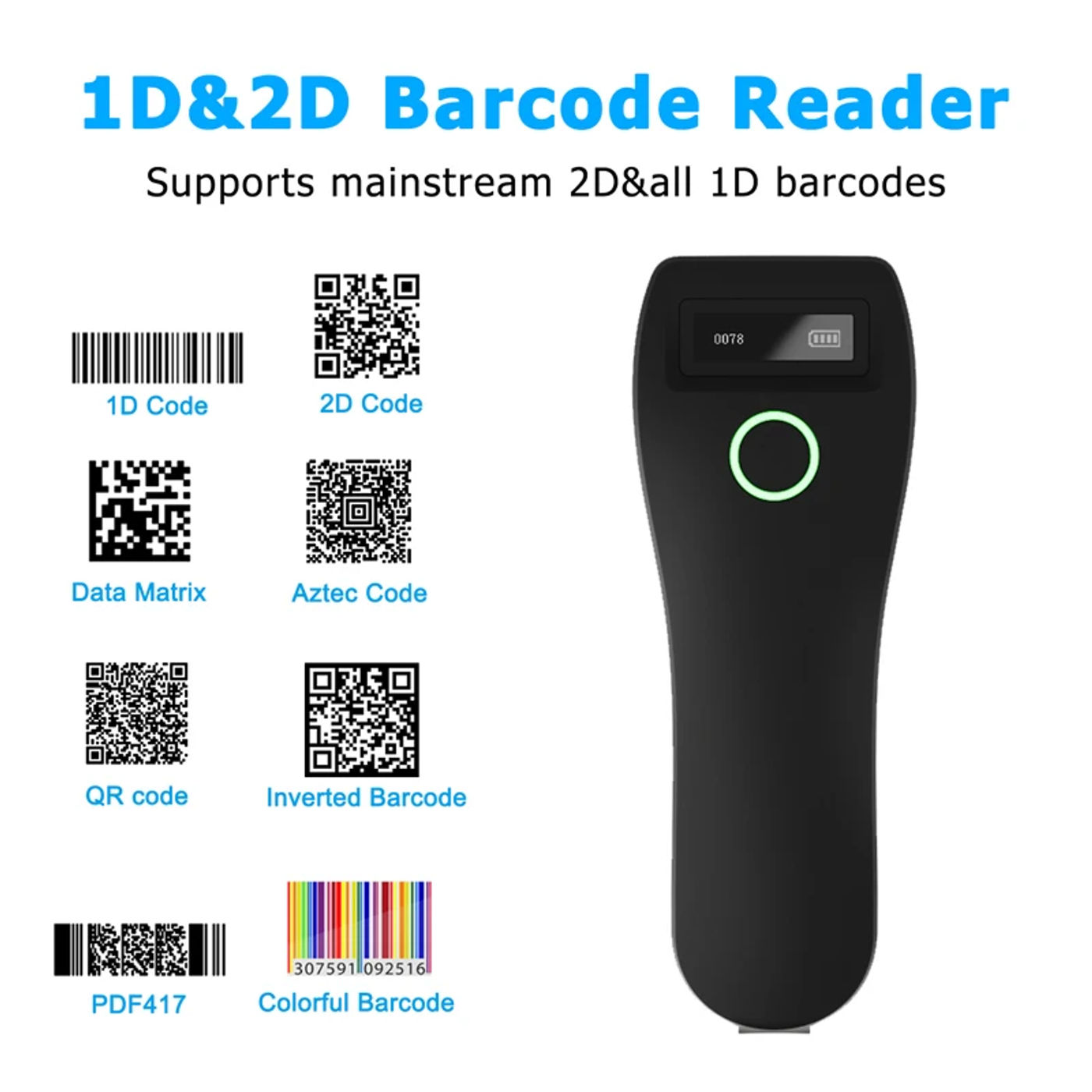

• C70 Technical parameters Physical parameters Scan mode Key trigger/auto-sensing/continuous scanning Communication interface USB-HID keyboard/USB-COM virtual serial port/RS232 serial port (optional) Interface variety USB TYPE-B Prompt mode Buzzer, LED light, vibration motor How it's set up Manually scan the setup codes one after the opposite Housing material ABS+PC Exterior dimensions 122mm×42mm×30 Weight 60g Performance parameters Sensors 300,000 Global CMOS Resolution 640*480 Light source White LED Scan attitude ± 60°, ±60°, 360° (elevation, declination, rotation) Scan charge 120 fps Field of view 48° (H) x 30° (V) Printing contrast Minimum 15% Decoding type 1D:EAN- 13，EAN-8，UPC-A，UPC-E，ISSN，ISBN，CodaBar，Code 128，Code93，ITF- 14，ITF-6，Interleaved 2 of 5， Industrial 2 of 5，Matrix 2 of 5， GS1 Databar(RSS)，Code 39，Code 11，MSI-Plessey，etc 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc, assist mobile display studying Minimum resolution 1D code 3MIL; QR code 5MIL Depth of area QR (15mil) 30~210mm QR charge code (mobile code) 80~550mm Data Matrix(10mil) 30- 140mm PDF 417(6) 50- 120mm EAN-13 (13mil) 50~280mm Code 39 (8mil) 30- 190mm Code 128 (15mil) 80~320mm Electrical parameters Input voltage DC 5V±10% Current Working: 350 mAh; Standby: 130 mAh Battery 900mAh lithium-ion battery Charging time About 2 hours Battery existence 5 days (standby), 12 hours (working: scan every 5 seconds) Environment parameters Temperature 0°C-50°C (working); -40°C~+60°C (storage) Humidity 5%-95% non-condensing Ambient brightness Max,000 Lux (fluorescence) Seismic resistance It can withstand a drop in the air of one

•
•
•
•
