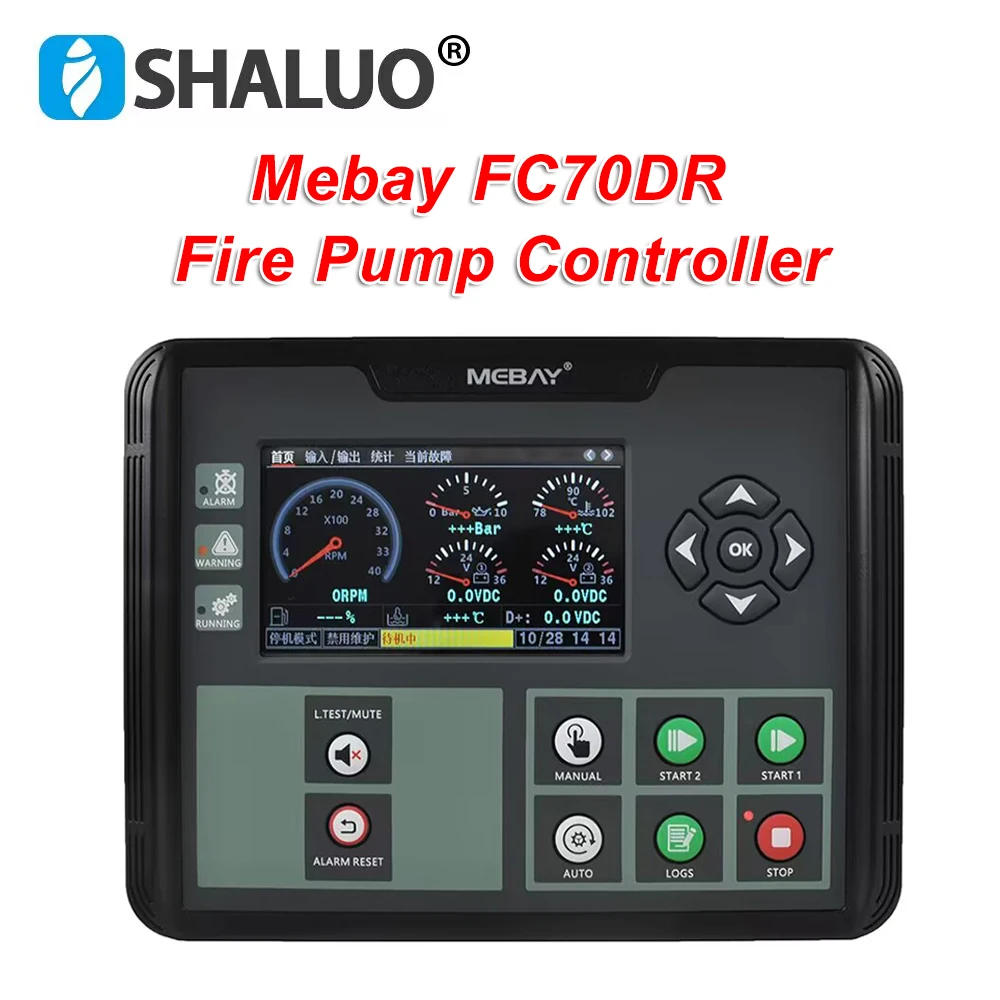

• Summary: This controller is used for hearth pump models driven via diesel engines, which hasthe applications of parameter setting, start, stop, parameter monitoring, fault monitoring and protection 4 inch LCD screen reveal with brand new UI design is adapted on this controller can reveal connected parameters directly The LCD display screen can reveal different faults on the similar time Once the unit doesn't run normally, it's going to effectively achieve protection There are Chinese/English interface options, extra language could be set according to user’s request All the parameters could be configured during the front face buttons or use programmable interface by way of RS485 or USB to regulate via PC Main Features : 32bit excessive functionality unmarried chip microcomputer 4 inch LCD screen, Available in Chinese/English languages, user’s language set if essential Indicator and number demonstrate via UI surface Acrylic material is tailored to protect the screen Silicone panels, waterproof, oil-proof, UV-resistant, nice operation feel and long provider lifestyles USB Port: parameters would be set even without strength by way of USB port to monitor in genuine time With RS485 conversation port, can obtain "Three Remote" purposes through MODBUS protocol Standard CAN communication port, integrated J1939 protocol Various styles of parameters reveal Input/output function, fame can be shown straight More categories of floor atmosphere Real time clock inside: preset time function and auto maintenance is accessible Genset working plan could be set as per week or month Three class protection countdown function, which can set the maintenance time or date The black box operate can save the applicable parameters of the unit when the fault alarm occurs in genuine time, and it is convenient in finding the cause of the fault Totally eleven relay’s output, among which 7 relay output would be self-configurable, each relay could be set as max 50 applications With 6 switches input, up to 40 applications elective 4 sensor simulation input connectors, four enter types is configurable and various styles of units could be set 2 voltage sampling aspects of battery packs and 1 voltage sampling facets of battery charger 2 battery packs would be switched to begin the unit Battery charging management function,which can protect the battery in line with battery voltage reputation Sensor would be self-defined via front face button or PC application Various of crank situations (RPM, External input , Oil Pressure,) could be selected Control Protection: Auto Start/Stop of unit, excellent failure exhibit and defense Standard water-resistant rubber gasket The water-resistant can reach IP65 Module design: All the connections are tailored with European connectors in order that installation, connection, fix and substitute can be more easily Parameters Display:  Engine RPM  Engine oil strain  Engine water temperature  Engine gas level  Engine battery voltage 1  Engine battery voltage 2  Raw water temperature  Charging voltage  Total Crank instances  Current running time  Total operating time  Maintenance word  6 switches input repute demonstrate  Output status show of 11 relays Protection:  Over speed  Under speed  RPM Lost  Low oil stress  High Engine water temperature  Low Engine water temperature  Low gas point  High raw water temperature  Low uncooked water temperature  External real-time alarm  Sensor Open  Primary\Secondary \Third maintenance expire  ECU alarm failure  ECU verbal exchange Failure  Low water point alarm  Crank failure  Stop Failure  Over battery voltage  Under battery voltage

•
•
•
•
•
