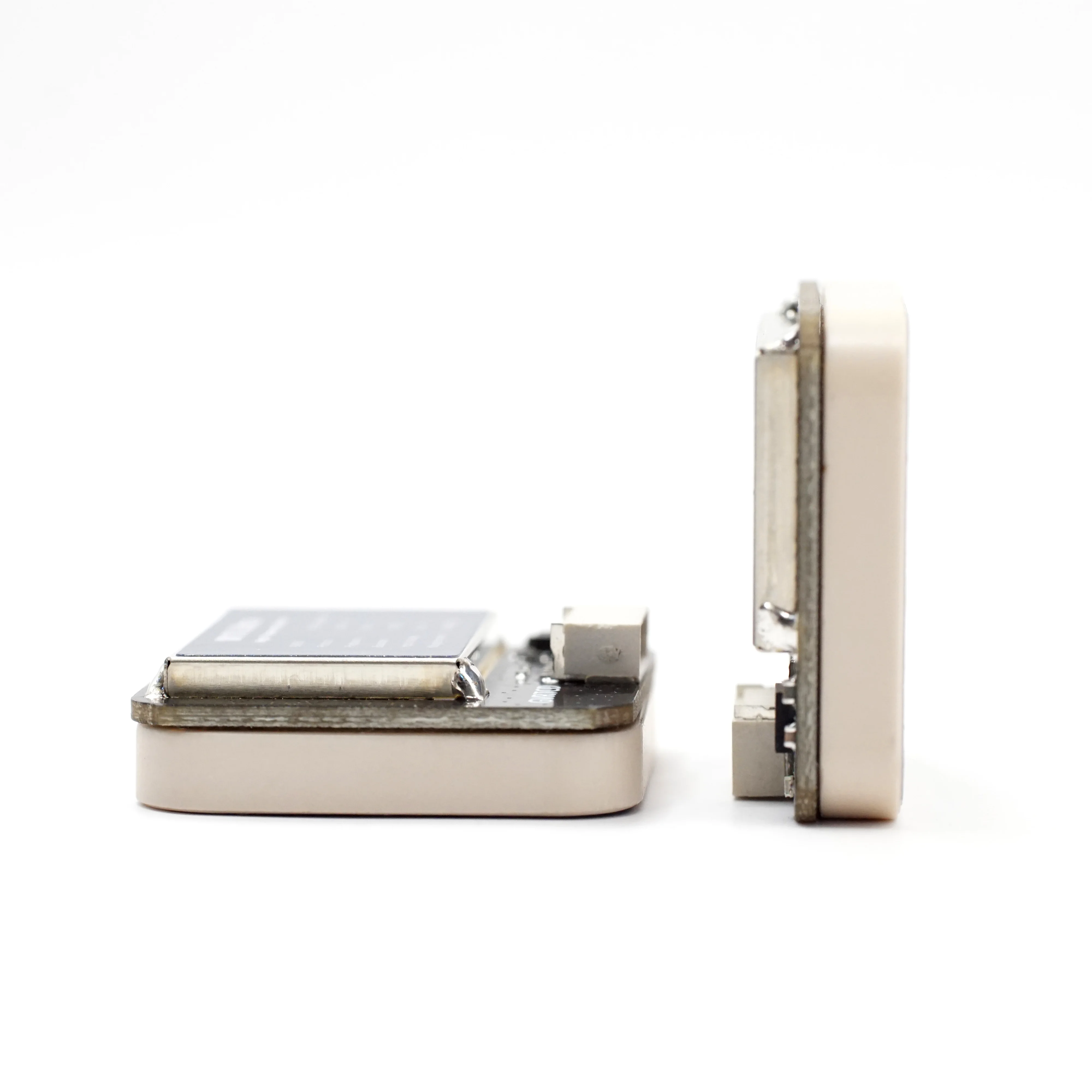

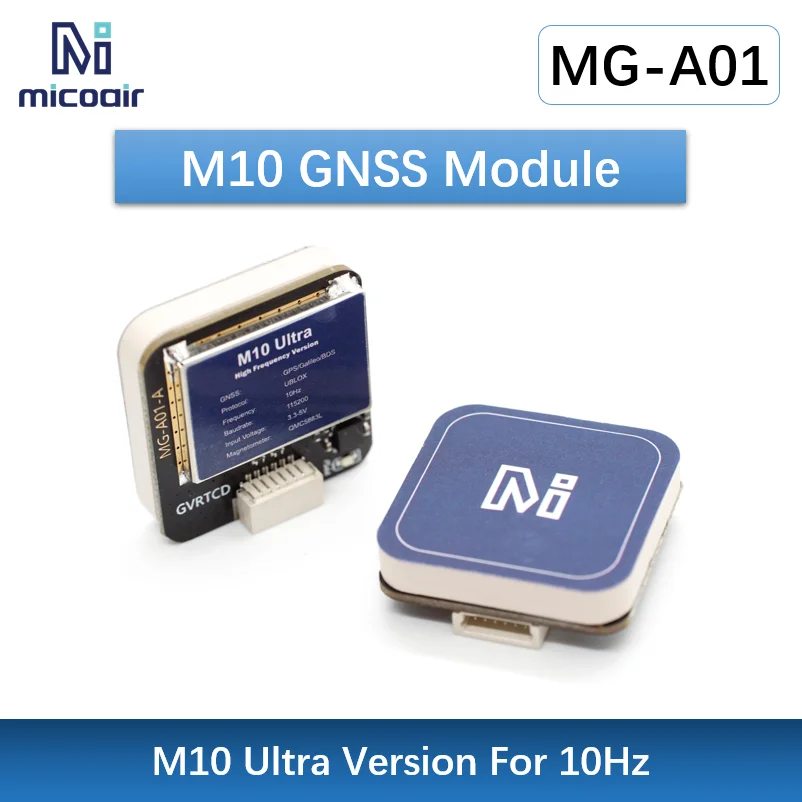

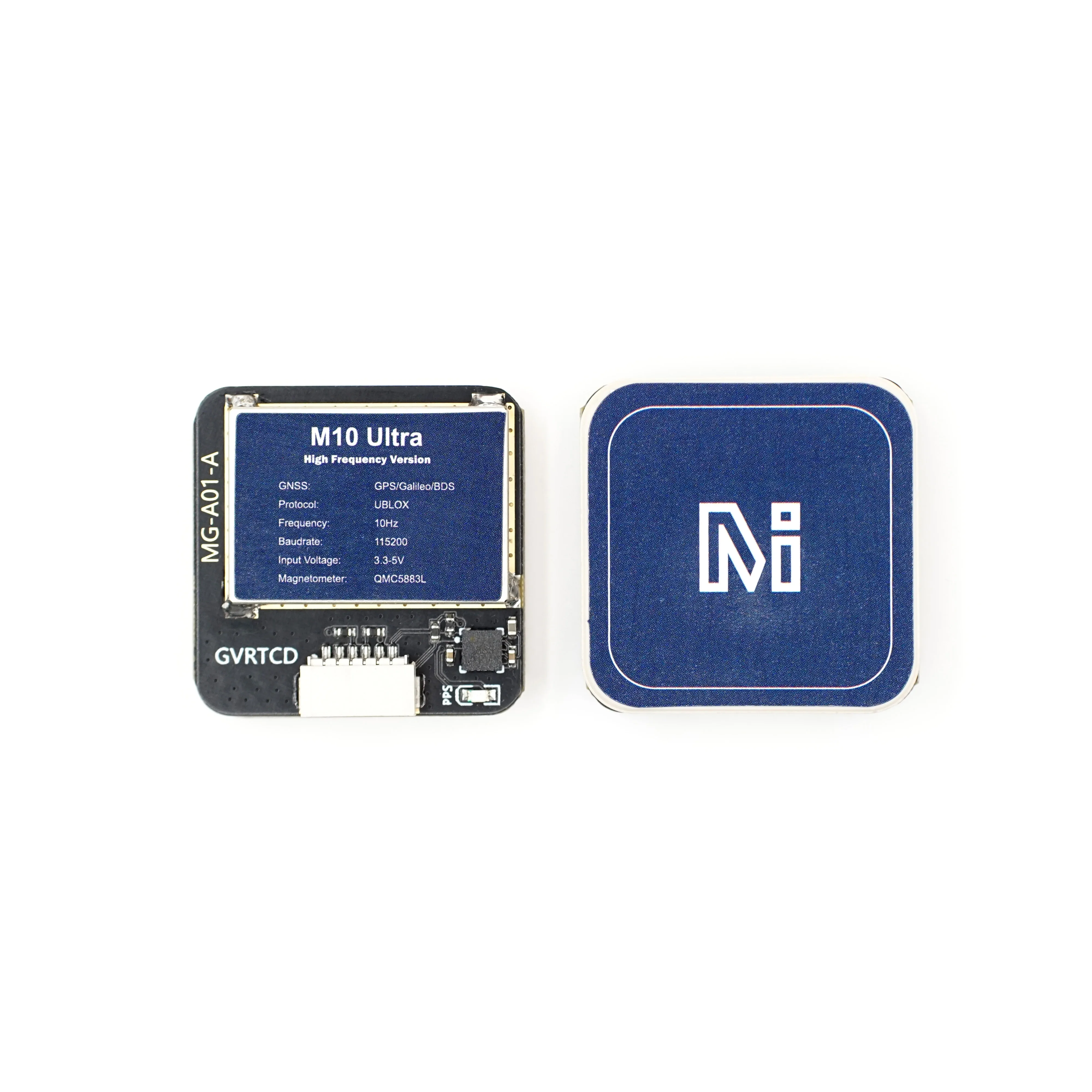

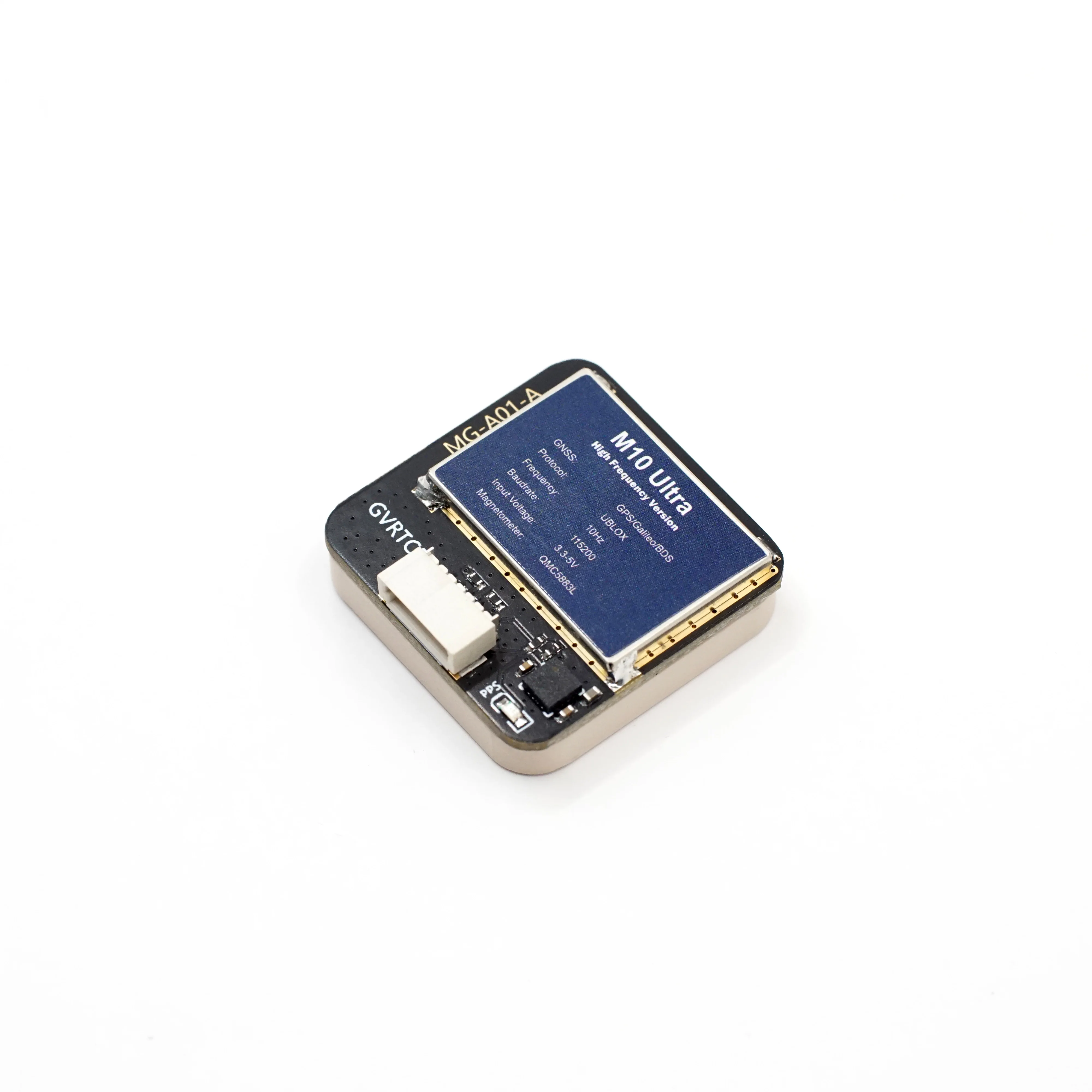

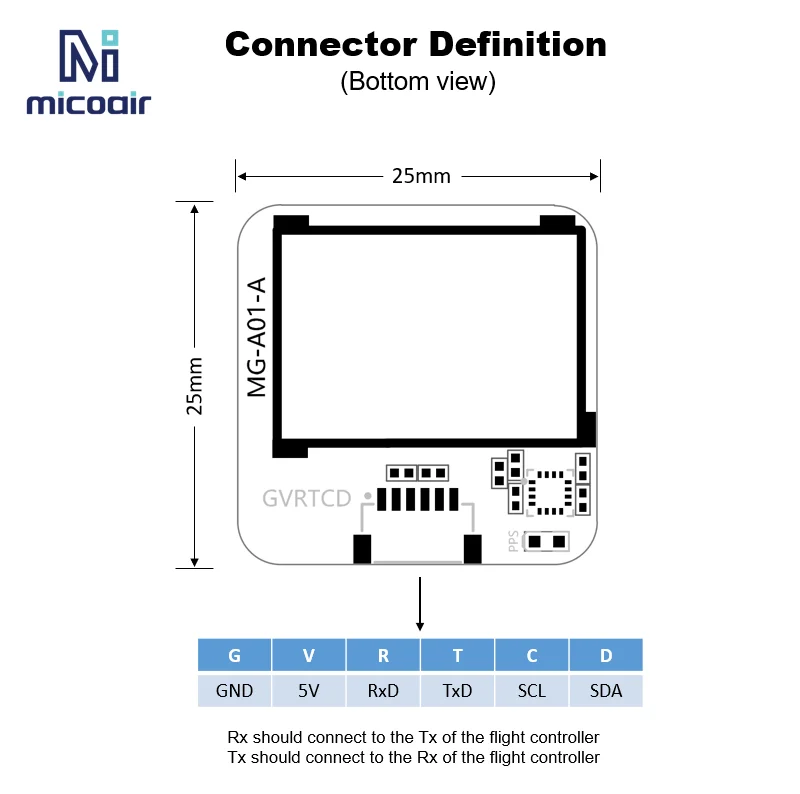

• The distinction between M10 and M10 Ultra: The normal edition of M10 can only reach a 4-5Hz navigation rate, even if the update interval is decided to 100ms And the M10 Ultra version can guarantee a 10Hz navigation charge Get more product element from our website: MG-A01 module makes use of multi-constellation GNSS chip powered by M10050 MG-A01 supports concurrent reception of GNSS (GPS, GLONASS, Galileo, and BeiDou) The excessive variety of seen satellites enables the receiver to pick the finest indicators This maximizes the position availability, in particular under not easy situations such as in deep city canyons Super-S (Super-Signal) technology affords tremendous RF sensitivity and can upgrade the dynamic role accuracy in non-line-of-sight scenarios The high-gain 25 x 25 x 4 mm antenna from CIROCOMM gives the finest functionality for GNSS receiver The omnidirectional antenna radiation pattern will increase flexibility for device set up GNSS M10050 (GPS, GLONASS, Galileo and BeiDou) Magnetic Compass QMC5883L Patch antenna 25*25*4mm Input voltage range: 4~5 (5V pad/pin) Power consumption: 30mA UART baudrate: 115200 default Operating Temperatures: -20~80 °C UART(TX, RX) interface for M10050 I2C(DA, CL) interface for Compass QMC5883L SH-1 6P connector ,1 pitch GNSS PPS LED, Green (Solid ON after powering on, blinking(1Hz) when GNSS get 3-D fix) Protocol: UBX(u-blox) 10Hz@GPS+GAL+BDS or NMEA 1Hz 25mm*25mm*8mm 12g

•
•
•
