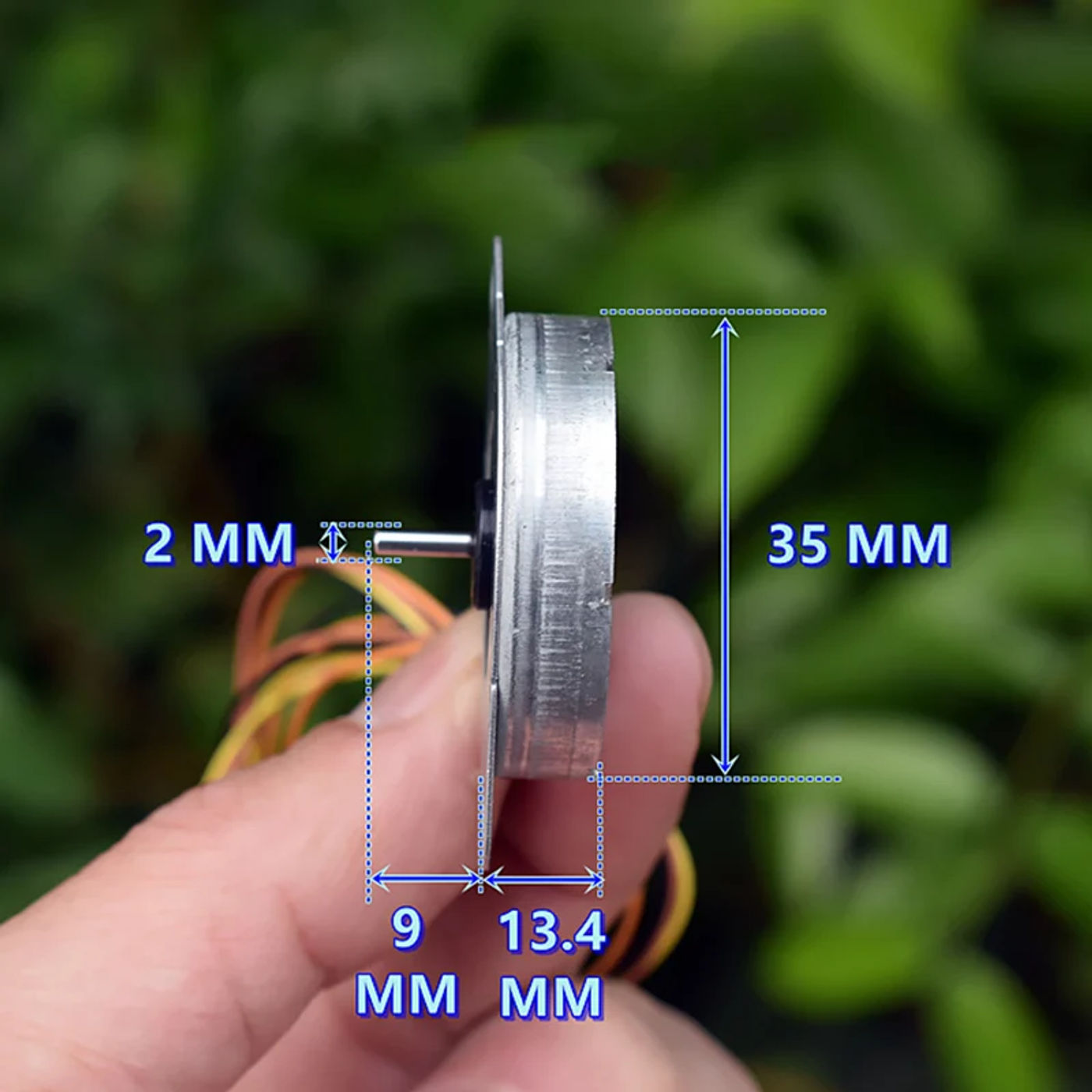

• Specification: Brand new MOATECH extremely thin around 35mm stepper motor, 2-phase 4-wire, step angle is 3 degree The thickness of the motor is barely thirteen mm, which is awfully suitable to be used in narrow areas In addition, the rotation attitude of the stepper motor is managed by way of pulse signals, and is always utilized in precision instruments, electronic appliances and many others 1: MOATECH 2: SP-35RC-810S 3 diameter: 35mm four thickness: thirteen five shaft diameter: 2 6 shaft length: 9mm 7 length: 400mm 8: 36g nine type: 2-phase 4-wire stepper motor 10: Orange crimson line: A+, Yellow line: A -, Brown line: B+, Black line: B- eleven resistance: about 23 ohms 12@6V short circuit current: zero 13: There isn't any news on the stock of motors We only estimate in line with its inner resistance price of 23 ohms It is acceptable for phase voltages of 5V-12V, and is more suitable for medium velocity pulse indicators Its using current is set zero We additionally don't realize the right utilization method of this kind of stepper motor Buyers must understand the know-how themselves as a way to help the bidding We can't present technical support Please perceive =========================================== Package List: Stepper Motor x 1pcs (Model A or Model B)

•
•
•
•
•
