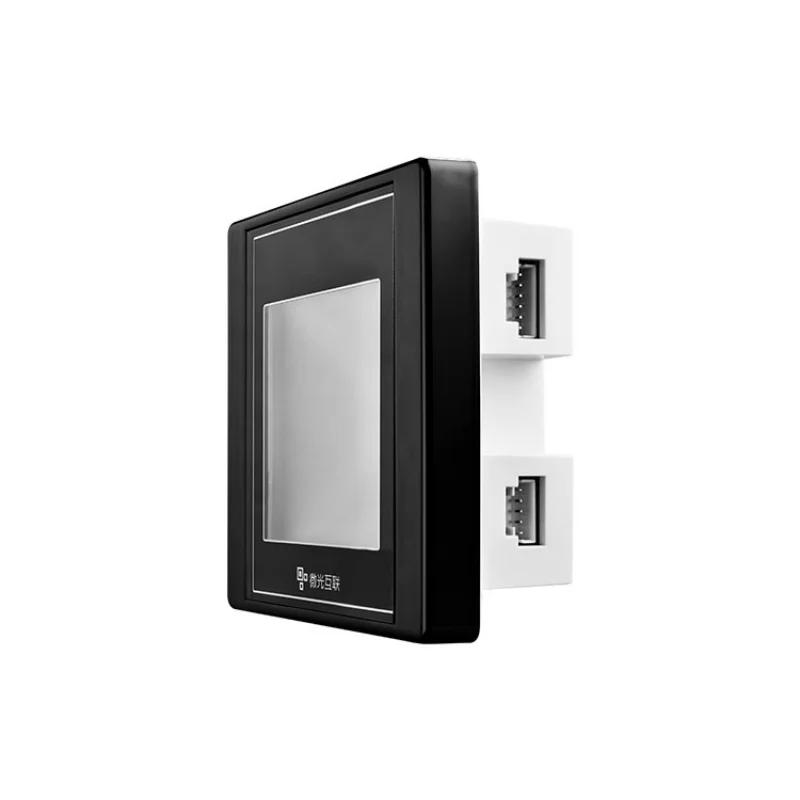

• Product Description  MX86 Series barcode barrier gate barcode card reader barcode door lock Parameters   Specification Parameters of MX86 series Working voltage 4.7V ~ 15V Working latest 150mA@5V Reading course 360 diploma Reading distance 0-10cm Reading velocity 70ms per time Scanning suggestions   Buzzing indication Decoding mode   Image-based decoding engine Imaging sensor   640*480CMOS Reading accuracy ≥5mil Light source LED diffuse illumination, white gentle fill-in light, red and green light indicator, blue mild indicator Applied environment Temp range -20-70 ℃;Relative humidity 5%~95% Compatible System  Windows (XP,7,8,10), Linux, Android, Mac, etc. Symbologies  Two-dimensional: QR Code, Data Matrix, etc. One-dimensional: EAN-8, EAN-13, ISBN-10, ISBN-13, UPC-E, UPC-A CODE39, CODE93, CODE128, Interleaved2 or 5, etc. Development interfaces USB-HID development, serial verbal exchange advancement (provide C/C++, C#, Java, DELPHI SDK) Output mode USB, RS485, RS232, TTL, Wiegand, WiFi Card swiping supports Supporting  NFC sweep card;support ID card, NFC phone, non-contact IC card, M1 induction card,etc. Recognizable radio frequency  ID card,Mifare_UltraLight, Mifare_One(S50), Mifare_One(S70), Mifare_Pro(X), Mifare_Desire. Size  86*86*39mm Weight  128g Material PC Recognition Window material  Tempered glass Indicator three Scanning function Automatic Scanning energy intake 0.75W Recognition Window length 50*50mm Wireless help WIFI module would be added

•
•
•
•
•
