विवरण

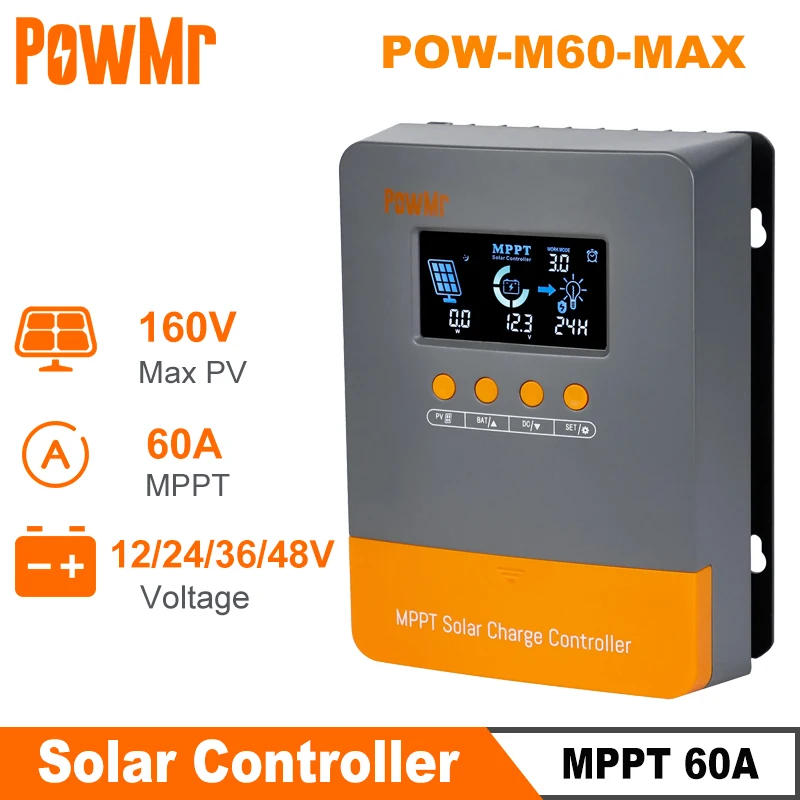

• Newest PowMr MPPT 60A Solar Charger Controller 12V 24V 36V 48V Max PV 160V Solar Panels Regulator Lithium Battery Activation Model POW-M60-MAX PV Input Max Open Voltage of PV Module 160Vdc Max Input Power:For 12V system For 24V systemFor 36V systemFor 48V system720W 20-80Vdc;1440W 37-105Vdc;2100W 50-160Vdc;2800W 72-160Vdc Charge Mode Charging Technology MPPT Charge Algorithm 3-Stage Nominal System Voltage 12V/24V/36V/48V Battery Voltage Range 9~70V Rated Charging Current 60A Conversion Efficiency ≤98% MPP Tracking Efficiency >99% Self-consumption zero DC output Rated Output Current 25A Max DC Output Current 30A Max Capacitive Load Capacity 10000µF Environment Operating Temperature Range -35℃~+45℃ Humidity Range ≤95%，Non-condensing Altitude <3000m General Specification Protection Class IP32 Dimension 230*165*72mm (9*6*2) Net Weight 1 (3lbs) Excellent Heat Dissipation & Multiple Protections MPPT 60amp Controller is manufactured from die-cast aluminum, which ensures very best heat dissipation to minimize power loss In addition, the multiple protections constructed into the photo voltaic price controller can be certain that the controller is protected against Reverse Connection, Overcurrent, Short-circuit, and Over-temperature 99% Tracking Technology MPPT 60A Solar Charge Controller with progressed Maximum Power Point Tracking technology can consistently song the array’s maximum energy point to get the maximum amount of energy to payment the battery The tracking efficiency is not less than 99% and height conversion efficiency is as much as 97% Wide Range Voltage/Power Support 60a Solar Controller supports High PV Input Power/Voltage The charger controller can accept Solar voltage as much as 190V When battery is 12V system: Suggest Solar energy 720W, suggest range: DC20V~DC80V; 1440W 37~105V when in 24V; 2160W 50~160V when in 36V; 2880W 72-160v when in 48V Compatible with Multiple Batteries Negative grounding design controller safer, 60a charge controller Compatible with a variety of 12/24/36/48V batteries(lead-acid and lithium, User customize); Sealed, Gel, Flooded and LI (LFP) battery charging parameter pre-set, other battery can be custom-made charging parameter consistent with your need adapt a 4-stage battery charging set of rules for rapid, efficient, safe charging(Bulk Charge, Boost Charge, Float Charge, and Equalization) 0 layer MPPT Charge Controller Equipped with zero LED screen, which might display the popularity of PV input voltage/power, battery voltage, charging current, charging power, and the button can be used to change the battery&;s type Easy to understand the controller&;s working state and job in one look A very detailed LCD display and 4 buttons make this photo voltaic controller very simple to use Fast provider help and Simple and detailed wiring directions are available

•
•
•
•
•
