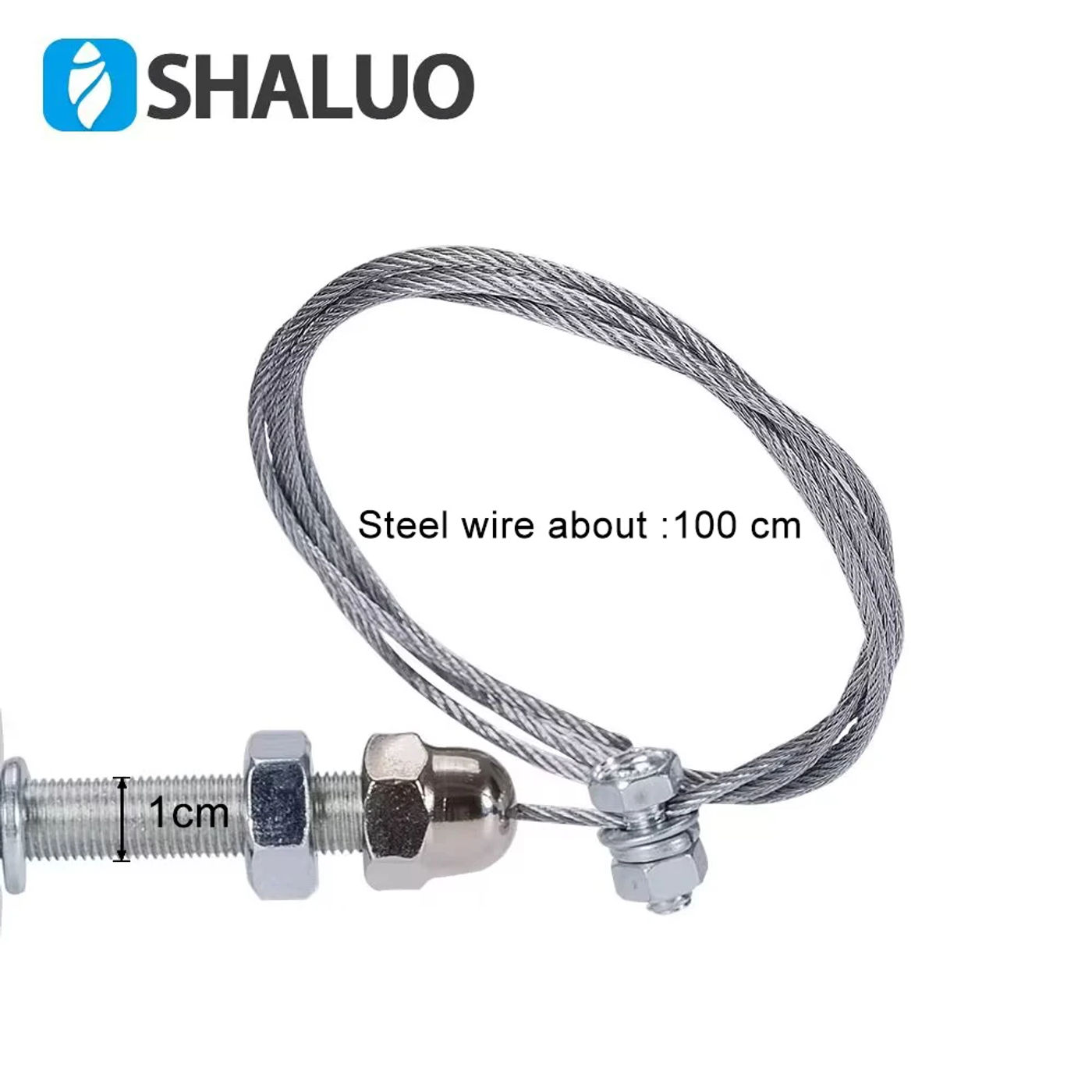

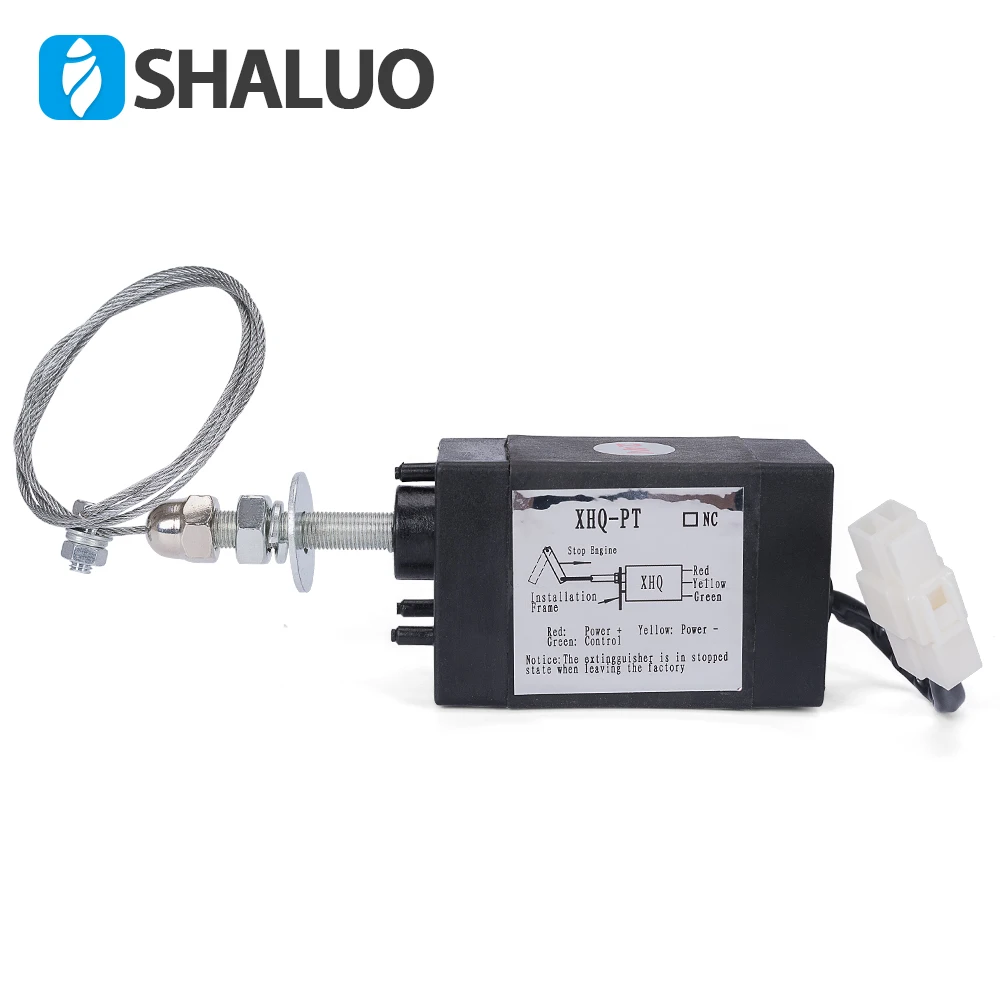

Normal Open 12V 24V Engine Flame Out Device Off Valve XHQ-PT- NO The look of standard shut and common close are the same, just difference: regular open stype:NC (),When energy on, it will pull when strength off, it'll push traditional shut stype:NC (√),when energy off ,it will pull When strength on,it will push One: technical parameter The aim of working voltage: 12V (9-15V DC) 24V (18-30V DC) Purpose: 12V-2 24V-1 (full of motion recent moves in place routinely disconnect the power supply, the operating latest of <15mA) In the road of control working current: <15mA Travel: 53 + 1mm Wire length:about 100mm Wire diameter:10mm The maximum tension: 90N An ambient temperature: -30 to 60 DEG C The motion time: less than 2 seconds An overload protection extinguisher: the load is simply too huge or stuck, stop working automatically,avoid flameout gadget damage Disconnect the ability off after a era of time, re power,extinguisher from fault reset, can resume common paintings Two, flameout system wiring: The flameout machine has three lead wires, as follows: Red: connect the high-quality strength supply: the cathode of a power supply (yellow green or blue)as the road of control: Open type: control line power extinguisher action, action in place, automatic stop The launch of extinguisher power, motion in place, computerized quit Closed type: management line energy extinguisher action, action in place, automatic stop extinguisher energy control line, computerized give up action in place Three, installation and spot The set up and commissioning should ensure the extinguisher action in position before,diesel engine stop control rod no motion to the restrict role and the extinguisher stuck,otherwise the extinguisher inside overload protection circuit, automated flameout gadget stops working, the extinguisher should disconnect the power, adjust the mounting position, again to the extinguisher on electricity, flameout which can resume typical work
