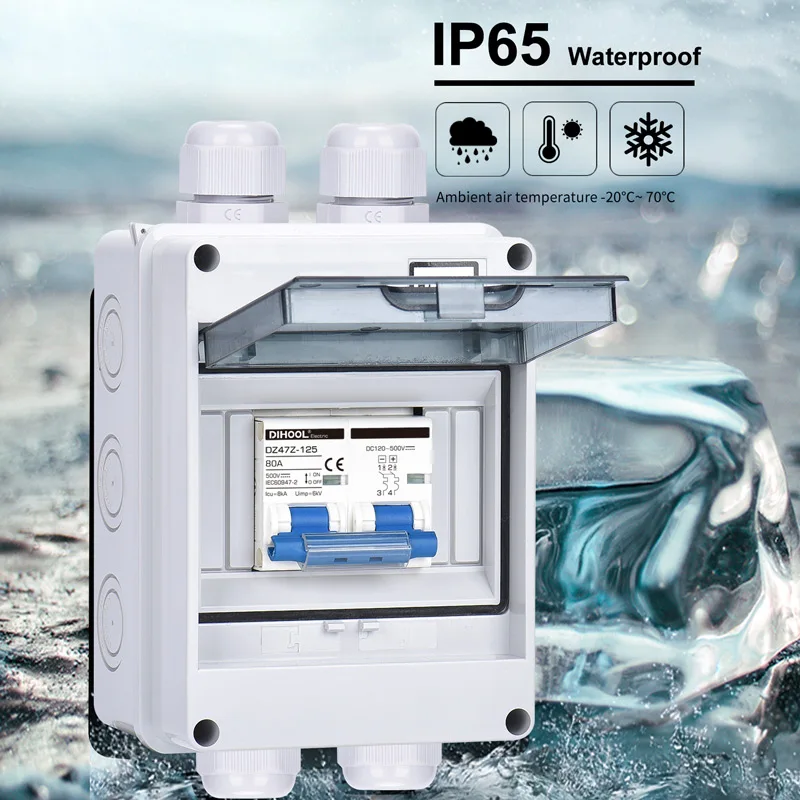

• TECHNICAL PARAMETERS: ● Rated voltage: DC 12V, 24V, 36V, 48V, 72V, 96V,100V 120V ,220Vetc ● Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A,80A,100A,125A ● Enclosure:The shell is product of ABS plastic, the canopy is product of clear PC, the sealing ring is product of silicon rubber, and the handbook rail is fabricated from tin plate ●Waterproof rating: IP65 Enclosure; ●Size: 6-63A:120x55x90mm;120 x 160 x 92mm; ● Breaking capacity: four ● Trip characteristics: B (3-5)In ● Polar number: 2P (1 Poles) ● Current limit level: three ● Quick ultimate ● Electrical life: 10,000 occasions ● Mechanical life: 20,000 times ● Operating ambient temperature:-30 °C to +70 °C ● Conform to standard: GB10963/ IEC60898 ● Warraty: 18th Month DC circuit breakers for Solar Power ,Battery Banks ,Inverters ,electric vehicles (air switches for electric vehicles, circuit breakers for battery vehicles), MINI circuit breakers for electric motorcycles, with overload and quick circuit protection, at the similar time It can be used for on-off electric instruments and electric automobile lights circuits that are not common under ordinary conditions DC circuit breakers adjust to GB10963 and IEC60898-1 criteria

•
•
•
•
•
