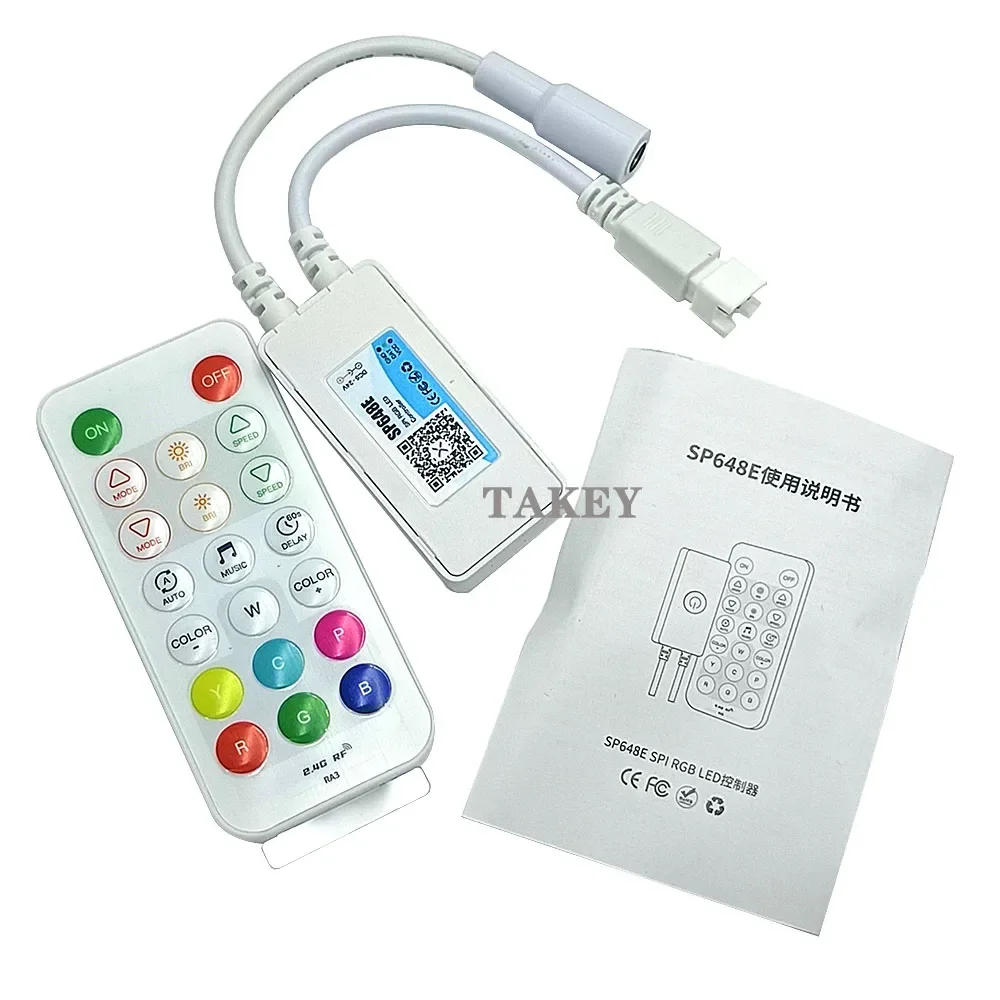

• SP646E SP647E SP648E SP649E SP64AE Addressable LED 1-5 CH Channel Low Voltage SPI Signal Dimmer Bluetooth Music Controller with RF 2 Remote Control Product Features ●. Support mobile app and 2 distant control; ●. Support music collection tips for cellphone microphones, participant streaming, and onboard microphones; ●. Support dynamic effects sequence and loop playback of the gathering list; ●. Support several on/off animation effects; ●. Support timing switch; ●. Support OTA firmware upgrades. Product Specification: ●. Working voltage: DC5V-DC24V The controller voltage will depend on the LED strip ●. Working current: 12mA~25mA ●. Maximun Output Current: Total 6A ●. Output power: ≤ 30W (5V); ≤ 72W (12V); ≤ 144W (24V); ●. Waterproof level: IP30 Non waterproof ●. Operation temperature: -4 ℉~140 ℉ (-20 ℃~+60 ℃) ●. Ways of working: Match with RF remote, Bluetooth App BalanX, One key switch on the management field ●. Connection method: common anode ●. Size of controller: 55mm * 26mm * 12mm (NOT including the wires) ●. Remote management size: 85mm * 40mm * 7mm ●. Remote leadership type: wi-fi RF 2 (control distance<30m) ●. Features: Support cellular APP control; 2 distant control; Ambient colour temperature adjustment; Multiple dynamic modes; ●. Wiring method: DC feminine V+, V - power; SM-3Pin LED Lights SP646E LED Controller ● For LED: DC5-24V fixed voltage SPI single colour LED ● Channel: Single channel ● Working current: 12mA~25mA ● Supports common 0 code unmarried line LED driver IC, supporting as a lot as 1800 Pixel ICs ● Supports multiple white mild dynamic outcomes and song effects, with multiple parameter modifications SP647E LED Controller ● For LED: DC5-24V constant voltage SPI CCT LED ● Channel: CCT(2CH) ● Working current: 12mA~25mA ● Supports common 0 code unmarried line two channel LED driving force ICs and helps 600 pixel ICs ● Supports a number of white mild dynamic effects and song effects, with a number of parameter changes SP648E LED Controller ● For LED: DC5-24V fixed voltage SPI RGB LED ● Channel: RGB(3CH) ● Working current: 12mA~25mA ● Support up to 600 single-wire RZ RGB LED motive force ICs; ● Built-in quite a lot of music and dynamic effects, assist results pause, multi-parameter adjustable; ● Support for tradition effects ● Support Calibration Channel SP649E LED Controller ● For LED: DC5-24V fixed voltage SPI RGBW LED ● Channel: RGBW(4CH) ● Working current: 12mA~25mA ● Support as much as 450 single-wire RZ RGBW LED driving force ICs; ● Built-in a variety of music and dynamic effects, help results pause, multi-parameter adjustable ● Support for tradition outcomes ● Support Calibration Channel SP64AE LED Controller ● For LED: DC5-24V fixed voltage SPI RGBCCT LED ● Channel: RGBCCT(5CH) ● Working current: 12mA~25mA ● Support as much as 300 single-wire RZ RGBCCT LED driver ICs ● Built-in quite lots of song and dynamic effects, help results pause, multi-parameter adjustable ● Support for custom outcomes ● Support Calibration Channel Packaging list: 1 LED controller 1 RF remote control 1 User guide Voltage directions Please choose the ability delivery of a matching voltage per the voltage of LED lights. Not the controller

•
•
•
•
•
