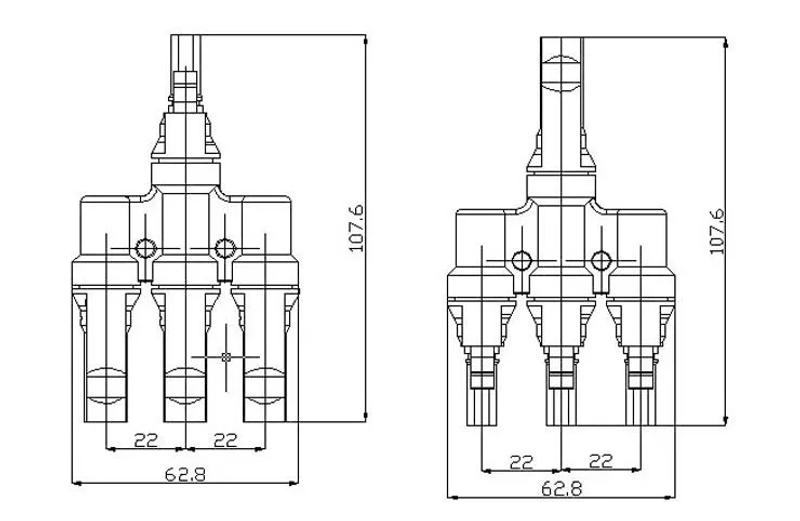

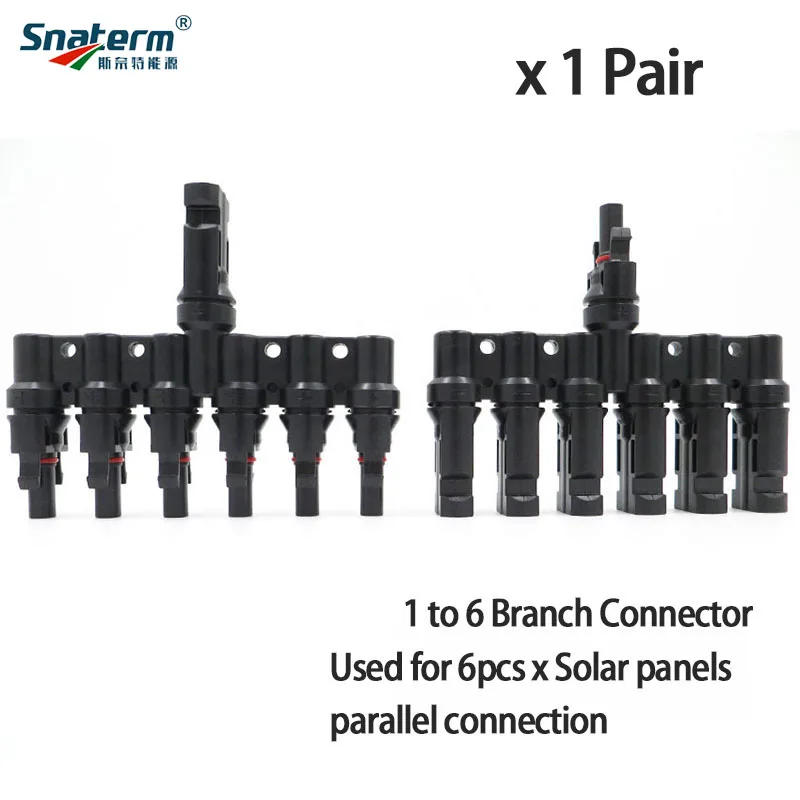

• 1Pair 2T 3T 4T 5T 6T Branch Adapter Connector male and feminine connection for Solar Panels Cable PV System Waterproof Socket PlugFeatures: Mating security supplied by way of keyed housings Mutiple plugging and unplugging cycles Accomodates PV cable with deferent insulation diamaters High current carrying capacity TUV permitted -Rated Current: 30A -Rated voltage: 1000VDC -Suitable cable: 2, 4mm2, 6mm2(AWG14, AWG12, AWG10) -Contact resistance: ≤0Ω -Waterproof degree:IP67 -Flame class: UL94-VO -Safety Class: II -Withdrawal force: ≥50N -Pin dimension: four dia -Insertion force: ≤50N -Insulation material: PPO+PA -Connecting system: crimping connection -Contact material: copper, tin plated -Temperature range: -40 °C ~ +90 °C Product No:-2TRated Voltage TUV 1000V DC / UL 600V DCRating Current 20A-30ASuitable cable go sections 2 / 14AWG-10AWGPin dimension:4 voltage:DC 8KV(1Min)Pollution degree: 2Protection class: Class IIContact Material: Copper, tin-platedContact Resistance: 5mWConnector Material: PPODegree of Protection: IP IP67(IEC 60529)Insertion Force: 50NTemperature :-40-+85CFlame Class: UL94V - 0 Product No:-3TRated Voltage TUV 1000V DC / UL 600V DCRating Current 20A-30ASuitable cable go sections 2 / 14AWG-10AWGPin dimension:4 voltage:DC 8KV(1Min)Pollution degree: 2Protection class: Class IIContact Material: Copper, tin-platedContact Resistance: 5mWConnector Material: PPODegree of Protection: IP IP67(IEC 60529)Insertion Force: 50NTemperature :-40-+85CFlame Class: UL94V - zero Product No:-4TRated Voltage TUV 1000V DC / UL 600V DCRating Current: 50ASuitable cable pass sections 2 / 14AWG-10AWGPin dimension:4 voltage:DC 8KV(1Min)Pollution degree: 2Protection class: Class IIContact Material: Copper, tin-platedContact Resistance: 5mWConnector Material: PPODegree of Protection: IP IP67(IEC 60529)Insertion Force: 50NTemperature :-40-+85CFlame Class: UL94V - 0 Product No:-5TRated Voltage TUV 1000V DC / UL 600V DCRating Current: 50ASuitable cable move sections 2 / 14AWG-10AWGPin dimension:4 voltage:DC 8KV(1Min)Pollution degree: 2Protection class: Class IIContact Material: Copper, tin-platedContact Resistance: 5mWConnector Material: PPODegree of Protection: IP IP67(IEC 60529)Insertion Force: 50NTemperature :-40-+85CFlame Class: UL94V - 0 Product No:-6TRated Voltage TUV 1000V DC / UL 600V DCRating Current: 50ASuitable cable move sections 2 / 14AWG-10AWGPin dimension:4 voltage:DC 8KV(1Min)Pollution degree: 2Protection class: Class IIContact Material: Copper, tin-platedContact Resistance: 5mWConnector Material: PPODegree of Protection: IP IP67(IEC 60529)Insertion Force: 50NTemperature :-40-+85CFlame Class: UL94V - zero

•
•
•
•
•
