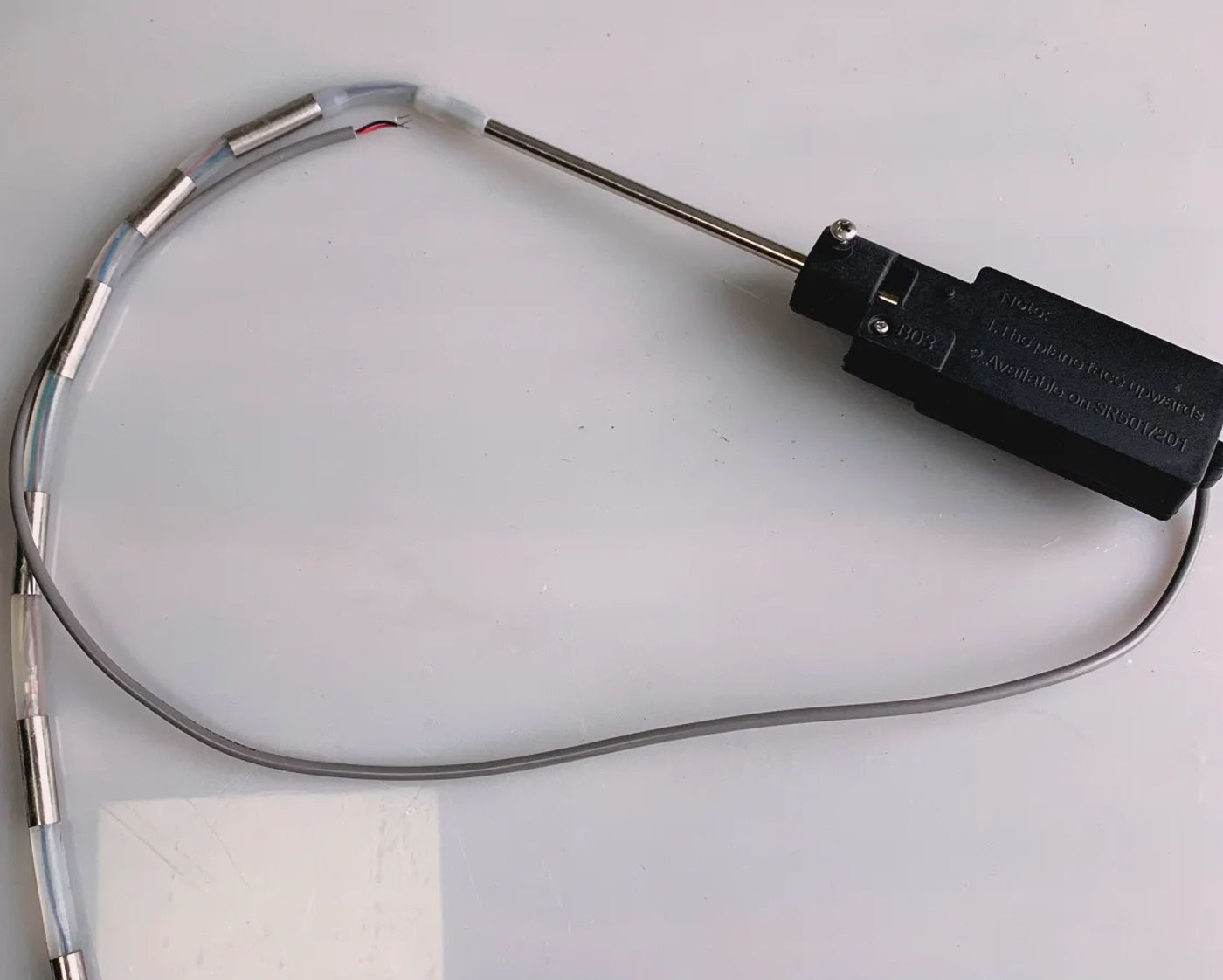

Top positioned Water Temperature &Level Sensor for photo voltaic water heater controllers,G1/2&; water level sensor
Installation of sensor of temperature and water point
Sensor of water temperature and water level is inserted into tank from the overflow connector
Fasten sensor with the mutter of sensor
3-cores wire of sensor linked to the enter port of
controller
- Port 1: join red twine (+12V)
- Port 2: join white cord (COM)
- Port 3: connect black cord (GND)
