Product Features:
1 Backlight Display
Press the reset button at the peak once, the backlight may be triggered and final for roughly 10s It is more convenient to browse display screen clearly in darkness
2 Smart Linkage
You can preset the condition and project in the“Scene" page, for example, when the room temperature surpass 30 Celsius, the A/C will turn on automatically
3 Temperature Unit Switch
You can swap the temperature unit between Fahrenheit and Celsius in the set press the reset button once, it will sync both at the display screen and in the APP
four Temp & humidity data
You can view the historical records of temp and humidity saved for 1 year, and export fo your Email handle
5 Temp & humidity Alarm
You can preset the diversity for temperature and humidity within the scene page, when the temperature or humidity reaches the diversity it will push on the spot alarm message through APP
6 Low battery Alarm
When the battery strength is low, it's going to pushalert message through APP
7 Third-party Voice Control
Support enquiring about temp and humidity by way of Amazon and Google sensible speaker by voice
For extra technical details, please confer with the ultimate chapter
NOTE:
1 The time structure cannot be changed
2 The temperature unit can be switched

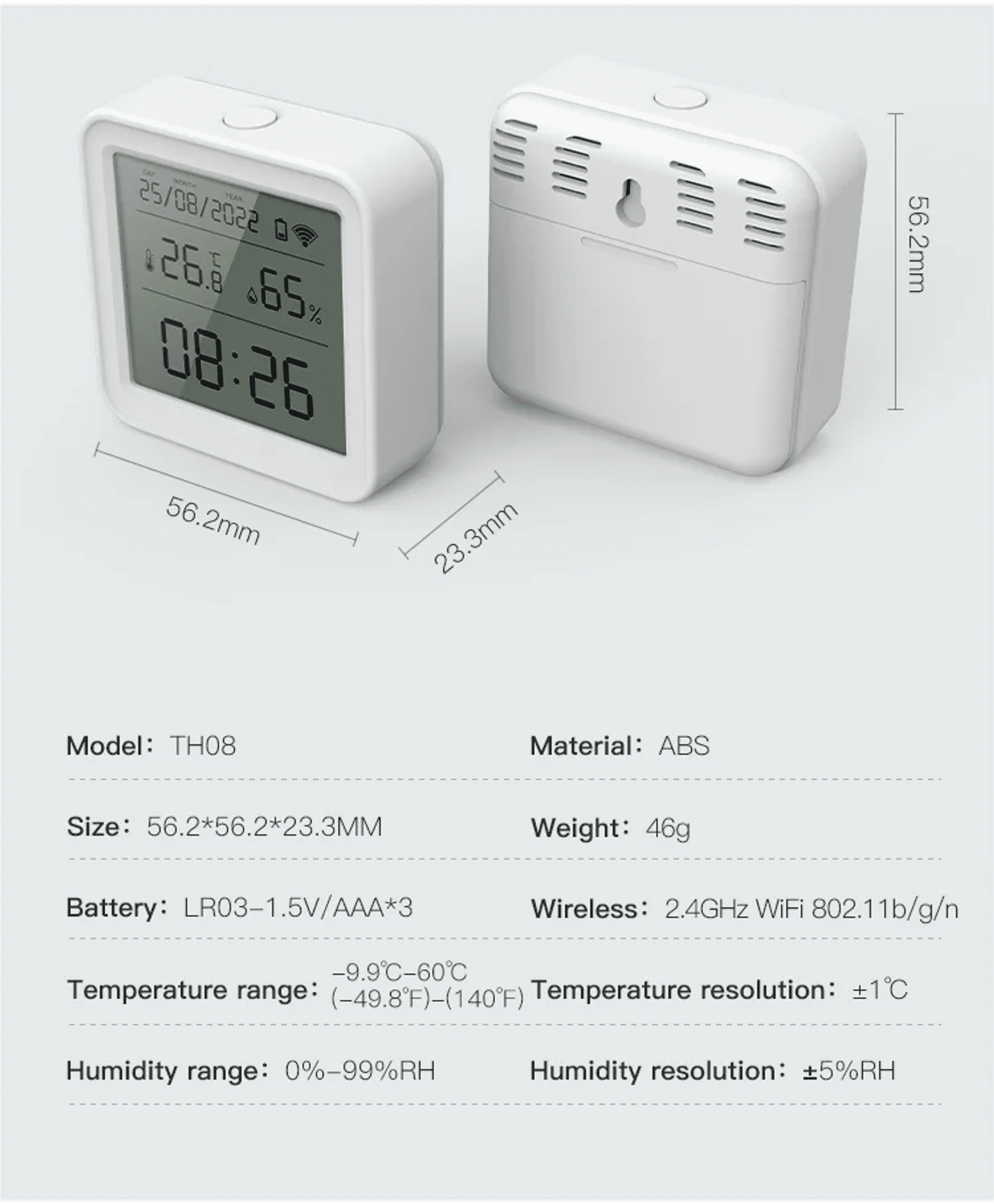

Product Parameter:
Power supply: Battery LR03-1/AAA*3 (not included)
Backlight: Supported
Wireleass: WiFi 2 IEEE 802 b/g/n
Temperature Measure Range: -9℃-60℃
Temperature Accuracy: ±1
Humidity Measure Range: 0% RH~99% RH
Humidity Accuracy: ±5% RH
APP Remote Monitor
After the configuration is completed, you can view the temperature and humidity on the display screen and APP on the identical time And the APP can be high quality wherever on the planet
Backlight Supported
When you tuch the reset button once, the backlight might be brought about , and it's going to last for about 10 seconds
Temperature & Humidity Records
You can view the historical curve of the temperature and humidity in the APP, and export in your electronic mail address
Temperature & Humidity Alarm
You can preset the variety for the temperature and humidity in the Scene page , when the temperature or humidity reaches the diversity ,you Will receive alarm message on cellular
Temperature unit switching
Low battery automatic reminder

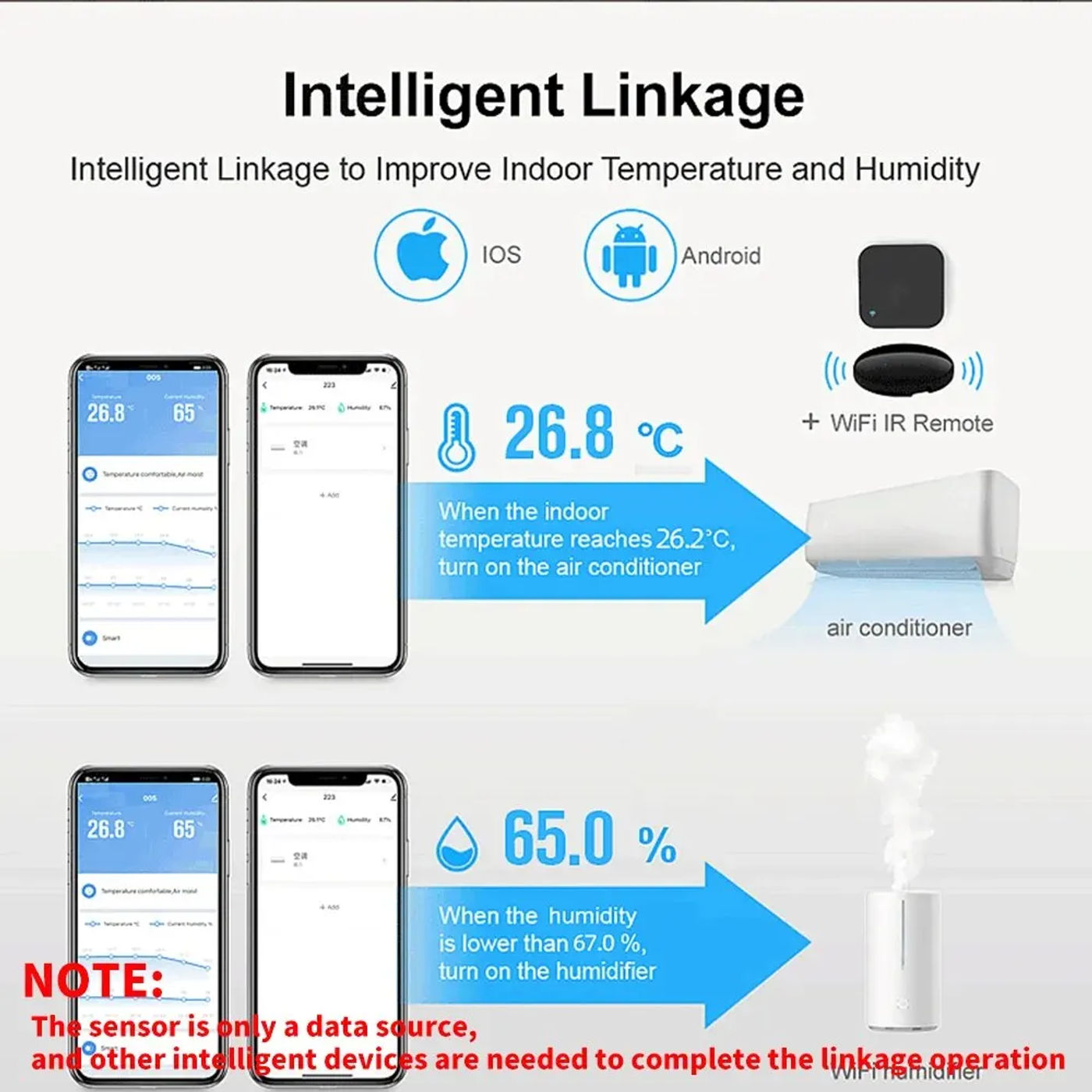

Intelligent Linkage
In the APP, you can make linkage settings by means of setting the temperature and humidity of the sensor as conditions It will make your existence more comfortable
MuItipIe usage strategies for partitions and desktops
AppIication Scenario
Technical particulars
About Displaying
1 The time structure cannot be changed
2 The temperature unit could be switched
About Bluetooth Function
Bluetooth operate is only helpful during configuration After configuration, the system will close down the Bluetooth community
About the replace frequency of temperature and humidity
1 We used the set off mechanism When the temperature or humidity substitute reaches the trigger condition, record the info straight The quickest replace frequency is 2 minutes Generally, the information is updated once an hour
2 The sensor can not set the update frequency,
three The sensor can not set alarm, and the alarm function is determined on the APP
If it's best to replace data in real time, please buy a USB powered version
About batteries
1 Only LR03-1 alkaline battery can be used (1 rechargeable battery can cause the package to discover improper voltage and document low voltage)
2 Batteries of alternative items can't be combined
three Batteries of other manufacturers can't be combined
4 New and outdated batteries cannot be mixed
5 Do now not use inferior batteries
Otherwise, 1 configuration failure, 2 battery consumption is just too rapid
How to acquire positive batteries or real batteries Please purchase them at regular supermarkets or chain stores through the years
Note: After the system configuration is completed, it should be positioned in a function the place the wi-fi sign is good, in any other case the ability consumption of connecting to the network will increase, which will lead to quick battery intake
About Network Testing
The community will devour many of power
To make sure the service life of the battery, the sensor will stop utilizing the network when it would not need to document data
Therefore, it is meaningless to test the community signal of sensors in APP
Error on temperature and humidity
1 All temperature and humidity sensors could have certain errors, please be aware
The error of this sensor is ± 1 ℃ and the mistake of humidity is ± 5% RH
Any cost inside this differ is typical
2 Sensor error and production job will lead to sure mistakes between merchandise of an analogous model
3 According to Newton&;s third law, the heat conduction takes a certain time
Therefore, our sensor desires half-hour to be consistent with the room temperature, and the measurement will be correct
About Historical Curves
1 The minimal granularity of historical records (daily chart) is 1 hour, and the minimum granularity of exported information is also 1 hour
2 Days of historic records are stored for 7 days
3 The price of historical information is the average value, that is, the average value in a minimum granularity time
Support for third-party wise speakers
1 Because the third-party sensible audio system (Google Home/Amazon Alexa) do not have control panels akin to temperature and humidity sensors, the temperature and humidity may not be displayed usually on the third-party smart speakers&; APP But we have opened the voice query operate
Therefore, the current temperature and humidity would be queried by voice
2 Route or automatic task associated with temperature and humidity cannot be established at the third-party clever speakers
3 The gadget doesn't support Yandex Alice
About Automation
The sensor uses the principle of Edge Triggered
That is, the action can solely be brought on if the condition crosses the set condition
For example, when the automatic setting temperature is bigger than 25 ℃, then activate the air conditioner
1 When the temperature rises from under 25 ℃ to 25 ℃, the automated job can set off to begin the air conditioner
2 After the automated job is set, the temperature is usually above 25 ℃, and the air conditioner is not became on
three When the temperature drops to 25 ℃ and rises to above 25 ℃, the automated activity could be activated
For example, when the automated surroundings temperature is less than 20 ℃, activate the air conditioner
1 When the temperature drops from above 20 ℃ to 20 ℃, the automated activity can set off to begin the air conditioner
2 After the automatic task is set, the temperature is often below 20 ℃, and the air conditioner is not grew to become on
3 When the temperature rises to 20 ℃ and then drops to above 20 ℃, the automated job will be activated
