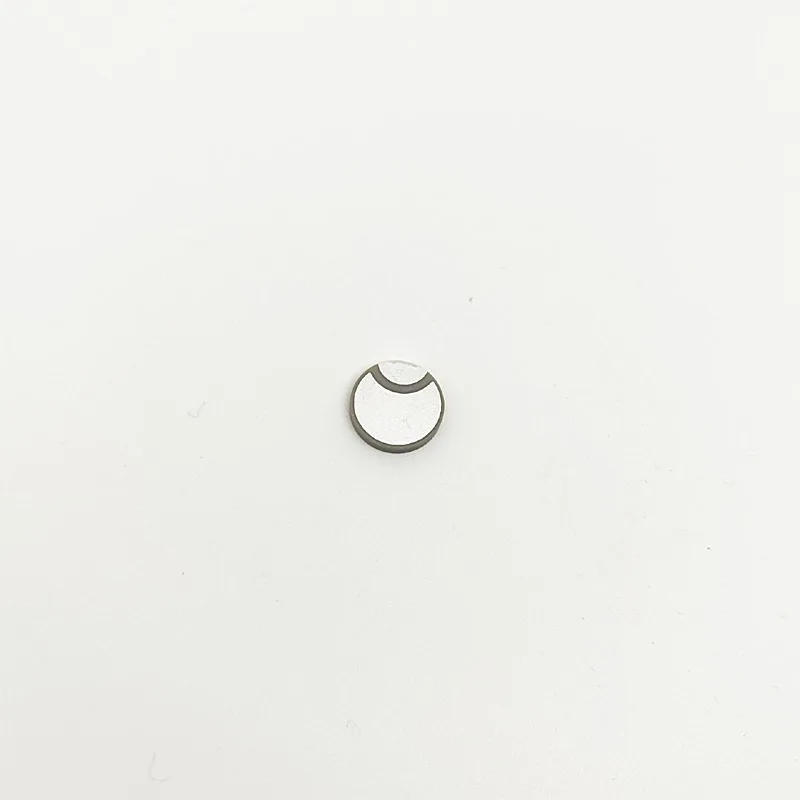

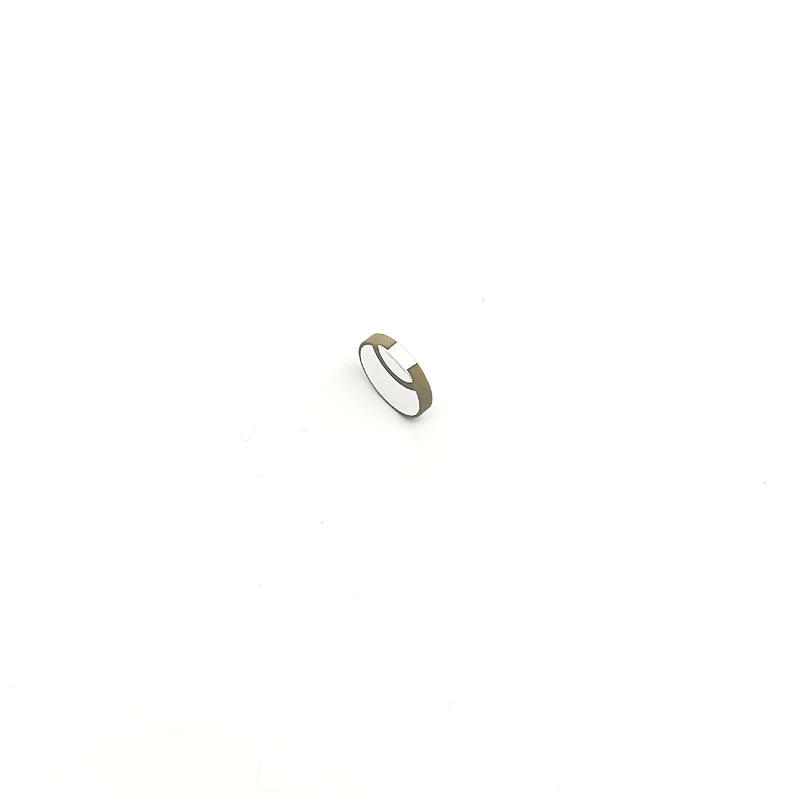

• is_customized:Yes,you may perhaps tell me the size ,material or parameters you needed,we&;ll examine whether or not or not it is out there or need to produce,the shipping date and price could be checked with the corporate Customer Service,Thank you! More order more discount! Item: PZT Disc Size : 12*2 Piezoelectric Ceramic Disc with Silver electrodes on one aspect Mode: thickness mode vibration applicationStatic capacitance Cs: 800pF±10%@1kHzTest Condition: 25±3 °C 40~70% R. fa, Qm, Kp => Thickness mode vibration application Cs => LCR meter at 1KHz 1Vrms Applications: Bolt-clamped ultrasonic transducer, Ultrasonic Sensor, Vibration Sensor, Pressure sensor, Vibration generation, Biodiesel mixing transducer, Piezo growth sensor, compression sensor, Piezo Welding, Tonpilz Transducer and others. Notes: Keff = ≥35%. Keff is calculated through the formula, ((fa2-fr2)/fa2), and fa is the anti-resonant frequency of the ring mode

•
•
•
•
•
