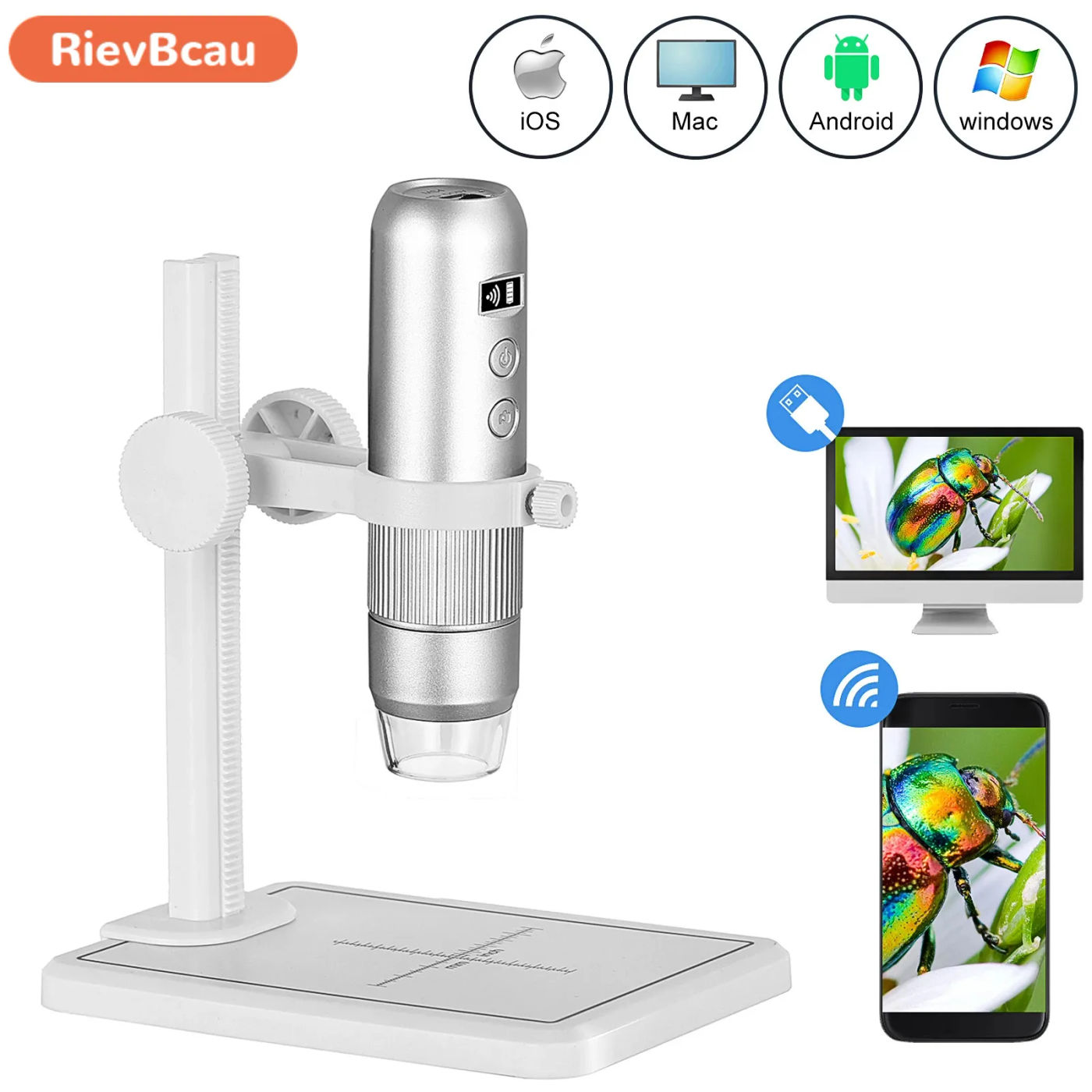

Wireless Handheld Digital Microscope 1000X Portable USB WiFi Microscopes MS4 Magnifier With eight LED Bracket For Android IOS PC
Parameter spcification
Product name: MS4
Lens optic size: 1/4”
SNR(Signal Noise Ratio): 37db
Sensitivity: 4300mV/lux-sec
Picture resolution: 640*480,1280*720,1920*1080
Video resolution: 640*480,1280*720,1920*1080
Video format: Mp4
Focus mode: manual
Picture format: JPG
Magnification times: 50X~1000X

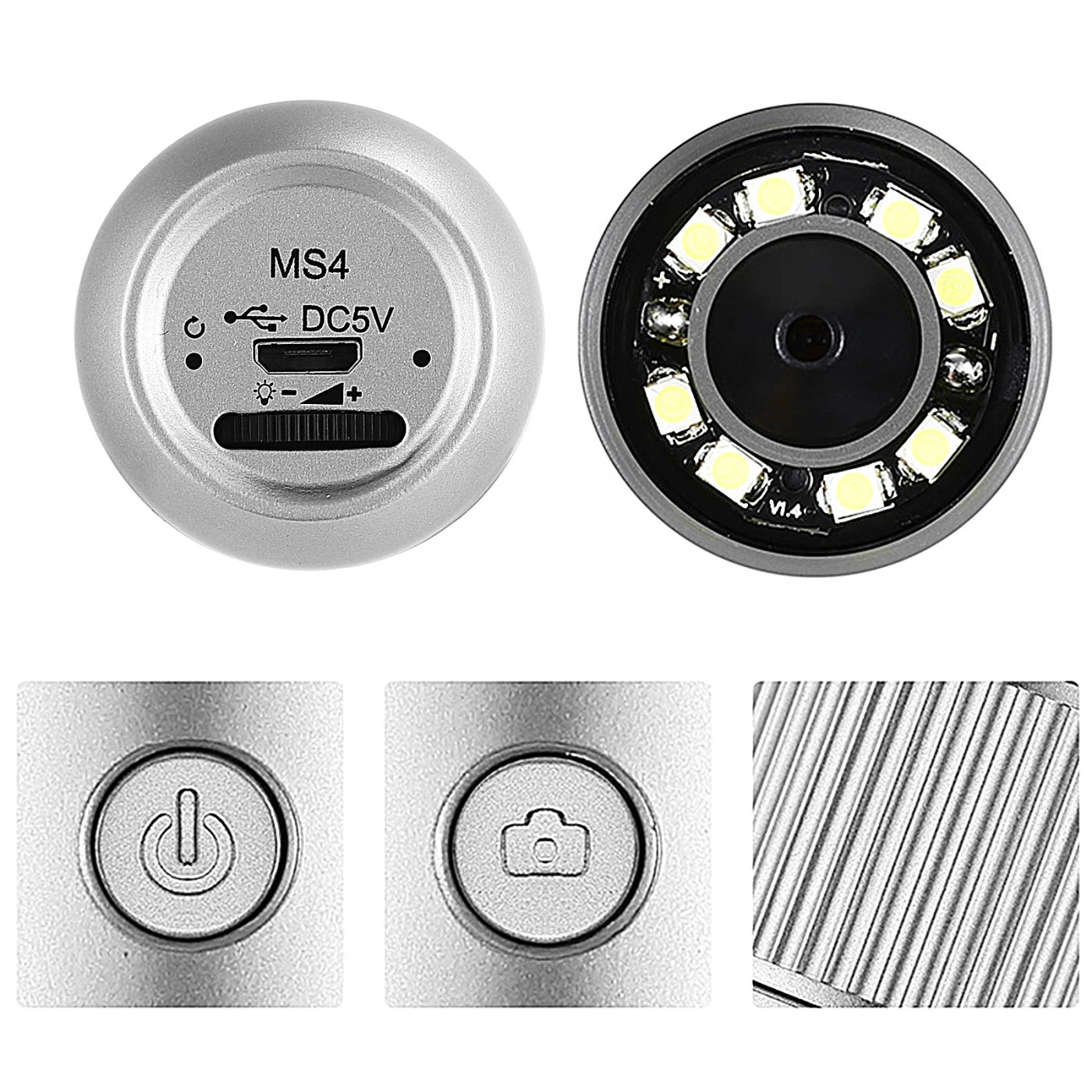

Illuminant: eight LED lights (brightness adjustable)
Focusing range: 10~40mm(can watch distant view)
WIFI distance: inside 3m
White balance: automatic
Exposure: automated
PC operating system: Windows Xp,win7,win8,win10,Mac OS x 10 or increased
Lens construction: 2G+IR
Aperture: F4
Lens angle: 16°
Interface and Signal Transmission Mode: Micro/usb2
Storage Temp/Humi: -20℃ ~ +60℃ 10%~80%RH
Operating Temp/Humi: 0℃ ~ +50℃ 30%~85%RH
Working current: ~270mA
Power dissipation: 1
APP work environment: Android 5 and above,ios 8 and above
WIFI execution standards: 2(IEEE 802/g/n)
How To Operate USB Connection for PC
For Win 10,you can instantly plug into the USB port and search CAMERA in WINDOWS find it and click
For different system,download a software,connect the machine with PC by way of USB cable,then long press Power button 3s to show at the device,run the software,you can function on PC
(Notice:do no longer activate the gadget earlier than connect,or you won&;t have the ability to see the picture,if you switch on earlier than connect,that means opened the WiFi connect to cellphone)
WiFi CONNECTION
Wireless work on iPhone/iPad and Android cellphone and capsule
Step 1 Download APP
Step 2 Starting the device,open the smartphone’s WiFi setting,find the name: “Cam-MS4”and join it
Step 3 After the connection,you can open the APP,click Camera on the main interface and the picture could be exported
(Notice:please see person handbook for details)Packing consist of
1 x Digital Microscope
1 x Bracket
1 x Scale Bottom Plate
1 x Calibration Ruler
1 x CD
1 x Data Cable
1 x User Manual
