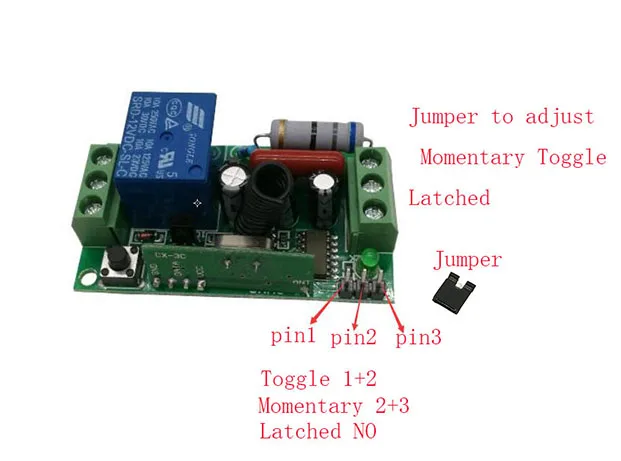

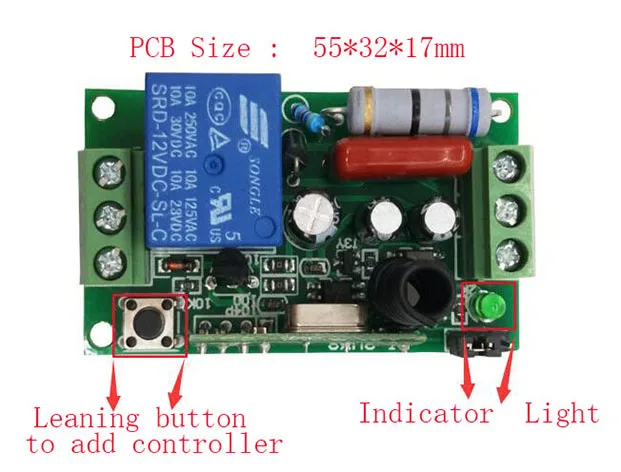

• SpecificationsFeature:1 Voltage: AC220V2 Load:10A Relay, Resistive load≤8A, Inductive load≤3A3: 1CH4 Frequency : 315MHz/433MHZ Receiver sensitivity: : -105Db Working temperature : -10&;C - +60&;C Output way : Momentary Toggle Adjusted by way of Jumper Code type: Learning code Add Controller by means of the Learning Button on the receiver Output State: It is adjusted by means of the Jumper at the Receiver Board, (before you modify it need turn OFF the power Until you've changed it, then flip ON the ability again, or the State are usually not changed) A: Momentary-----------Put the Jumper on “pin2 & pin3” B: Toggle------------put the Jumper on “pin1&pin2” C: Latched------------- Take manner the Jumper or put the Jumper on any 1 Pin Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF, Toggle---------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF, Latched------------Press transmitter button A, the receiver relay A is ON, Press transmitter button B, the relay A OFF Learning Method: Input AC220V for the Receiver the Learning Button until the Led indicator ON Then press transmitter, the Led indicator flash fast, it mean studying efficiently Clearing Code Keeping press the Learning Button at the receiver till the LED indicator OFF, it mean the code had been cleared successfully Note: 433mhz and 315 mhz come in ,315mhz could be sent out if there is not any call for on frequency pacote inclued: A: 1x Receiver(with cover) 1 x Transmitter(with battery)B:1 x Receiver(with cover)2 x Transmitter(with battery)C:1x Receiver(with cover)3x Transmitter(with battery) D:1x Receiver(with cover) 4x Transmitter(with battery)

•
•
•
•
•
