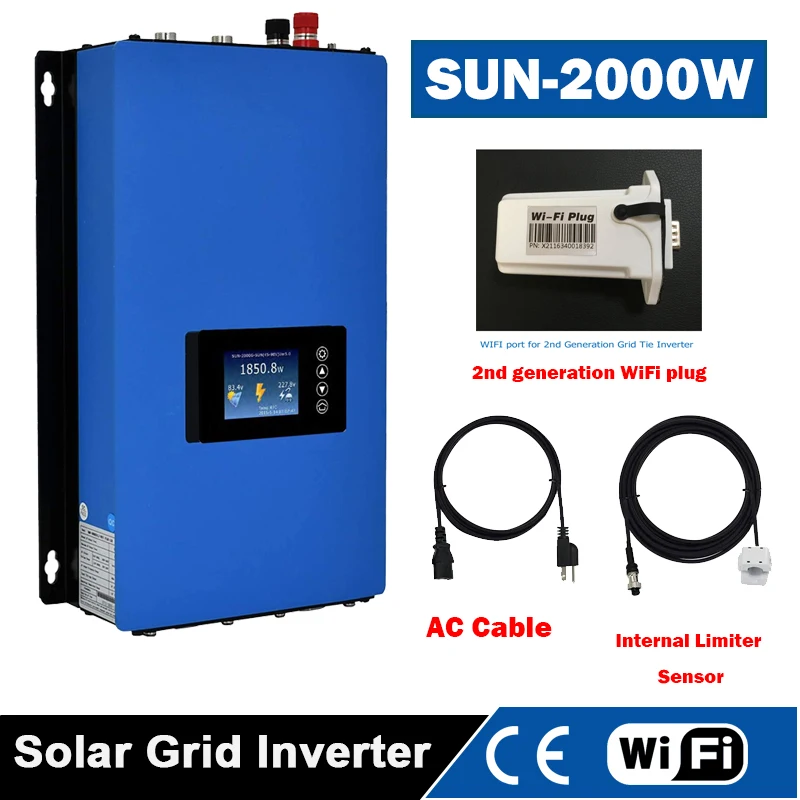

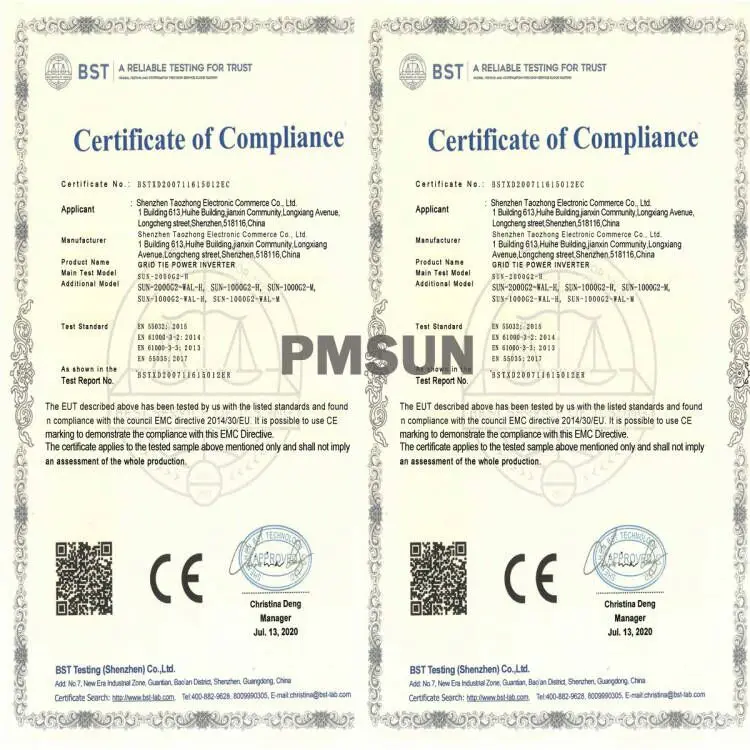

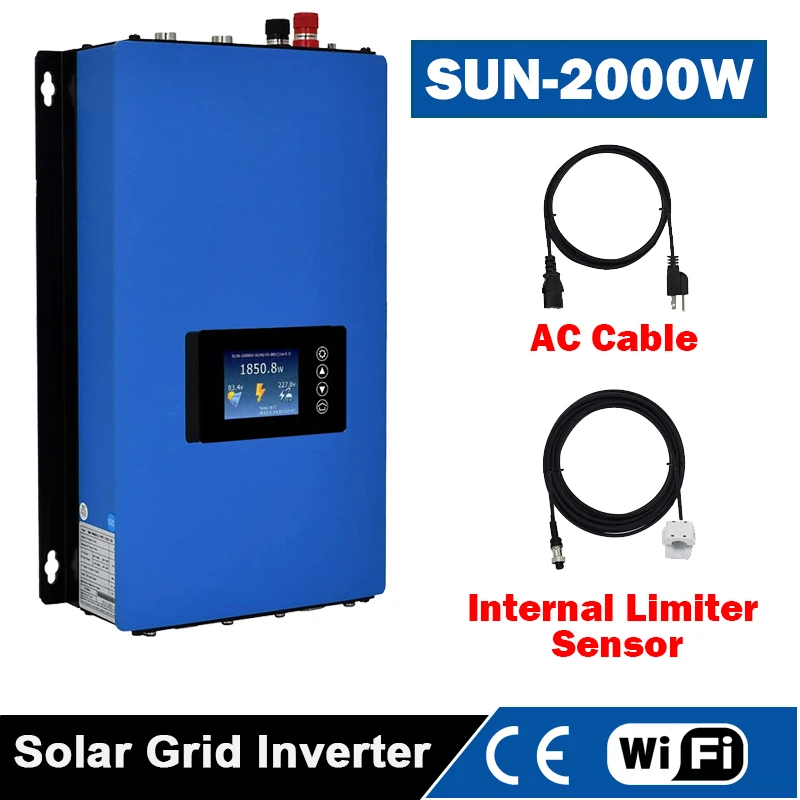

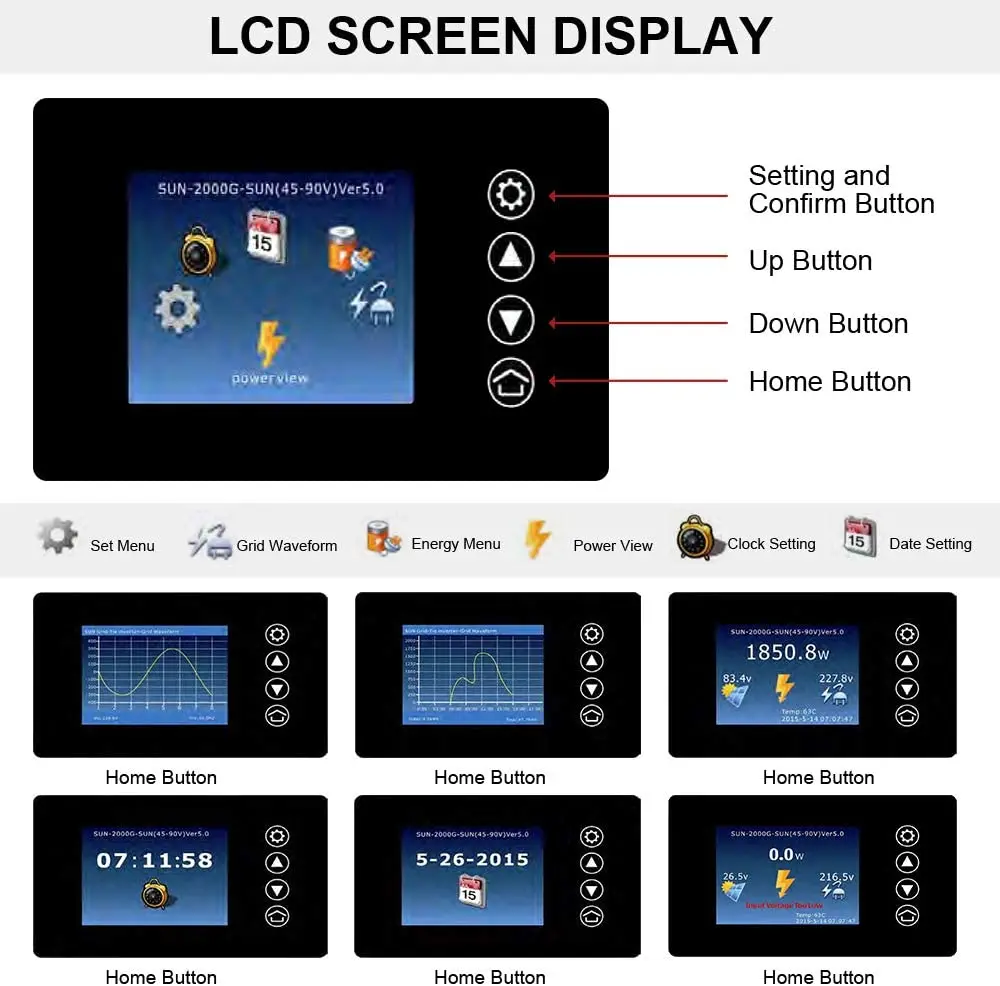

• After EU clients order, the inverter will be shipped from our local EU warehouse inside 24 hours The delivery time is set 3-7 days hold the default transport from China when placing the order, so that when you make the ultimate checkout The price might be robotically discounted to about 20% less than the displayed fee when you order before, please contact us first, thanks Y&H 2000W MPPT Grid Solar Inverter Battery Discharge Power Mode 2KW with Limiter Sensor PV DC 45-90V AC 220V 230V 240V Batteries are used to energy the inverter, and the operate of timed discharge permits discharge during top hours Allows for a reduction in height load, thereby lowering electrical energy bills 2000w Solar Power Grid Tie Inverter --with Limiter / Sensor , Battery Discharge operate --DC 45V-90V (optional ) --AC 220V 230V 240V (auto selected ) -- for USA 240VAC connection , please see photo under Applied Standards: VDE-AR-N 4105:2018-11; DIN VDE V 0124-100:2020-06 Feature for the Solar grid tie inverter: Easy installation, can be paralleled on AC aspect Nice LCD demonstrate assorted parameters including enter voltage, output power, temperature,form etc Can be integrated with inside limit function Wifi wireless communication prolonged interface, enable inverter strength production records on PC internet or telephone APP RS485 prolonged interface serviceable curve, output sine wave collect via wifi plug and monitor Work with photo voltaic panels/work with battery The V6 version cancelled the EXTERNAL port We will randomly send the V5 version and V6 version The other applications and performances of the enhanced product are the same as those before the advance After the product is improved, it will likely be more handy for users to use the product The products modified consist of the SUN-2000G2, SUN-1000G2 of photo voltaic inverter and SUN-2000G2-WAL(WDL) and SUN-1000G2-WAL(WDL) of wind inverter Specification: INPUT DATA(DC) SUN-1000GTIL2-LCD SUN-2000GTIL2-LCD Input Voltage Range 22-65VDC/45-90VDC 45-90VDC Maximum Input DC Voltage 65V/90V 90V Peak Power Tracking Voltage 25V-60V/50V-90V 50V-90V Operating DC Voltage Range 22V-65V 45V-90V Start-up Voltage 25V/49V 49V OUTPUT DATA(AC) Maximum Output Power 1000W 2000W Nominal Voltage 110VAC/230VAC 230VAC Nominal Voltage Range 95-140V/185-265V 185-265V Frequency Range 47 for 50gz,59 for 60hz Power Factor ＞0 Output Waveform Pure Sine Wave CHARACTERISTIC DATA MPPT Effeciency 99% Over Current Protection Yes Over Temperature Protection Yes Reverse Polarity Protection Yes Anit- Island Protection Yes Stackable Just for AC Output Operating Temperature Range -20℃~45℃ Storage Tmpeperature Range -40℃~65℃ Current THD ＜5% Voltage THD ＜5% Standard CE,EN50438 Efficiency 92% Features Net Weight 3 5 Gross Weight five 6 Dimension(Package) 430*310*160mm 540*310*160mm Optional Part : Wifi Port for MPPT 1000W/2000W NEW SUN Solar Grid Tie Inverter Web / Mobile Phone App on Line Monitoring NOTE : It can be built-in side the inverter Product description : How to use the grid tie inverter ? 1 unit inverter installation / extra items inverters in parallel the inverter AC output could be linked within the AC plug of grid in the home 2-1 Using Grid Tie Inverter With Limiter Model 2 The Grid Tie Inverter with Limiter delivers solely the ability mandatory by way of the burden and forestalls delivering excess strength therefore avoids excess strength in going back to the Grid 2 The coronary heart of the Grid Tie Inverter with Limiter is the Limiter Module (LM) The LM consistently sampled the flexibility needed by way of the load during the latest sensor related after the Main Circuit Breaker The LM then will activity the sign It then sends sign to Grid Tie Inverter how a lot power to carry to the weight in real time 2 The user, after putting in and connecting the GTIL correctly, needn't do something and the unit will do its paintings automatically 3 Installation of GTIL With Internal Limiter 3 This installation is not require a further limiter module,Installation is much simpler the present sensor cable to the new wire to measure the current,the internal limiter will auto locate the weight energy and management the inverter output power,excess energy might be well managed three External protective device adding dc and ac SPD(Surge protection device),dc and ac breaker,etc is usually recommended to installed within the method 4 Setting on the LCD of the inverter: The GTIL encompass three working mode: Work as ordinary GTI with out power limitation Work below Internal limiter mode Work beneath External limiter mode, Pls make your environment on the LCD and save it,details setting operation,pls read the GTI manual five Battery Discharge Power Mode New upgraded firmware allow battery or photo voltaic limiter recent and tool model User can set the utmost output strength of inverter , this will make the inverter work at cooler contition as consumer favor and extend the lifespan of the inverter can set kick in/off voltage of the inverter which might flexible using with battery financial institution depend upon customers mind and might prevent battery bank from over discharged 6 Limiter Module Specification 1 Clamp sensor- Max 100A 2 Wattmeter- Max 9999w 3 Terminal Block-Max 20A four Receptacle- max 2000w 5 Clamp sensor signal- 5v AC max mA 6 DC signal Cable- 5v DC, max mA Package Include: 1 Piece MPPT Inverter 2 Clamp Sensor:with 3meters 3 Wifi Plug (choose) 4 An AC Power Cable 5 Piece User Manual (English) CE ROHS SGS VDE CertificationNEW CE EN50438

•
•
•
•
•
