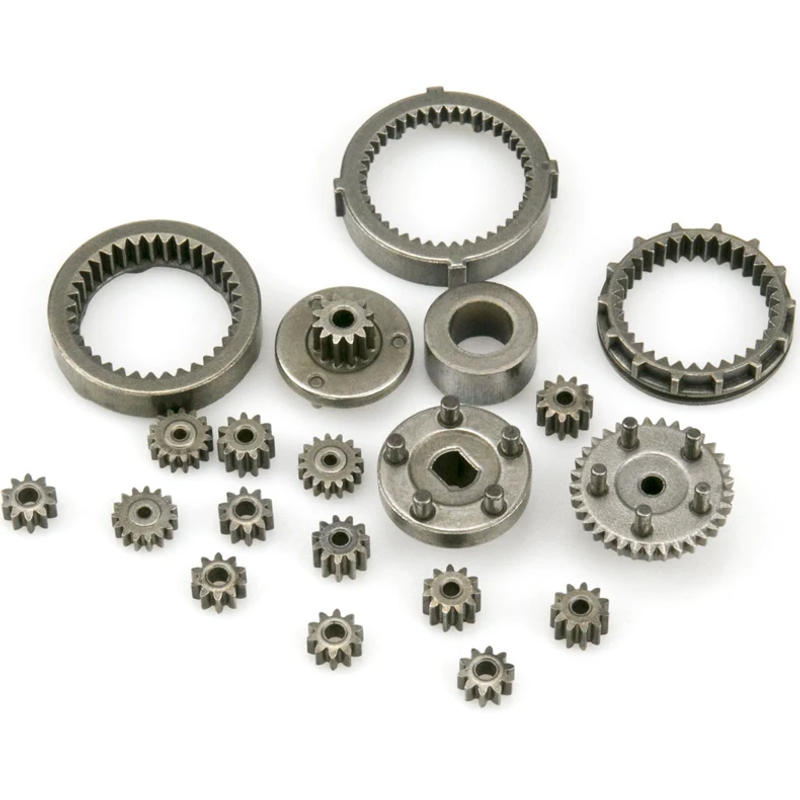

• Gear set included:   3 ring gears (sun gear), three middle gears, 5 planet gears (10 teeth), five planet gears (11 teeth)  3 planets (15 teeth)  Ring gear: the largest one, outer diameter: 34.3mm; height: 7mm              Medium, outer diameter: 34mm; inner diameter: 24.5mm, height: 6.8mm              The smallest one, outer diameter: 31.5mm; height: 6.5mm  Denture: Teeth with 10 teeth, outside diameter: 8.7 mm; inside hole: three mm; thickness: 4.5 mm           Number of teeth 11 teeth, outer diameter: 9mm; internal gap about: 3mm; thickness: 6mm           Number of tooth 15 teeth, outer diameter: 10mm; bore about: 2mm; thickness: 4mm  Center wheel: 12 teeth, teeth outer diameter 9.8mm, diameter: 22MM, small cylinder diameter: 2mm              15 teeth, teeth outer diameter 12mm, the largest part of the outer diameter of tooth 25mm, Shaw cylinder diameter: 2.5mm              Without teeth, the maximum outer diameter of 23.8mm, bore five * 7mm, small cylinder diameter 3mm

•
•
