CE/EMC Certified, High Efficiency Full Power 6000 Peak Power 3000W Off Grid Pure Sine Wave Solar Power Inverters Converters DC TO AC Voltage Transformer LED Display Iron Shell
About us:
-Our corporation is the main and professional producer for 150w to 8000w DC TO AC OFF GRID PURE SINE WAVE INVERTER Our authentic technical department, will support the finest technical service and after-sale technical service
-Our precept is “quality first, customer priority, service best, commerce honest”
-With the excessive quality, favorable fame, excellent service, our strength inverters are sold around the world We have many unswerving customer in the Europe, America, Asia, etc
-All inverters are stricktly inspected earlier than leaving factory, Reliable Company Guarantees that each inverter is in its superb working condition
-The inverters come in Russian warehouse, USA warehouse, Brazil warehouse, and can be sent from these warehouses extra efficient and speedy Usually it will takes 5-15 days for transport
About avantage of our inverter:
1 high quality transformer
As the core components, transfer the DC strength to AC power, we use the high frequency transformer, ensure the steady and whole AC output, no failure
2 capacitor
Adapted the imported capacitor, vast electricity, better performance, longer lifetime, more secure usage
three copper inductance
High high quality true copper inductance, filter out the wave form, ensure the true natural sine wave AC output, safeguard your package
four examined
No electromagnetic interference to your equipment, similar to no noise for TV, FM radio, Audio
five flange
With the big radiating flange, greater cooling performance, make sure the ideal inverter operating situation
6 mosfet
All massive mosfet, greater load capacity, stable the inverter performance, delivery the continuous AC output
7 line connection
Earthe connection for both PCB board and output, more secure for the load and the utilization
8 thickness
The PCB thickness of 2, thicker than essentially the most inverters at the market, allow the stronger latest floating on the circuit, expand the burden means
Applications of Our Customers:
Product Detail Parameters
DC Voltage
12V or 24V or 36V or 48V or 60V or 72V or 96V or 110V
Voltage Range
10-15VDC or 21-30VDC or 30V-45VDC or 42-55VDC or 55V-75VDC or 60V-90VDC or 85V-120VDC or 100-130VDC
NO Load Current Draw
<1A
Efficiency
>90%

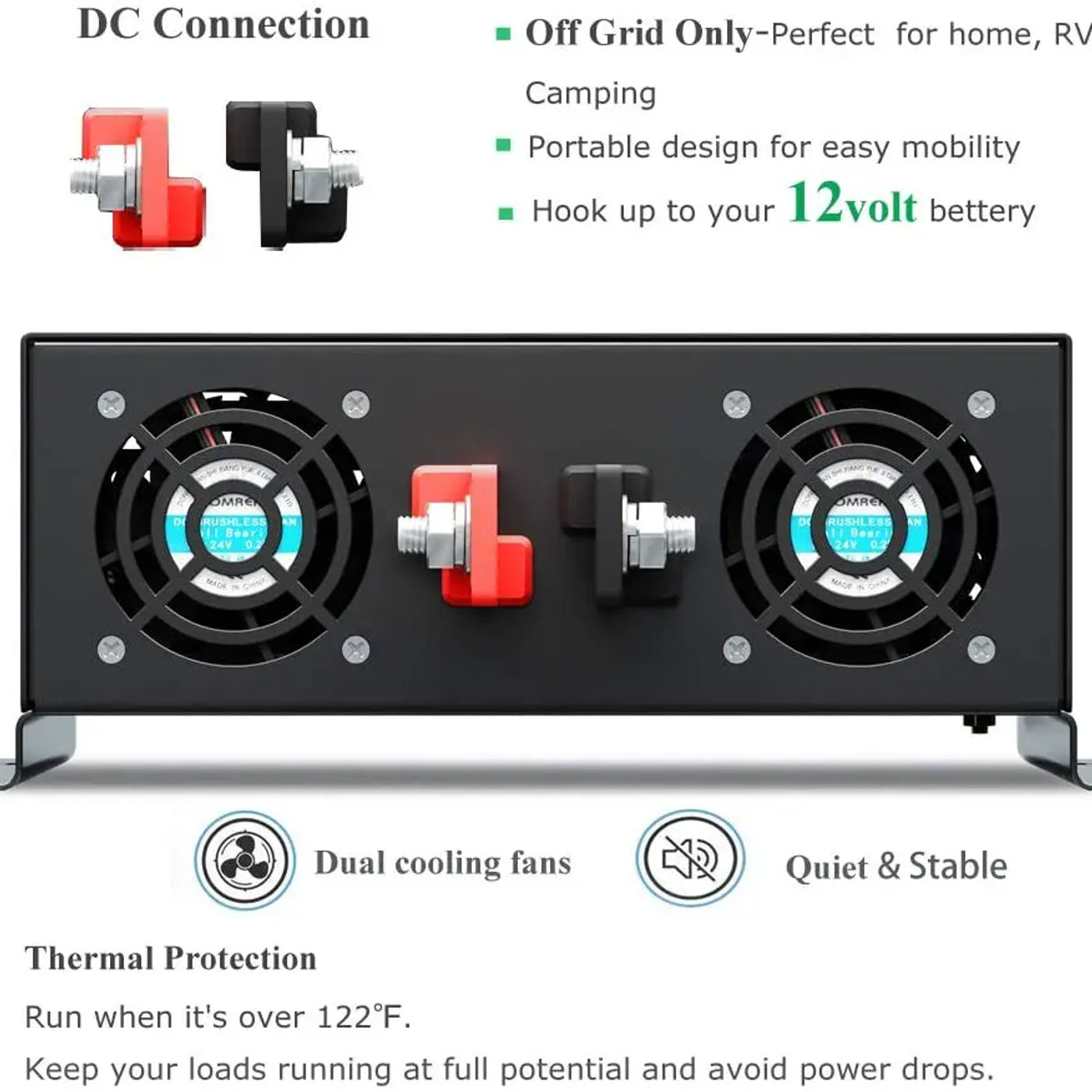

DC Connector
Cables With Clips or Car Adaptor
AC Voltage
100/110/120VAC or 220/230/240VAC
Continuous Power
3000W
Surge Power
6000W
Waveform
Pure Sine Wave
Frequency
50HZ or 60HZ
AC Regulation
3%
Low Voltage Alarm
10DC±0 or 20±1V or 32±1V or 44±1V or 55±1V or 68VDC±1V or 92VDC±1V or 105VDC±1V
Low Voltage Shut Down
9±0 or 19±1V or 31VDC±1V or 42VDC±1V or 55VDC±1V or 60VDC±1V or 84VDC±1V or 100VDC±1V
Over Load
Shut Off Output
Over Voltage Shut Down
15 or 30 or forty five or 55 or seventy five or 90 or 110 or 120
Over Thermal
Shut Off Output Automatically
Fuses
Short Circuit
Working Temperature
Between -10centi and +50centi
Working Humidity
20%~90%RH non-condensing
Storage Temperature
Between -30centi and +70centi
Start
Soft Start
Cooling Ways
Cooling Fan
Total Harmonic Distortion THD
<5%
Machine Size(mm)
364*248*95
Packing Size(mm)
450*320*170
Net Weight(kgs)
five
Gross Weight(kgs)
7
Packing Type
Carton Packing
Feartures:
Pure Sine Wave, pretty much as good as the grid energy
Full Power
Core Technology, German Design
Most Advanced Program in Software
Complete Protection Non Defect Rate,
Better EMC - Electro Magnetic Compatibility,
No Noise for TV or Stereo Sound
SMT- Surface Mounting Technology
All Big Imported Mosfet,Strong Driving Capacity
PCB Thickness :2
LED Display
Compact Design, Less Weight, Full Power,
Single Layer Design, Easy to Repair if any
Earth Connection for Both Inverter and PCB,
Low No Load Current Draw
Durable high quality with 10 years usage,
Alarm and LED Indication Light for error caution inevrter with LED display, let you visual display unit the inverter input voltage and output voltage in time With this function, you'll find out about the inverter situation extra clearly
Sufficient Heat Radiation
More Vent Holes on the plates and the bottom for warmth radiation
Popular Metal Black Design
Big Current Connector,
All sorts of socket come in
Strong Wiring Row on AC End,
Best high quality ever in the market
Factory Price
Product Details:
Protection Systems:
Thermal protection, Overload protection, Over Voltage protection, Under Voltage protection, Low Voltage defense alarm Inverter comes with an LED gentle to indicate the problem
9 styles of protections:
1 circuit production
When the burden is short circuit, the inverter will quit operating
2 High temperature manufacturing
When the use surroundings is stuffy, the warmth of the inverter can not be radiated The temperature is above the rated temperature, the inverter will give up operating
three High voltage protections
The battery voltage is above the rated voltage of the inverter, the inverter will stop operating
four Low voltage protections
The battery’s voltage falls through the usage When it is less than the rated voltage, the inverter will robotically lower the input voltage for the self protection
five Surge defense
It can avoid the DC high voltage’s surging assault upon the electronic components within
6 Overload defense
When the appliances’ energy is higher than the inverter’s power, the inverter will stop working for self defense
7 Over current Protection
When the appliances’ recent is greater than the inverter’ current, the security elements at the board may be lower mechanically for self defense
8 protection
When the appliance’s resistance is greater than inverter’s, the fuses at the socket may be routinely cut off for self defense
9 Reverse defense
It can keep away from the injuries of burning the inverter if the tremendous and the destructive poles are reverse connected
The Resistive Load Applications and The Inductive Load Applications:
For resistive load applications:
If you wish the inverter to run the resistive load (like laptop, TV, electric cooker, LED light), please favor the inverter with continuous power increased than the appliance&;s rated power
For example, for the ability inverter with continuous strength 2500w,it is advised to run the application with rated power lower than 2500w It is best to use 80% of the rated power
For inductive load applications:
If you would like the inverter to run the inductive load (for equipment reminiscent of compressor, motor, water pump), please calculate the power of inverter three to 7 instances larger than the rated energy of your appliance
Product Certification:
Durable and secure quality with many years usage, our pure sine wave inverters are authorised by way of EMC testing in Australia and CE licensed 18 months guarantee
Product Packaging:
The Transportation:
For the small capacity, The inverter could be sent by DHL, EMS, Fedex and e-EMS, it's going to take 3-12 days for shipping
If you would like broad quantity, please contact with me about the delivery process
Customer Service:
1 RELIABLE is your relied on partner for long run business are the MANUFACTURER of the solar inverter We are accountable for the standard of the inverter The inverter has ONE year warrantly We provide technical assist and service for the inverter the entire lifestyles
All inverters could be double tested earlier than shipment to be guaranteed in fresh situation and paintings completely
2 Returns for change are authorized and ought to be initiated by the customer within 4 days of receipt All return items should be in their usual situation Return delivery and handling charge might be on the buyer&;s expense first Please do contact with us for return address, particulars and every other disorders
3 We are usually not accountable for any put off throughout delivery adding but now not restricted to the customs package checking, strike, force majeure, etc
four In case there is subject with your order, make sure CONTACT US before leaving destructive suggestions Leaving damaging feedback with out verbal exchange is a contravention of suggestions policy
5 Please leave us message you probably have any question, we will reply in 24 hours, thanks
How to make a decision a correct inverter:
We accpet the customized made inverter for each customer, please depart me a messages of your inverter specifications:
Leave me most of these specs by sending me a message, so that I can make yes of a quick shipping!
1&;s your input voltage?12v or 24v or 36v or 48v or 72v or 110v?
(attention please: only one voltage can be choose! If the input is 48v or 72v, the extra 10% price might be needed, if the enter is 110v, the additional 15% price could be essential If you need remote controller, we'd like more 15 USD contact with me I&;ll replace your price, or you can pay us by means of paypal)2&;s your output voltage? 100v or 110v or 120v or 220v or 230v or 240v?
3&;s your frequency? 50HZ or 60HZ?
4&;s your socket type? please look at the picture I hooked up and make a decision
Enjoy your searching time in our shop!
