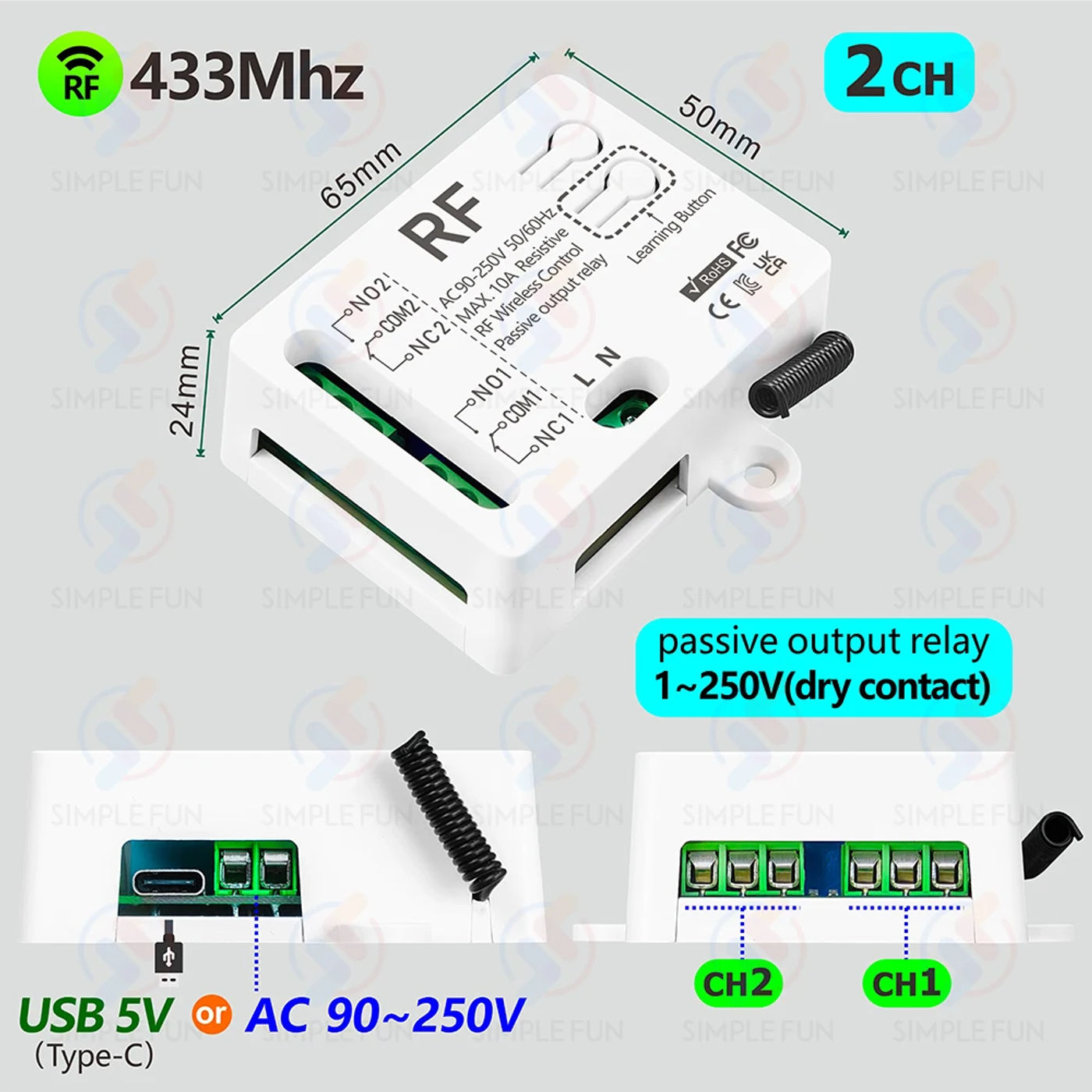

• Note: Hello, in order to meet the needs of different customers, we have establish a number of purchase ideas Please eavesdrop on verify the order to circumvent procuring a unmarried remote control or receiver Thank you 433MHz Wireless Remote Control Light Switch 2 CH,AC 110V 220V RF Relay,500m Control Distance,for Lamp/Motor/Garage Door Opener ▶Relay Receiver Board Parameter Working voltage : AC 90V~250V or USB Type-C 5V-0 Input vlotage : 1~250V Output vlotage : 1~250V Quiescent Current : <5MA Max current : 10A Max load: 2200W RF frequency : 433MHz Pin : NO / COM / NC Working temperature : -30~+80 Celsius Receiving Sensitivity : >97dbm Amount of garage remote controls : 15 pieces Support encoding : 1527 Learning code /2262 fixed code RF Operating mode : ASK superheterodyne wireless reception Receiving range : Open area is more than 500 meters Remote working mode : Momentary Mode/ Toggle Mode/Latched Mode/Mix Mode/Motor Toggle Mode NC:Normally closed pin COM:Common pin NO:Normally open pin ▶Remote controllerParameter RF frequency : 433MHz Control Distance : 500 meters in open area Material : Plastic Support encoding : 1527 Leaning code Battery : 23A 12V included Size:90*40*14 mm ▶Supports 5 operating modes and has a completely big selection of purposes Momentary Mode / Toggle Mode / Latched Mode / Mix Mode / Motor Toggle Mode ●Remote control table lamps\AC or DC LED lights\bulbs\electric curtains\water pumps\fans\ventilation devices\signal transmission ●Remote management garage door\electric door\house door\rolling door\telescopic door\gate\barrier gate ●Remote control motor forward and reverse\motor switch\DIY ▶Examples of utility scenarios: for handheld remote control lights/fan for distant managed motors/garage door opener ▶500 meters control distance: The signal is secure and can go through walls, and the pairing is flexible The handheld remote control distance can attain 500 meters (in an open area) The handheld remote control A button controls channel 1, and the B button controls channel 2 One receiver could be paired with as much as 15 distant controls ▶Wiring diagram Various wiring methods, listed below are four examples you've got any questions, please contact us, we are able to attempt our greatest to answer, thanks ▶Operation Mode ●Momentary Mode: 1 Press and maintain the button"A", relay "1" will flip on; 2 Release the button"A", this relay "1" will turn off In an identical way, the button"B" can control relay"2" Set up: Click learning button on the receiver 1 time,click the button"A" 1 time,click the button"B" 1 time,succeed ●Toggle Mode: 1 Press the button"A", relay "1" will flip on; 2 Press the button"A" again, this relay "1" will turn off In the same way, the button"B" can control relay"2" Set up: Click learning button at the receiver 2 times,click the button"A" 1 time,click the button"B" 1 time,succeed ●Latched mode(This mode calls for a remote control with a minimum of 3 buttons or more): 1 "A" key, relay "1" will flip on; 2 "B" key, relay "2" will turn on, on the same time relay "1" will turn off three "C" key, Both relays "1" and "2" will flip off Set up: Click learning button at the receiver three times,click the button"A" 1 time,click the button"B" 1 time,succeed ●Mix Mode: 1 and maintain the button"A", relay "1" will flip on; Release the button"A", this relay "1" will turn off 1 the button"B", relay "2" will turn on;Press the button"B" again, this relay "2" will turn off Set up: Click learning button at the receiver four time,click the button"A" 1 time,click the button"B" 1 time,succeed ●Motor Toggle Mode: 1 the button"A", relay "1" will flip on, Press the button"B", relay "2" will flip on, at the same time relay "1" will turn off Press the button"B" again, relay "2" will flip off 1 the button"B", relay "2" will turn on, Press the button"A", relay "1" will flip on, at the similar time relay "2" will flip off Press the button"A" again, relay "1" will flip off Set up: Click learning button at the receiver 5 time,click the button"A" 1 time,click the button"B" 1 time,succeed Reset 1 learning button eight times to scrub data,then all remotes can not control this receiver Notice: 1 Reset before you desire to exchange the working mode of 1 handheld remote control 2 After reset, all the distant controls can't paintings anymore three Replace the battery in time when the remote control voltage is low To get the stronger sign transmission If you prefer to buy a number of pieces, please contact us and we are able to have further reductions Please contact with us if in case you have any questions you

•
•
•
•
•
