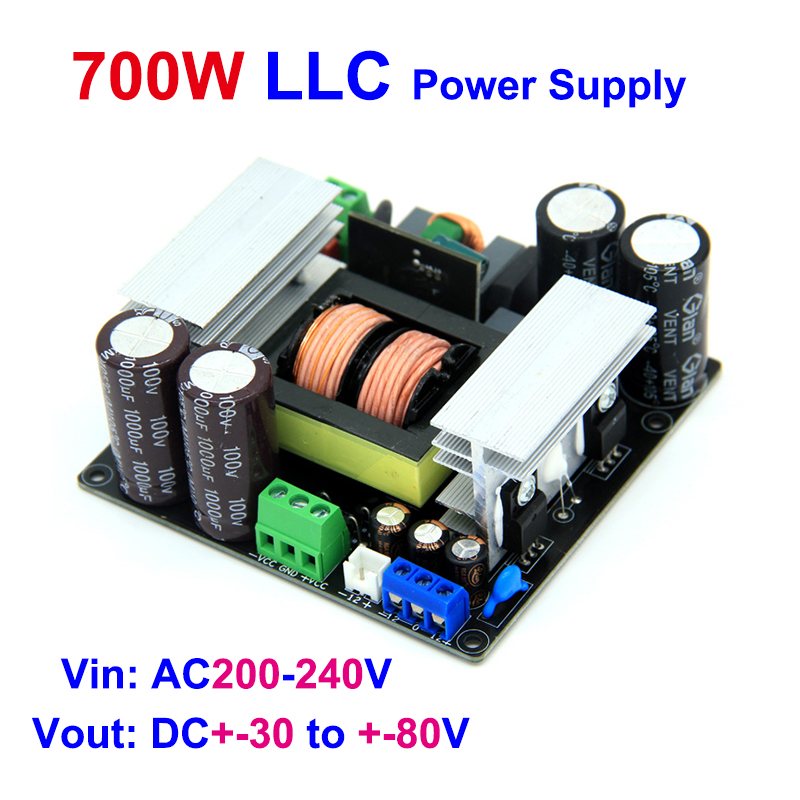

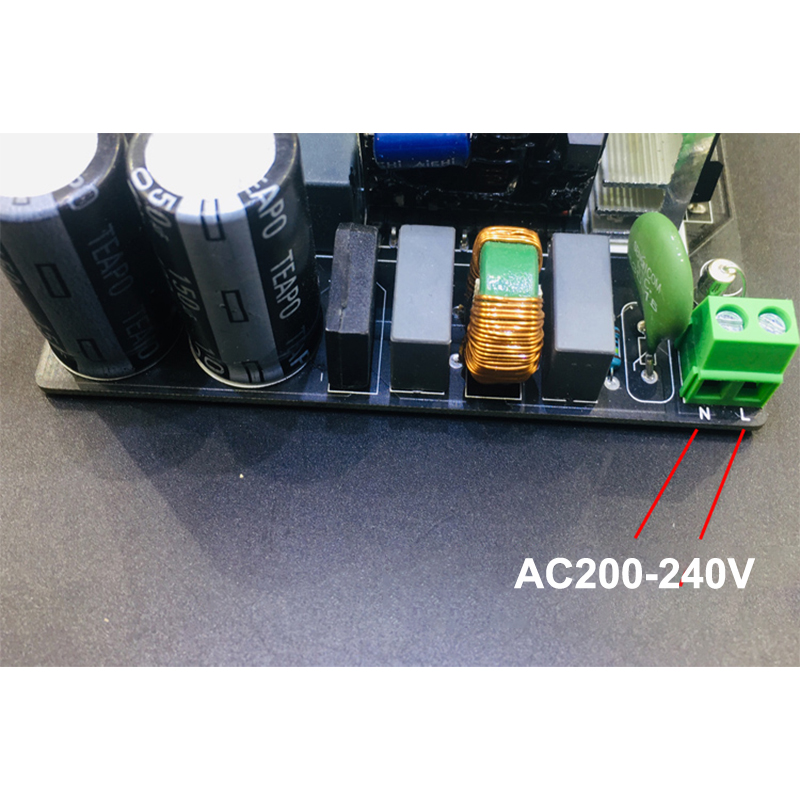

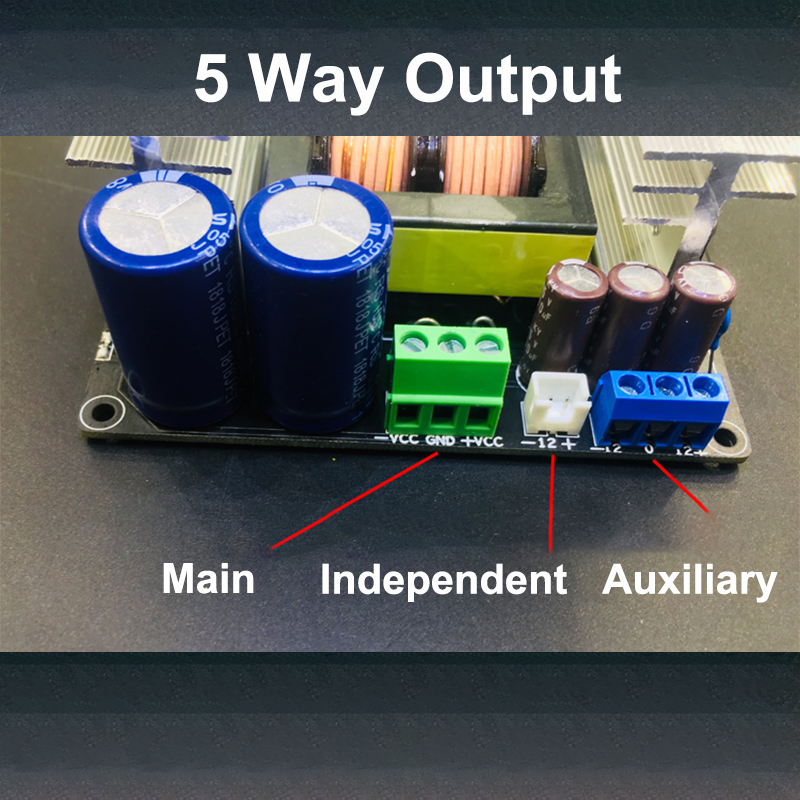

• Optional output voltage: Type A: +-30V & +-11V & 11V Type B: +-35V & +-13V & 13V Type C: +-40V & +-15V & 15V Type D: +-45V & +-17V & 17V Type E: +-50V & +-19V & 19V Type F: +-55V & +-21V & 21V Type G: +-60V & +-14V & 14V Type H: +-65V & +-15V & 15V Type J: +-70V & +-16V & 16V Type K: +-75V & +-17V & 17V Type L: +-80V & +-18V & 18V Specifications: - Input voltage: AC200-240V - Output: main voltage ±55V/6; autonomous 12V/0; auxiliary ±12V/0 (share floor with the key voltage) (auxiliary and self sufficient unregulated, the foremost voltage becomes lower and lower, used in low requirements occasions, corresponding to powering a fan, etc) - Attention: Since the switching power supply solely stabilizes the major voltage, the current of the self sufficient and auxiliary output should be less than the present of the foremost voltage output; for example, the present of the main voltage at the time is 10mA, and the auxiliary and self sustaining cannot deliver plenty above 10MA - Voltage stabilization accuracy: leading no-load ±3%, loaded ±3% (when AC220V input) - Continuous power: 350W (continuous paintings at 25°C ambient temperature) - Rated power: 700W (continuous paintings for approximately five mins at 25°C ambient temperature, long-term paintings plus fan cooling) - Instantaneous power: 900W (power generated throughout dynamic sign impact, time is less than 100 milliseconds) - Conversion efficiency: Max 98% - Dimensions: 96*96*38mm/3 x three x 1" (LxWxH) - Product weight: 310g Packing List: 1* Switching Power Supply NOTE: 1 This product is a bare board with high voltage circuit hazards and must be purchased through someone who can use it Our store will not bear any penalties attributable to use! 2 For advertisement purposes, some circuits and components are polished and encrypted, and schematic diagrams, PCBs, and technical support aren't provided three For long-term high-power use, please upload a fan for air cooling The energy supply is supplied with overheating, overcurrent, and quick circuit protection The overcurrent and quick circuit protection is locked protection, and the key clear out capacitor voltage must be disconnected from the AC power delivery and diminished to 0V earlier than beginning back This power supply is a true LLC energy supply, with a high-frequency sine wave resonant circuit It is not a normal sq. wave switching strength supply, and is awfully suitable to be used in power amplifiers with good results four Each strength delivery is examined before shipment, and our store is not responsible for any burnt transformers, pipes, or ICs If upkeep is required, we will endure all expenses ourselves! The board is consistently upgraded and revised, and the aspect circuit may be changed

•
•
•
•
•
