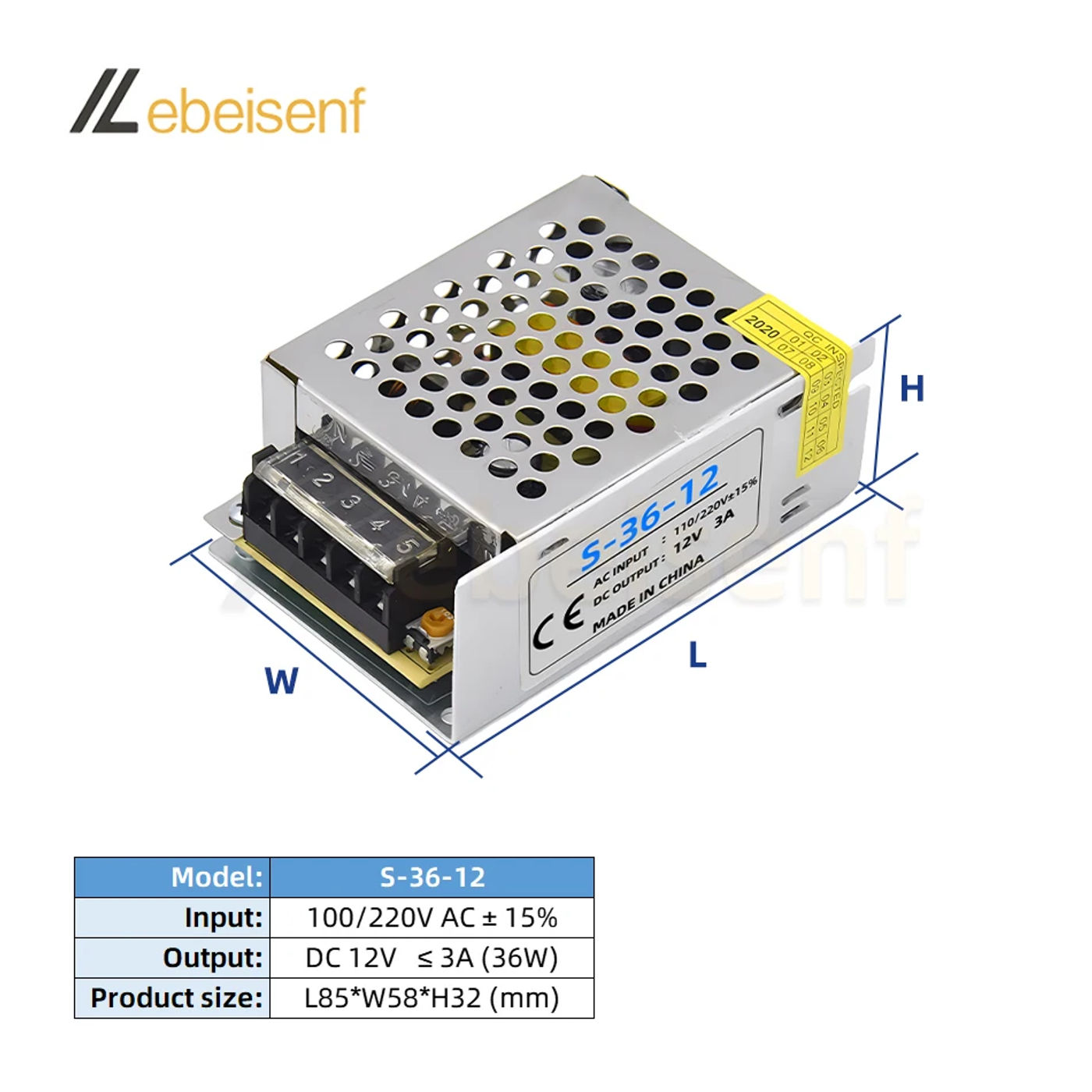

• AC/DC-enclosed SMPS Converter 110-220V AC to DC 12V 3A 36W Switch Mode Power Supply Features: 1 Input voltage range: one hundred ten / 220VAC 2 Low standby energy intake and high efficiency 3 Low ripple noise 4 Output quick circuit, over current, over voltage protection 5 Scope of application: LED, road light control, electricity, security, business control, communication, instrumentation, laboratory, smart home, electric home equipment and different fields Detailed parameters: Product Type： Switch Mode Power Supply Function： AC/DC Converter Modulation method： Pulse width modulation (PWM) type Transistor connection： 1/2 bridge Input voltage： AC 110 - 220V Output power： 36W Output voltage： 12V Output current： 3A Size (mm)： L85*W58*H32 Weight： 100g Work efficiency： 87% Output ripple noise： 120mVp-p Output voltage accuracy： ±1 (%) Voltage adjustment range： 10 (%) Product certification： ce ROHS Protection class： IP20 Working frequency： 47-63HZ Shell material： metallic Scope of application： LED, security, industrial control, motor Working environment temperature： -40℃ to 65℃ Installation method： screw set up Reset method： self-recovery Cooling Type： Free Cooling Output Protection： SCP , OLP, OVP

•
•
•
•
•
