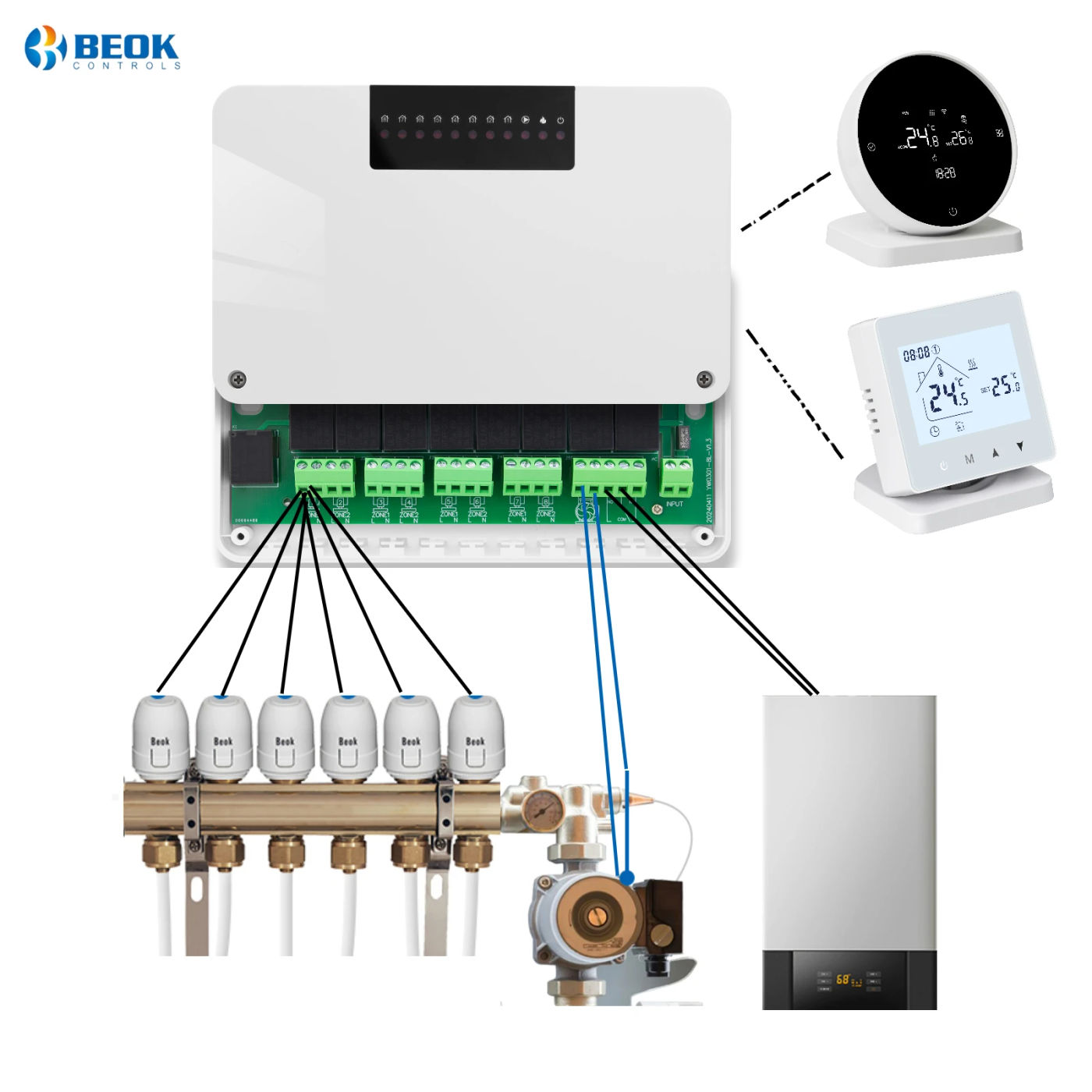

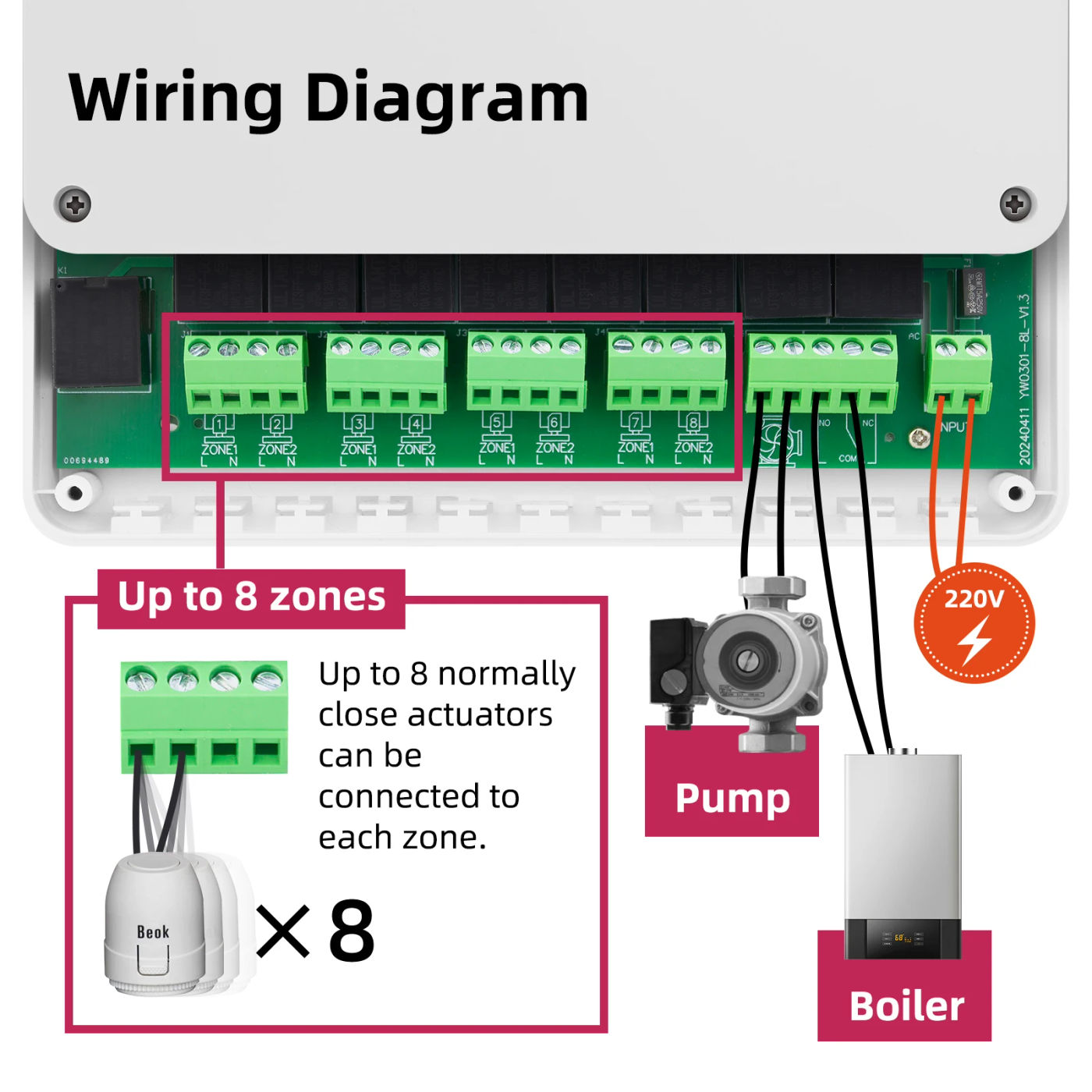

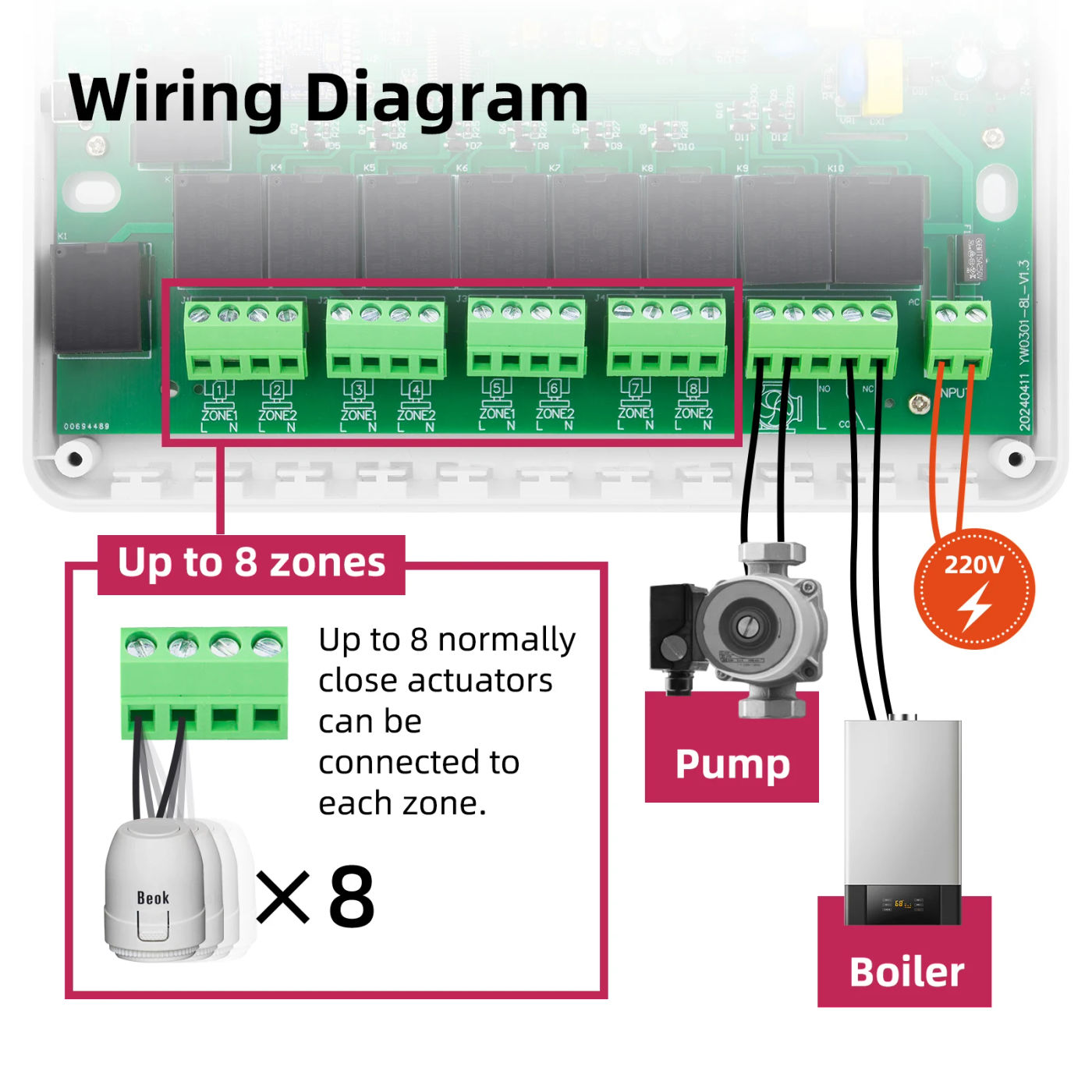

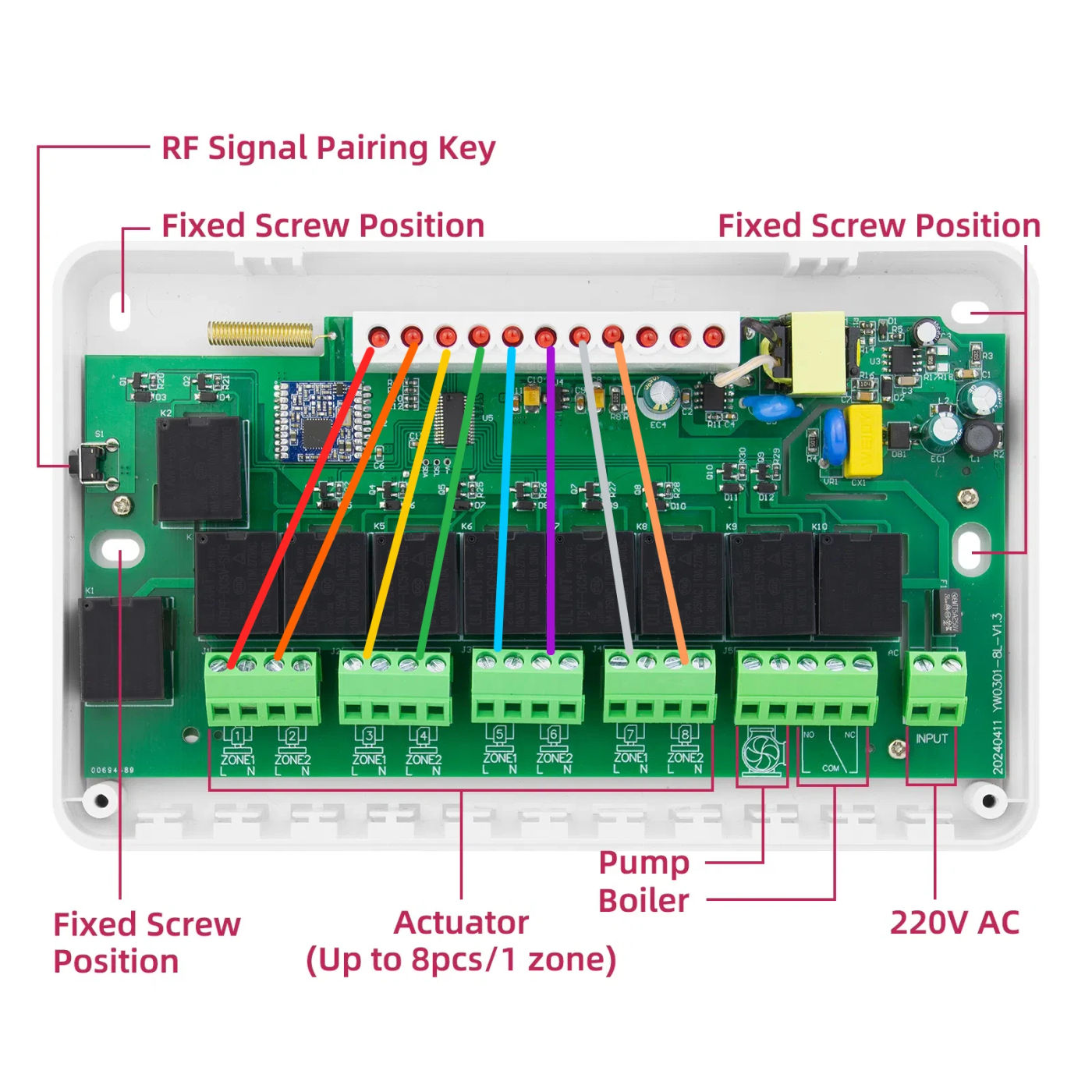

• NOTE: CCT-28-X itself would not have WIFI and calls for a WiFi temperature controller to be related in order to control the whole method by way of WiFi BOT-R6X-NR and BOT-R7X-NR :Only the controller, no receiver, eavesdrop on the model earlier than shopping CONNECT: The indicator lights and areas connected are corresponding If you join the thermostat to the corresponding indicator light, you should connect the actuator to the corresponding discipline Product Description: CCT-28-X Wireless Thermostat Controllers is used in water underfloor heating system It can control zone valves, or boiler thermostats As central management unit, it'll also control boiler and circulating pump According to user’s set temperature, Heating controller can management to open or close boiler, circulating pump and electrical actuators, to realize the purpose of comfort and effort intake saving Connect the thermostat: Up to 8pcs BOT-R7X-NR and BOT-R6X-NR could be connected to 1pcs CCT-28-X Each zone can only be linked to at least one thermostat, yet a thermostat would be connected to as much as 8 zone How many rooms can one CCT-28-X control the temperature of at most? A CCT-28-X can control the temperature of up to eight rooms If you want a number of rooms to have an identical temperature, you only want one temperature controller related to a number of zones on a CCT-28-X If you want to control varied rooms separately, you wish a number of temperature controllers to regulate different rooms separately How many actuators can be linked to a zone? CCT-28-X can only connect usually closed actuators, and a most of eight usually closed actuators could be related in a single zone Wiring diagram: “N, L (INPUT)” connect the 220V AC energy delivery “COM, NO” connection to dry touch boiler (a small portion connected to COM, NC） “Pump” hook up with the water pump "ZONE 1-8" is hooked up to the normally closed actuator The thermostat is hooked up to each zone of CCT-28-X via RF Distance of thermostat controller: The control distance of the thermostat can reach 30 meters when there may be wall obstruction indoors In the absence of obstruction outdoors, the management distance is 200m The that means of each indicator light: LED11: Power indicator mild LED11 remains on when the system is powered on LED10: Boiler output indicator light The mild comes on when the boiler is heated, and goes off when the boiler isn't always heated LED9: Water pump output gentle When the circulation pump is working, the sunshine comes on, and when the flow pump stops working, the light goes out LED1-LED8: Temperature controller output indicator light When the temperature controller shows heating, The LED mild will gentle up; When the thermostat shows no heating, The LED mild will flip off; When the thermostat is pairing, The LED mild will flash Specifications: Power Supply: 220V AC Size:18cm*11cm*4cm Current:max 20mA Wireless frequency: 433MHZ Wireless management distance:30M Working temperature:0-85℃ Pump output delay:5 min Maximum strength of water pump: 1000W Controlled via temperature controller: The CCT-28-X and temperature controller are related wirelessly by way of 433HZ The thermostat can be connected to a cellular phone, which controls the thermostat The thermostat extra sends signals to the CCT-28-X to regulate the operation of the entire method Technical parameters of thermostat: Voltage: 3pcs 1 batteries Temperature hysteresis: ± 0 ℃ WIFI:2 Temperature controller power delivery method: BOT-R6X-WIFI-NR and BOT-R7X-WIFI-NR can either be powered through battery or USB Features of thermostat: 【Programmable】There are three programming modes, and multiple time durations of temperature would be set on weekdays 【APP Control】Connect Tuya and the Smart Life App 【Voice Control】Work with Alexa,Google Home,Alice 【Child Lock】 【Anti-Freeze】

•
•
•
•
•
