This new 6 ports 1S battery charger supports PH2 and BT2 at the identical time Moreover, the charging is quicker when utilizing 30W adapter Compact, fast-charging, and portable, deciding on a 1S battery charger that best suits your desires will not be demanding with this 6 Ports 1S charger & adapter
Bullet Point

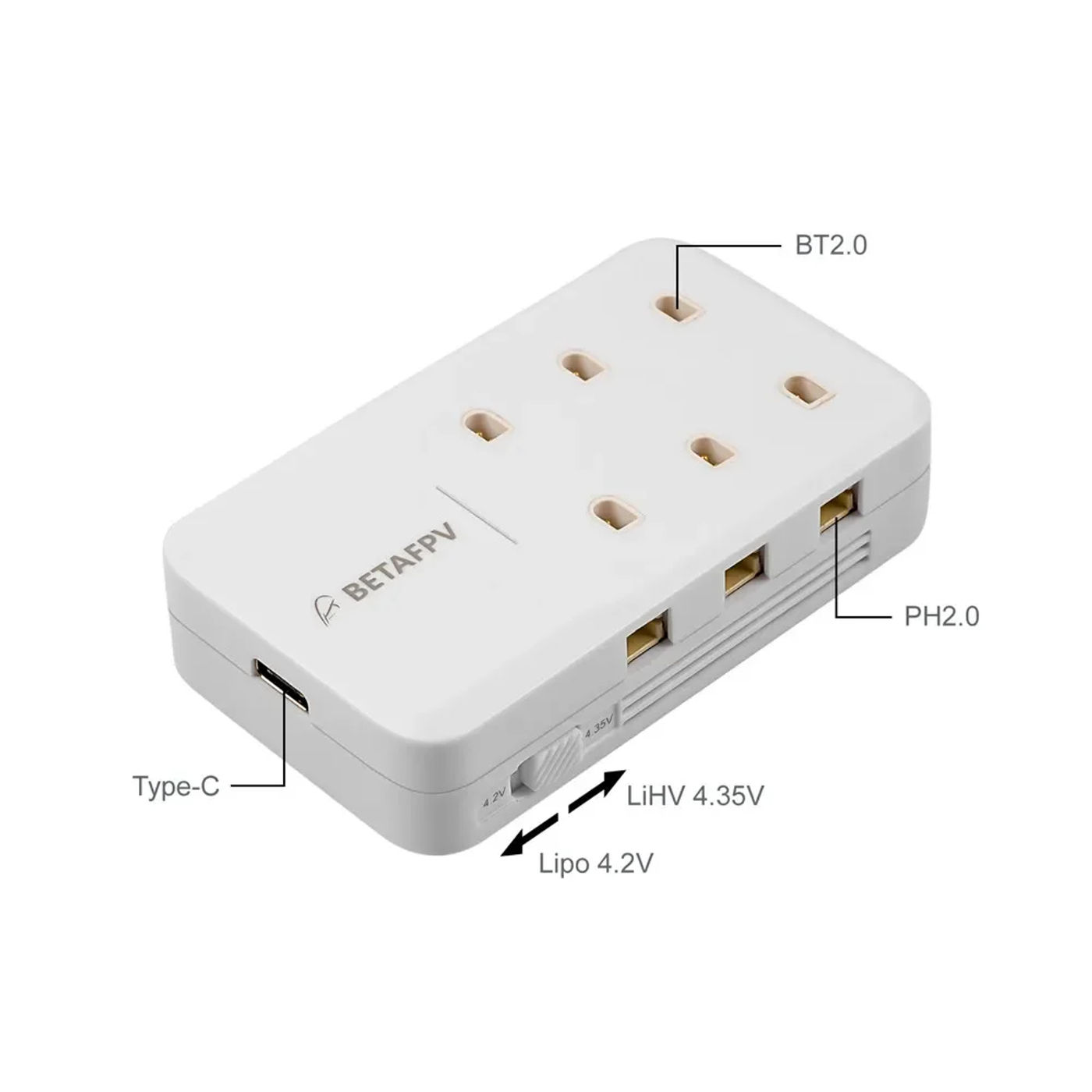

With BT2/PH2 two forms of battery ports, the charger allows charging BT2 and PH2 battery on the similar time
By supporting multi-charging protocols adding PD3/QC3/BC1, every port&;s charging recent can attain 1A, which makes charging faster
This portable 30W Type-C energy adapter affords fast, effective charging at home, or at the move
The power adapter is well matched with any USB‑C-enabled device, you can also pair it with different devices to profit from the fast-charging feature
Both EU and US adapters are supplied for your choice
SPECIFICATION
Item: 6 Ports 1S Battery Charger & Adapter
Input connector: Type-C
Input voltage range: 5-12V
Max enter power: 30W
Max enter current: 2
Max charging current: 1A (Single-port)
Support battery connector: BT2&PH2
Charging protocol:PD3/QC3 (5V/9V/12V) /BC1
Battery Type:Lipo 4/LiHV four
Dimensions:79*46*19mm
Support Fast Charge
The 30W energy adapter helps multi-charging protocols adding PD3 /QC3/ BC1, geared up with 6 ports 1S battery charger with a maximum charging current of 1A, which makes charging faster 6pcs BT2 300mAh 1S batteries would be solely charged in about 25 mins
The charging time could be longer with quick price adapter with output power below 30W or a non-fast charger adapter (5V@2A) since every single port can't attain 1A when 6 ports are charged concurrently
Button Function
The operate of the button is to change the charge voltage: 4/4

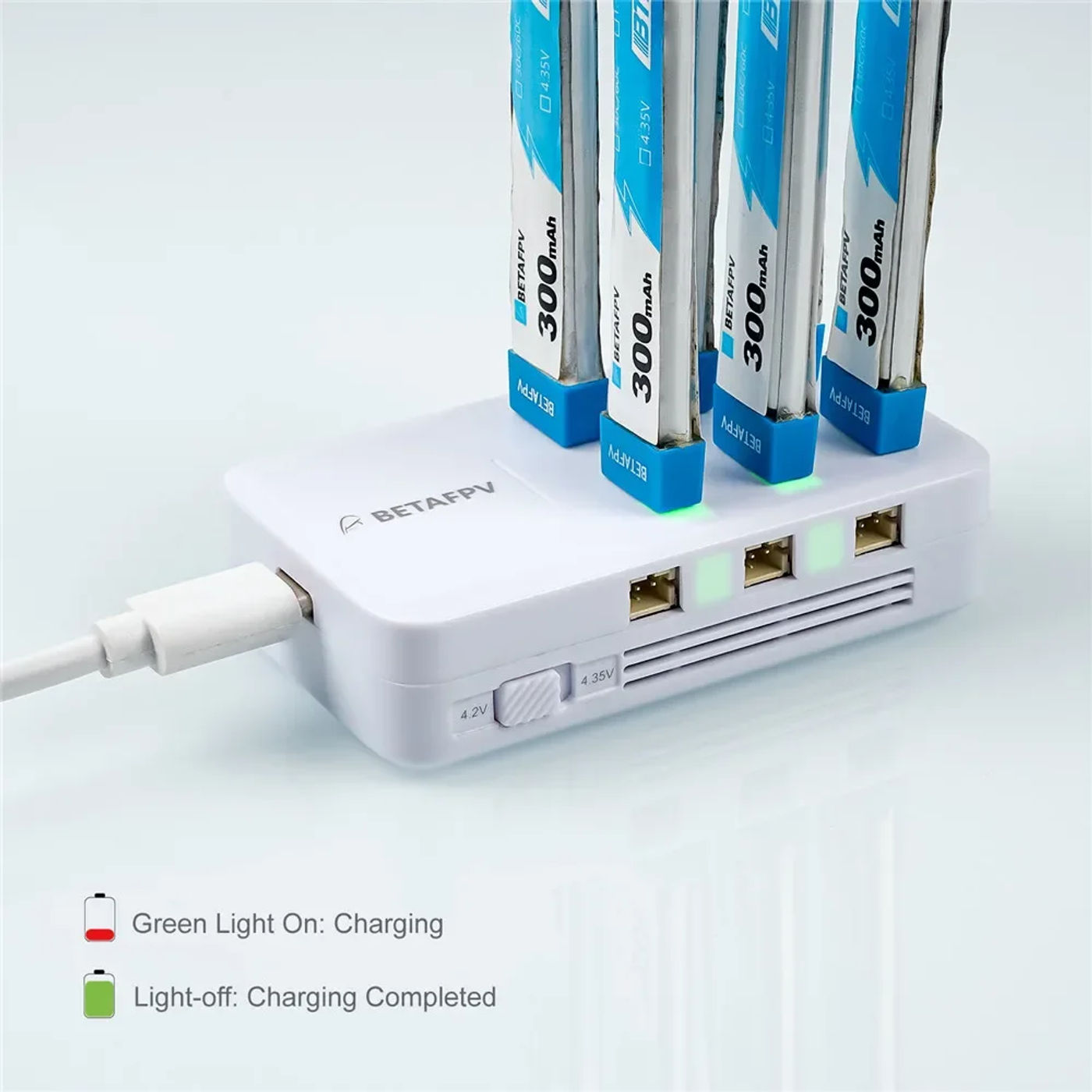

Indicator Light Status
LED lighting indicate when charging popularity of each battery Greenlight indicates charging, gentle off when completely charged
Light repute
Description
Greenlight flash
No battery detected
Greenlight on
Charging
Light-off
Charging accomplished
Note: If the indicator mild is off when there isn't any battery in the output port, indicating that this line is faulty and can't be used
FAQEach port has a Ph2 & BT2 connector, please DO NOT fee 2 batteries in one port at the same time Otherwise, the battery existence will be decreased or the battery might be broken
1 * 6 Ports 1S Battery Charger
1 * User manual
OR
1 * 6 Ports 1S Battery Charger
1 * EU/USA Power Adapter
1 * Type-C to Type-C cable
1 * User handbook
