説明

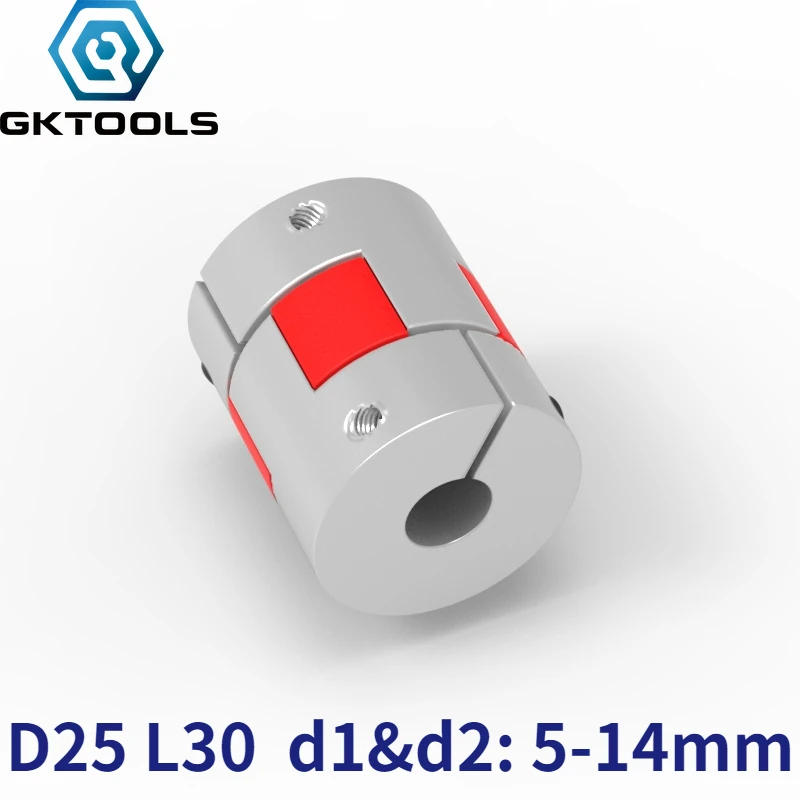

• XB Couplings Model d1 d2 D L L1 L2 L3 M Wrench Torque(N.m) XB14X22 3, 3.17, 4, 5, 6, 6.35 3, 3.17, 4, 5, 6, 6.35, eight 14 22 7 6 3.5 M2.5 1.0 XB20X25 6, 6.35,7, 7.5, 8, 9, 9.5, 10, 10.5 6.35, 7, 8, 9, 9.5, 10, 10.5 20 25 10 8 eight M3 1.3 XB20X25 3, 3.17, 4, five 3, 3.17, 4, 5, 6, 7, 8, 9, 9.5, 10 20 25 10 8 5 M3 1.3 XB20X25Black-Red 5, 6, 8, nine 5, 6, 8, nine 20 25 10 eight 5 M3 1.3 XB20X25Black-Blue 5, 6, 8, nine 5, 6, 8, nine 20 25 10 eight 5 M3 1.3 XB20X25-Blue 3, 3.17, 4, 5, 6 3, 3.17, 4, 5, 6, 7, 8, 9, 9.5, 10 20 25 10 eight 5 M3 1.3 XB20X25-Blue 6, 6.35, 7, 8, 9, 10 6.35, 7, 8, 9, 9.5, 10 20 25 10 8 5 M3 1.3 XB20X30 3, 3.17, 4, 5, 6 3, 3.17, 4, 5, 6, 6.35, 7, 8, 9, 10 20 30 10 8 5 M3 1.3 XB20X30 6.35, 7, 8, 9, 10 6.35, 7, 8, 9, 10 20 30 10 eight 5 M3 1.3 XB20X30-Blue 3, 3.17, 4, 5, 6 3.17, 4, 5, 6, 6.35, 7, 8, 9, 9.5, 10 20 30 10 8 five M3 1.3 XB20X30-Blue 6, 6.35, 7, 8, 9, 10 6.35, 7, 8, 9, 10 20 30 10 eight 5 M3 1.3 XB25X30 3, 4, 5, 6 3, 4, 5, 6, 6.35, 7, 8, 9, 10, 11, 12, 12.7 25 30 10 8 five M3 1.3 XB25X30 6, 6.35, 7, 8, 9, 10, 11, 12, 12.7 6.35, 7, 8, 9, 10, 11, 12, 12.7 25 30 10 eight 5 M3 1.3 XB25X35 8, 10, 12 8, 10, 12 25 35 10 8 five M3 1.3 XB30X35 5, 6, 6.35, 7 5, 6, 6.35, 7, 8, 9.5, 10, 11, 12, 12.7 30 35 eleven 13 5 M4 1.7 XB30X35 7, 8, 9.5, 10, 11, 12, 12.7 8, 9.5, 10, 11, 12, 12.7, 14, 16 30 35 eleven 13 five M4 1.7 XB30X35with Keyway 10 12 30 35 eleven 13 5 M4 1.7 XB30X40 3, 4, 5 3, 4, 5 ,6, 6.35, 7, 8, 9, 9.5, 10, 11, 12, 12.7, 13, 14, 15, 16 30 forty eleven thirteen 5 M4 1.7 XB30X40 5, 6, 6.35, 7 6.35, 7, 8, 9, 9.5 10, 11, 12, 12.713, 14, 15, sixteen 30 40 11 thirteen five M4 1.7 XB30X40 7, 8, 9, 9.5 8, 9, 9.5, 10, 11, 12, 12.7, 13, 14, 15, sixteen 30 40 11 13 five M4 1.7 XB30X40 10, 11, 12, 12.7, 13, 14, 15, 16 10, 11, 12, 12.7, 13, 14, 15, sixteen 30 forty eleven thirteen five M4 1.7 XB30X40Black-Red 14 14 30 forty 11 13 five M4 1.7 XB35X40 10 19 35 forty 11 thirteen 5 M4 1.7 XB35X50 10,19 10,19 35 50 11 13 five M4 1.7 XB40X45 8 eight forty 45 25 16 10 M5 7 XB40x50 8, 9, 10, 12, 14 8, 9, 10, 12, 14, 15, 16, 19, 20, 22  forty 50 25 sixteen 10 M5 7 XB40X50 14, 15, 16, 19, 20, 22 15, 16, 19, 20, 22 forty 50 25 sixteen 10 M5 7 XB40x55 8, 12, 14, 15, 16, 18, 19, 22 8, 12, 14, 15, 16, 19, 22 40 55 25 16 10 M5 7 XB40x65 10, 12, 12.7, 14, 15 10, 12, 12.7, 14, 15, 16, 17, 18, 19, 20, 24  40 65 25 sixteen 10 M5 7 XB40X65 15, 16, 17, 18, 19, 20, 24 16, 17, 18, 19, 20, 24 forty 65 25 16 10 M5 7 XB55x80 14, 16, 25 14, 16, 25 fifty five 80 30 18 10.5 M6 8 XB65x90 16, 25 16, 30 sixty five ninety 35 20 11.5 M8 15 XB65X90 14, 18, 19, 25, 30 14, 18, 19, 25, 30 sixty five ninety 35 20 11.5 M8 15

•
•
•
•
•
